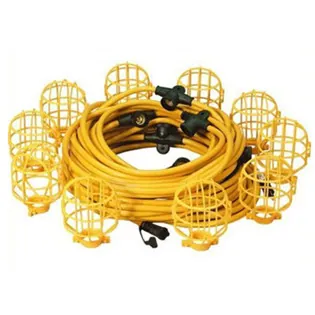

100FT With Plastic Lampguard
Temporary lighting strings provide work light on a construction site before permanent lighting is installed. Each string carries a series of lamp holders with plastic lamp guards, and the whole assembly is built on jacketed cable so it can be strung, moved and re-hung repeatedly.
| Model No | LS-100 |
|---|---|
| Plug type | NEMA 1-15 / NEMA 5-15 / NEMA 5-20 NEMA L5-15 / NEMA L5-20 |
| Rating of each lamp | 125V,150W |
| Length | 100FT |
| Number of lamps | 10pcs |
| Cable gauge and type | 20A,125V~ 12AWG/3C ~10AWG/3C SJTW/SJTOW/SJTOOW STW/STOW/STOOW ,SW/SOW/SOOW ,SW/SOW/SOOW ,SEW/SEOW/SEOOW 15A,125V~ 14AWG/3C~12AWG/3C ~10AWG/3C SJTW/SJTOW/SJTOOW STW/STOW/STOOW ,SW/SOW/SOOW ,SW/SOW/SOOW ,SEW/SEOW/SEOOW |
| Approval | UL/CUL |
Cord length, cable gauge and type, jacket colour and the connector at the appliance end are set per order. Complete OEM services are available.
Who It Is For
- Construction contractors lighting a site or a floor
- Rental companies supplying temporary site power and light
- Industrial maintenance teams working in unlit plant
- Distributors serving the construction trade
Problems It Solves
- Plastic lamp guards protect the lamp from knocks during the job
- W rated jacketed cable stands up to outdoor and damp conditions
- Locking plug options keep the string energised when the cable is moved
- Five and ten lamp lengths cover both small rooms and long runs
Where It Is Used
- Building sites and shell floors
- Tunnels, basements and plant rooms
- Shipyards and maintenance work
- Event and temporary structures
How It Is Made
The plug is moulded directly onto the cable on our own tooling, so there is no screw joint and no field wiring. The company runs first class producing equipment and advanced mould processing equipment, and quality control is applied at each stage rather than only at the end.
The 50 ft string carries five lamps and the 100 ft string carries ten, each lamp rated 125 V 150 W. Strings are fitted with NEMA 1-15, 5-15, 5-20, L5-15 or L5-20 plugs and built on 14, 12 or 10 AWG three-conductor W rated cable, approved to UL and cUL.
How we control qualityCustomisation Options
- Cord length to your drawing rather than a fixed catalogue length
- Cable gauge, conductor count and jacket type selected against the load and environment
- Jacket colour and printed marking on request
- Appliance end supplied as an IEC connector, a moulded outlet, ring terminals or stripped and tinned leads
- Retail or bulk packing, with your own artwork where required
Products are RoHS compliant and carry international approvals including UL, cUL, VDE, SAA, BSI, IMQ depending on the destination market. See the certificates.
2004
Exporting since
20+
International approvals
3–4 weeks
Delivery time
12 hours
Enquiry response
Related Products in Temporary Lighting Strings
Questions About Temporary Lighting Strings
How many lamps are on a string?
The 50 ft string carries five lamps and the 100 ft string carries ten.
What lamp rating is used?
Each lamp position is rated 125 V 150 W.
Which plug can be fitted?
NEMA 1-15, 5-15 and 5-20 straight-blade plugs, or L5-15 and L5-20 locking plugs.
Are the strings approved?
Yes, they are produced to UL and cUL approval.
Ask About 100FT With Plastic Lampguard
Tell us the quantity, the cable and the length. A quotation follows within twelve hours.
