Quality Control
A cord set fails in the field at the joint, at the strain relief or at the insulation. Our inspection is built around those three places.
From Material to Carton
- 1. Incoming materialBrass pins, resin, cable and connectors are checked against the specification before they reach the moulding line. For plug inserts this includes the brass grade and the resin content stated on the part.
- 2. MouldingPlug bodies are moulded directly onto the cable so there is no screw joint. Surfaces are checked for air holes, shrink holes, burrs and cracks.
- 3. Electrical testContinuity and polarity are verified, and dielectric withstand is applied at the voltage the specification calls for. Our Swiss plug insert, for example, must not be punctured at 2700 V held for five seconds.
- 4. Flame behaviourMaterials used in the plug body are specified to self-extinguish, with the flame going out on its own within thirty seconds on the Swiss insert specification.
- 5. Final inspection and packingLength, marking, connector fit and appearance are checked before the cords are packed to the agreed format.
What We Can Document

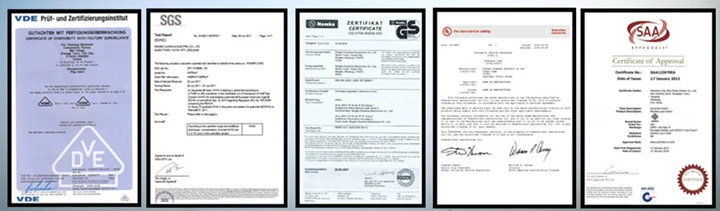

- Approval references covering the plug, cable and connector combination you order
- RoHS compliance across the product range
- Material specifications for plug inserts, including brass grade and resin content
- Dielectric and flame requirements as stated on the component specification
See all approvals
Frequently Asked Questions
What equipment do you run?
First class producing equipment and advanced mould processing equipment. The moulds for our plug bodies are made and maintained in-house.
How strict is your quality control?
The company is very strict in quality control, and inspection is applied through the process rather than only on the finished carton.
Are the products RoHS compliant?
Yes. All of our products are strictly compliant with the RoHS directive.
Can you supply test reports?
Tell us which construction you need covered and we will send the approval reference and available reports.
Ask for the Documentation
Tell us the construction and the market and we will send what covers it.
