What to Check Before Buying Rental LED Cabinets
Before ordering rental LED cabinets, confirm the mounting method, venue access, load capacity of the structure, and whether the space allows for curved or flat installations. MASTARLED rental series A, K, H, U, X and V are designed for fast deployment and reconfiguration across events, but their performance depends on correct site preparation.
Cabinet Size and Weight Per Square Metre
All MASTARLED rental series use standard cabinet sizes of 500x500mm or 500x1000mm. The weight ranges from 26 to 28kg per square metre, depending on the series. This affects rigging load calculations and transport logistics, especially for truss-mounted or suspended installations.
See the Rental LED Screen K Series specification for the figures quoted above.

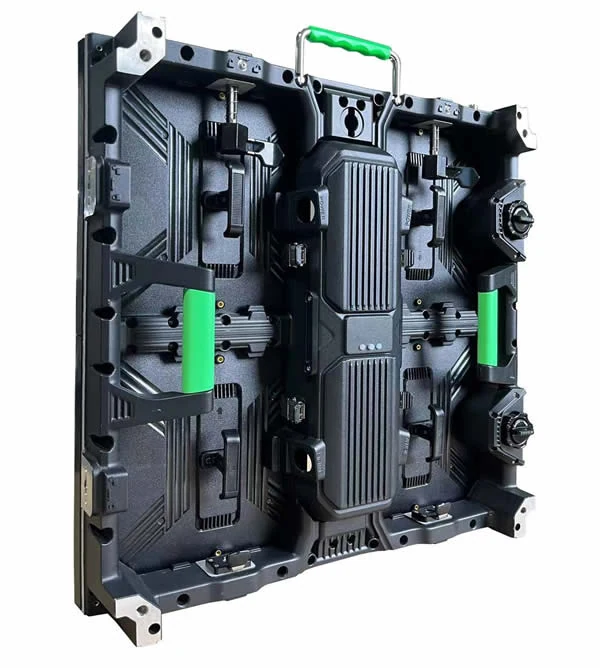

Tool-Free Installation and Fast Lock Mechanism
All rental cabinets feature tool-free installation with a fast lock system and high precision positioning. Modules align without shimming or adjustment tools, reducing setup time at venues and minimizing errors during on-site assembly.
Front and Rear Access for Maintenance
Rental cabinets allow both front and rear access, which is essential for touring crews. If the back of the screen is not accessible at a venue, the front access enables quick module replacement without repositioning the entire structure.
Angle Adjustment for Curved and Floor Screens
The cabinets support angle adjustment for concave and convex curves, as well as floor-standing configurations. This allows a single fleet to be used in multiple event types, from stage backdrops to floor displays, without requiring custom parts.
Hanging and Support Options
Each cabinet includes a hanging structure compatible with truss mounting and ground support. Handles are designed for fast rigging, and the die-cast aluminium construction ensures rigidity under load during transport and installation.
Heat Dissipation and Module Quality
The cabinets feature excellent heat dissipation to maintain stable operation during long event runs. High quality black LED lamp modules reduce glare and improve contrast, which is critical for visible performance under stage lighting.
