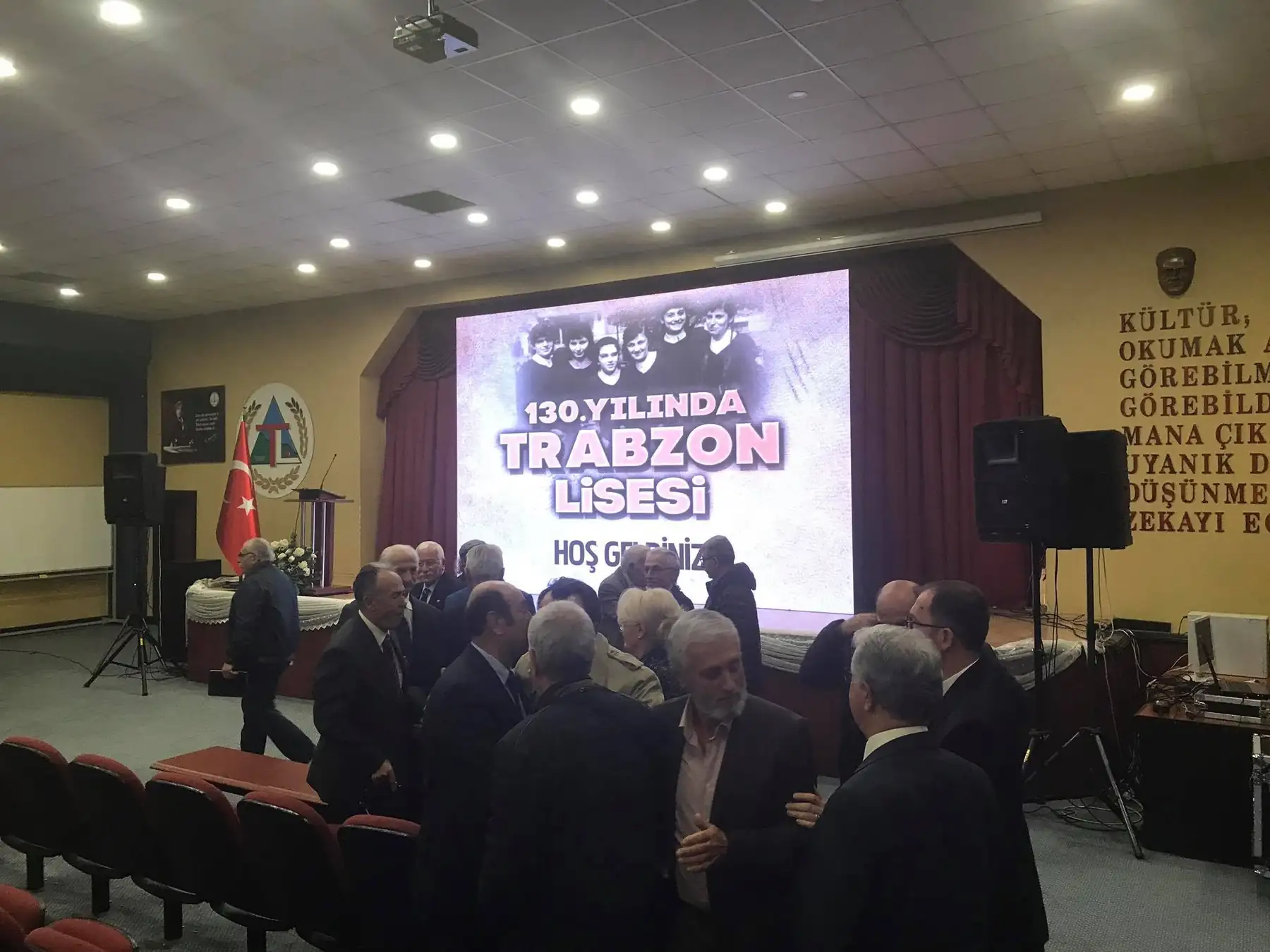

33sqm Indoor Fixed LED Screen in Turkey

6.144x5.376m, 33sqm · Model MSR-IFB-4 · Turkey · Delivered 2016

Product Model	MSR-IFB-4
Screen Size	6.144x5.376m, 33sqm
Location	Turkey
Delivered	2016
Product Supplied	Indoor Fixed With High Definition
Sector	Retail and Shopping Malls

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: a 33sqm indoor fixed LED wall supplied on MSR-IFB-4 cabinets for a permanent installation in Turkey in 2016. A wall of this size on fixed cabinets is bought by a corporate or government conference room operator, retail chain, or AV integrator installing a permanent display.

Challenge

The Project Challenge

Install a 33sqm indoor fixed LED wall in a space where rear access is not available, requiring a front maintenance design, and where the screen must deliver high definition with no visible seams or brightness variation across the surface.

Pain Points

Customer Pain Points

Rear access is not available in the installation space, so front maintenance is required
A 33sqm wall must be built with cabinets that align precisely without shimming or tools
High definition at 1.25mm pixel pitch demands consistent module quality and cabinet flatness
The wall must be lightweight and slim to reduce structural load and save space
Cabinets must be cableless and structurally linked to avoid visible gaps or misalignment

Solution

Our Solution

The wall was supplied on MSR-IFB-4 indoor fixed cabinets with a front maintenance design, 58mm ultra-thin aluminium cabinet, and 6kg per cabinet weight. Cabinets feature structural hard link and cableless design for fast, tool-free assembly. The 1.25mm pixel pitch provides high definition for indoor use, and the 640x480mm aluminium die-cast cabinet ensures rigidity and flatness.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly with flatness alignment on the assembling line
Screen installation test with cabinets built up as a wall
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed with spare modules, receiving cards, and power supplies to allow immediate field replacement without waiting for a second shipment.

Testing

Quality Control

Modules passed soldering inspection and an ageing test. Cabinets were assembled and built into a wall in the factory for a screen installation test and a screen ageing test, ensuring brightness and colour consistency across all cabinets before shipment.

Result

Final Result

Documented delivery: 33sqm of MSR-IFB-4 indoor fixed LED screen, supplied for a permanent installation in Turkey in 2016.

Benefit

Customer Benefit

Front maintenance design eliminates the need for rear access, and the cableless, structural hard link system allows fast, tool-free installation with no visible seams. The 1.25mm pixel pitch delivers high definition, and the ultra-thin 58mm cabinet reduces space and structural load.
