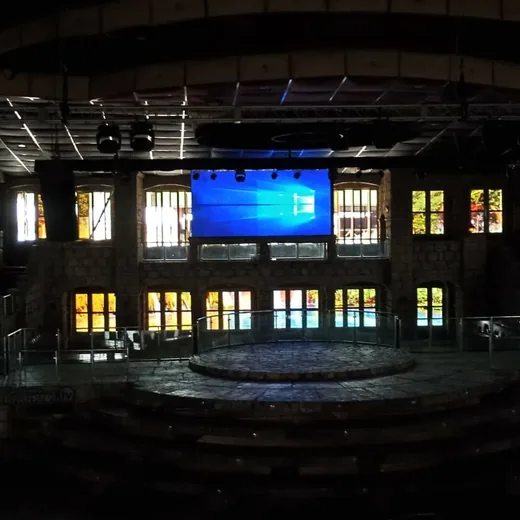

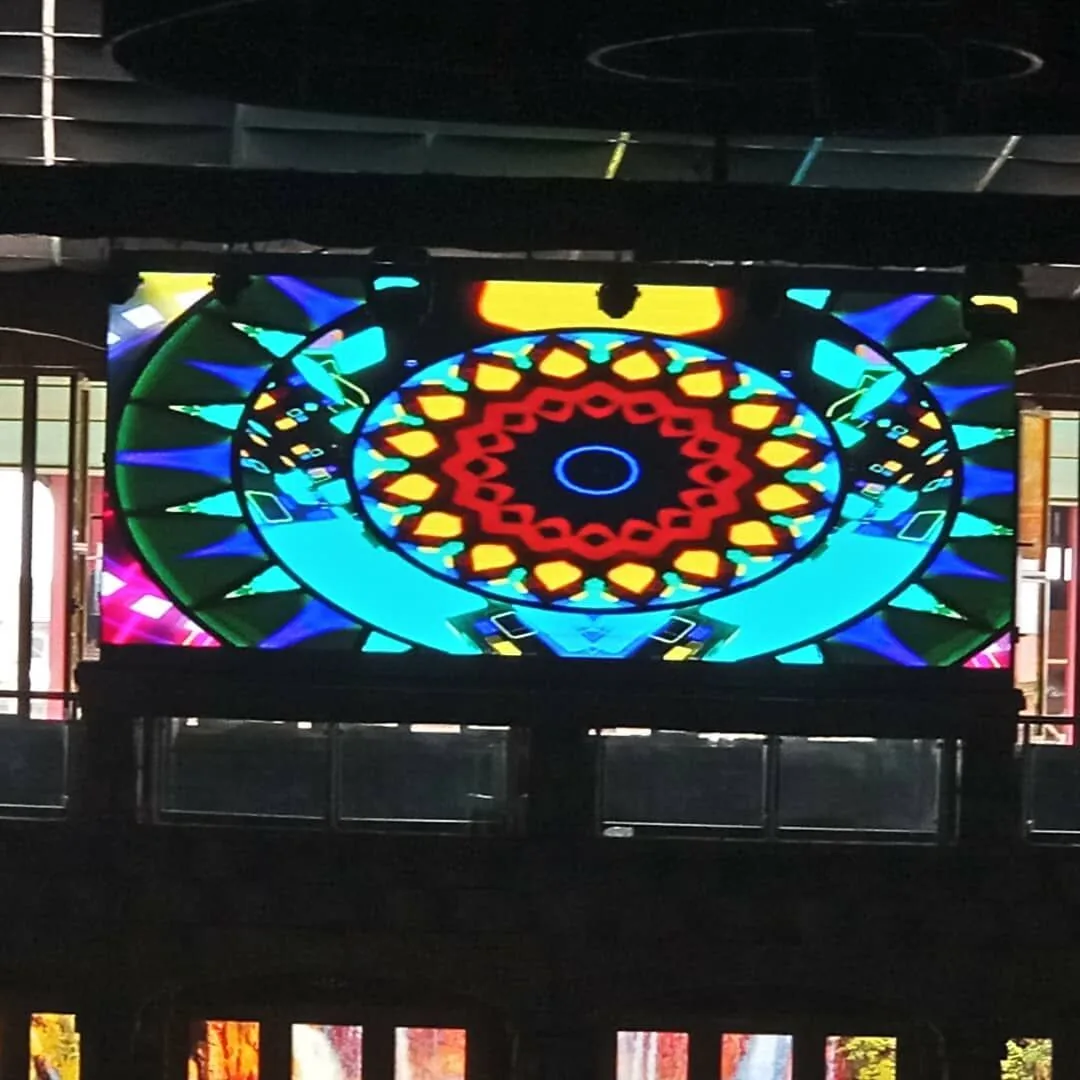

18.9sqm Indoor Fixed LED Screen in Lagos Nigeria

6.14x3.072m, 18.9sqm · Model MSR-IFB-3 · Lagos, Nigeria · Delivered May 2018

Product Model	MSR-IFB-3
Screen Size	6.14x3.072m, 18.9sqm
Location	Lagos, Nigeria
Delivered	May 2018
Product Supplied	Block Indoor Series
Sector	Retail and Shopping Malls

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: an 18.9sqm indoor fixed LED wall supplied on MSR-IFB-3 cabinets for a permanent installation in Lagos, Nigeria, delivered in May 2018. A wall of this size on fixed cabinets is bought by a corporate or government conference room, retail chain, or AV integrator installing a permanent display.

Challenge

The Project Challenge

Install a 18.9sqm indoor LED wall in a permanent setting with no rear access, requiring a cabinet design that allows full service from the front while maintaining a flush, seamless appearance and stable thermal performance over time.

Pain Points

Customer Pain Points

The screen is mounted against a wall with no rear access, so rear service is not possible
A permanent indoor wall must maintain consistent brightness and colour without visible seams over long periods
Heat buildup in a fixed indoor cabinet can degrade LED performance if not properly dissipated
The cabinet must be solid and stable to avoid warping or misalignment during long-term use

Solution

Our Solution

The wall was supplied on MSR-IFB-3 block indoor cabinets with a solid metal cabinet structure, high quality black LED lamp modules, and a profiled metal design that enables fine heat extraction. The cabinets support rear service access via a removable rear panel, allowing full module replacement and maintenance without removing the entire screen from the wall.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly with flatness alignment and heat extraction profiling
Screen installation test with cabinets built up as a wall in the factory
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed with spare modules, receiving cards, and power supplies to ensure the integrator had field spares immediately upon delivery, avoiding delays during installation or future maintenance.

Testing

Quality Control

Modules passed soldering inspection and an ageing test. Cabinets were assembled and built into a wall in the factory for a screen installation test and a screen ageing test, which ensures brightness and colour consistency across all cabinets before shipment.

Result

Final Result

Documented delivery: 18.9sqm of MSR-IFB-3 indoor fixed LED screen, supplied for Lagos, Nigeria, in May 2018.

Benefit

Customer Benefit

The solid metal cabinet with fine heat extraction performance ensures long-term stability in a fixed indoor environment, and rear service access allows full maintenance without removing the screen from the wall.
