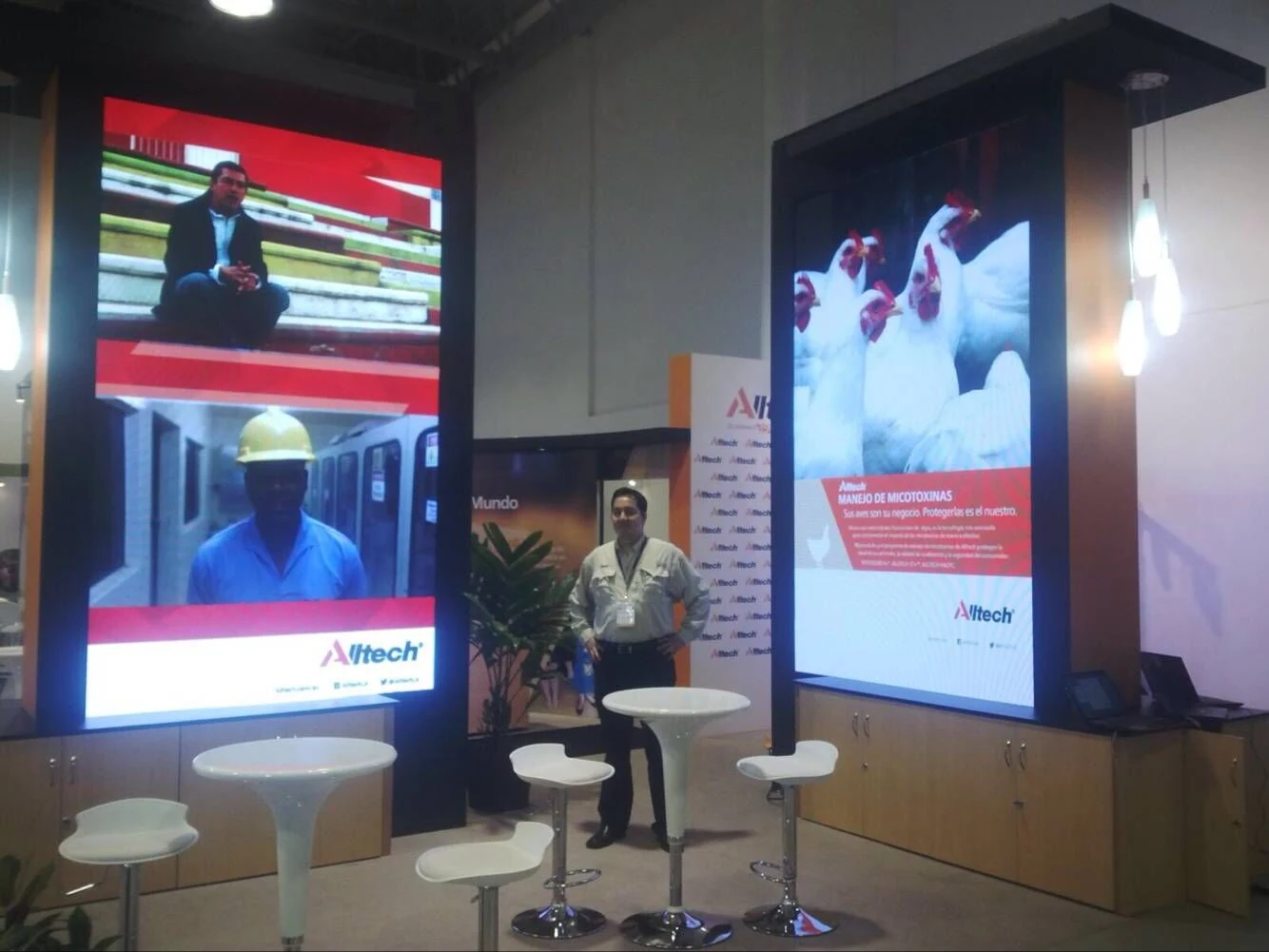

19.66sqm Indoor Fixed LED Screen in Ecuador

5.12x3.84m, 19.66sqm · Model MSR-IFB-5 · Ecuador · Delivered 2015

Product Model	MSR-IFB-5
Screen Size	5.12x3.84m, 19.66sqm
Location	Ecuador
Delivered	2015
Product Supplied	Block Indoor Series
Sector	Retail and Shopping Malls

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: a 19.66sqm indoor fixed LED wall supplied on MSR-IFB-5 cabinets for a permanent installation in Ecuador in 2015. A wall of this size on fixed cabinets is bought by a corporate or government conference room operator rather than a rental company.

Challenge

The Project Challenge

Install a 19.66sqm indoor LED wall in a fixed location where the screen is mounted against a wall with no rear access, requiring a cabinet design that allows service from the front or rear without removing the entire wall.

Pain Points

Customer Pain Points

The screen is mounted against a wall with no rear access, so rear service is not possible without removing the entire wall
A fixed installation must remain stable and aligned over time without adjustment
Heat buildup in a confined indoor space can degrade module performance if not managed
The screen must maintain consistent brightness and colour across all cabinets without visible seams

Solution

Our Solution

The wall was supplied on MSR-IFB-5 block indoor cabinets with a solid metal cabinet profile, fine heat extraction performance, and rear service access. The cabinets are designed for indoor fixed use with a 3/4/5/6mm pixel pitch, and the high quality black LED lamp modules ensure consistent visual output across the entire surface.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly with flatness alignment and heat extraction structure
Screen installation test with the cabinets built up as a wall
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed with spare modules, receiving cards, and power supplies to ensure the site team had field spares available from the first day of operation.

Testing

Quality Control

Modules passed soldering inspection and an ageing test. The cabinets were built up as a wall in the factory for a screen installation test and a screen ageing test, which ensures brightness and colour consistency across all cabinets before shipment.

Result

Final Result

Documented delivery: 19.66sqm of MSR-IFB-5 indoor fixed LED screen, supplied for a permanent installation in Ecuador in 2015.

Benefit

Customer Benefit

Rear service access allows maintenance without removing the wall, and factory-matched cabinets ensure no visible brightness or colour steps when modules are replaced.
