SF-20W Fiber Laser Marking Machine

Name: SF-20W Fiber Laser Marking Machine
Brand: Dotcoding

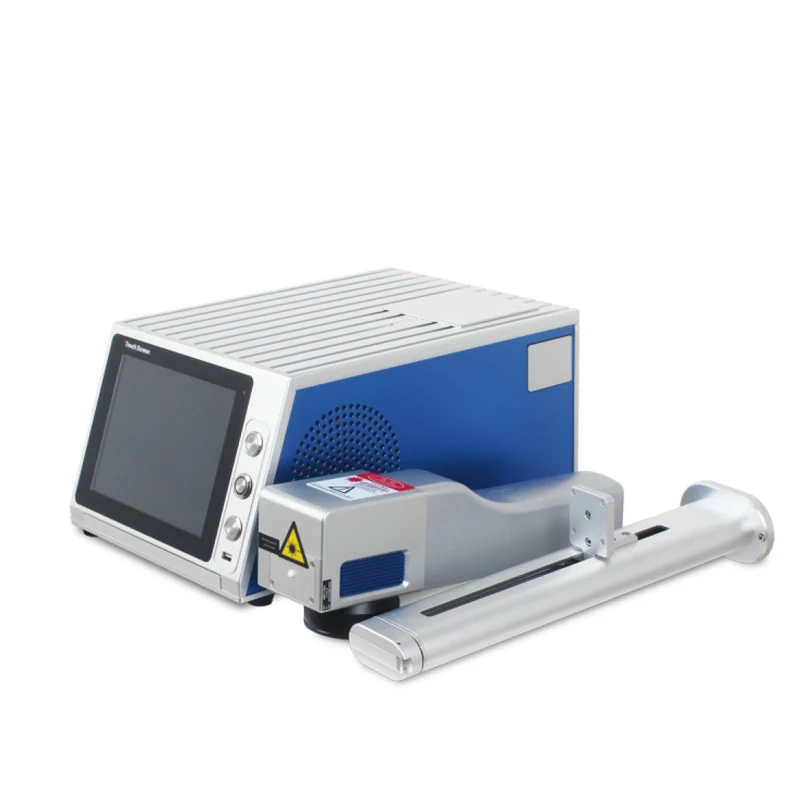

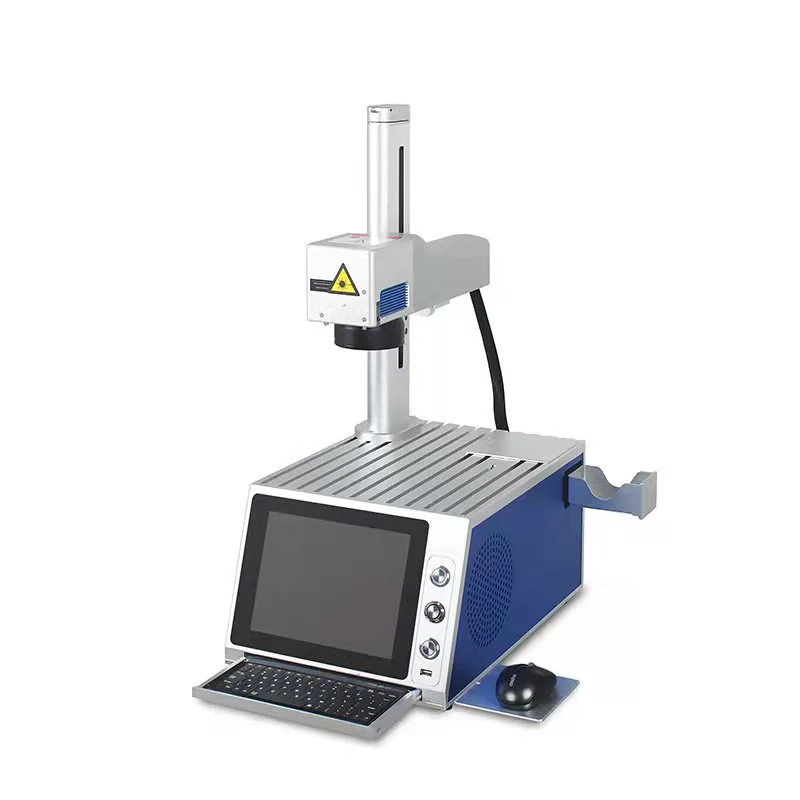

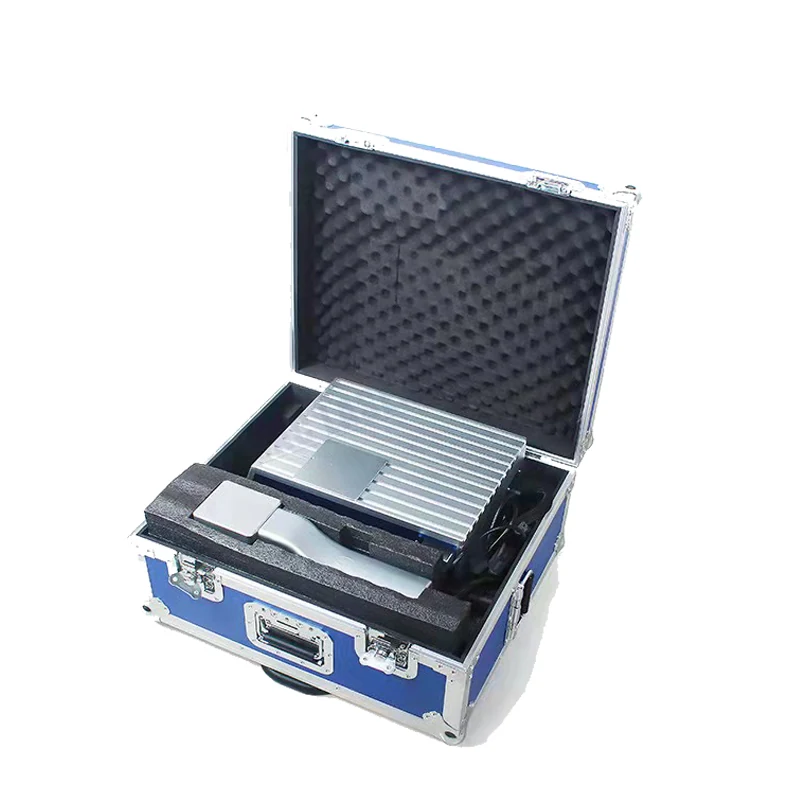

SF-20W is a desktop fiber laser marking machine. It adopts air cooling and works stably. The touch screen is integrated on the power box, which is easy to carry and easy to operate.

Request This Model Email the model name

Product gallery

Key benefits

Published laser source: Raycus fiber laser source.
Published power: 20W.
Published weight: 25Kg.
Cooling: Air cooling.
Controller: Windows operating system.

Who it is for

Maintenance and warehouse teams marking metals, plastics and cartons at the point of use
Lines that need a portable fiber or semiconductor head instead of a fixed station

Problems it takes off the line

Fixed marking stations that cannot reach oversized or assembled parts
Inkjet marks that rub off metals, cartons and engineering plastics

Published technical points

Laser Source: Raycus fiber laser source
Laser Source: Raycus fiber laser source
Laser Wavelength: 1064nm
Laser Power: 20W
Marking Range: 100mm*100mm
Preview Mode: Border Preview / Graphic preview
Focal Length Guide: Double red light focusing
Operating System: Windows operating system

Specifications from the original listing

Laser Source	Raycus fiber laser source
Laser Source	Raycus fiber laser source
Laser Wavelength	1064nm
Laser Power	20W
Marking Range	100mm*100mm
Preview Mode	Border Preview / Graphic preview
Focal Length Guide	Double red light focusing
Operating System	Windows operating system
Interface	15 inch external controller
Power Supply	100~240V / 50~60Hz AC and built-in 24V lithium battery
Laser Service Life	20000 working hours
File Formats	JPG、PNG、BMP, etc
Cooling System	Air cooling
Working Condition	0°C -40°C Maximum 85% relative humidity, non-condensing
Print Content	Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter
Dimensions	550mm x 440mm x 690 mm
Machine Weight	25Kg
Suitable Materials	Metal materials (such as stainless steel, aluminum, copper), some plastics, coating materials, ceramics, etc

Substrates named on the source pages

Metals and rigid plastics

How plants put it to work

Mount or hold the head at the published working distance, load the code on the controller, and trigger from the line sensor where listed.

Related machines

Laser Marking Machine

L4 Pro Handheld Laser Marking Machine

This is a handheld semiconductor laser marking machine. The whole machine is designed to be powered by a removable rechargeable battery, whi

Laser Marking Machine

LD-20i Handheld Laser Marking Machine

This is a handheldportable fiber laser marking machine. The whole machine is designed to be powered by a removable rechargeable battery, whi

Laser Marking Machine

FR-30P Portable Laser Marking Machine

It adopts the most advanced integration technology so far, and the body is made of ABS material, with compact structure and light weight. It

Laser Marking Machine

L6 Pro Fiber Laser Marking Machine

The L6 Pro is an all-in-one portable desktop fiber laser marking machine. The marking head is designed for both fixed and handheld use. For

Questions Buyers Ask

What laser source does the SF-20W Fiber Laser Marking Machine use?

The published listing gives Raycus fiber laser source at 1064nm and 20W.

What does the SF-20W Fiber Laser Marking Machine weigh?

Published machine weight is 25Kg.

What marking field or print height is listed?

Published range is 100mm*100mm.

Talk to Hangzhou about SF-20W Fiber Laser Marking Machine

Include pack material, code content and target speed. Unpublished numbers will not be guessed on this page.
