LD-20i Handheld Laser Marking Machine

Name: LD-20i Handheld Laser Marking Machine
Brand: Dotcoding

This is a handheldportable fiber laser marking machine. The whole machine is designed to be powered by a removable rechargeable battery, which is convenient and lightweight. It is an ideal choice to replace TIJ handheld inkjet printers in the marking field.

Request This Model Email the model name

Product gallery

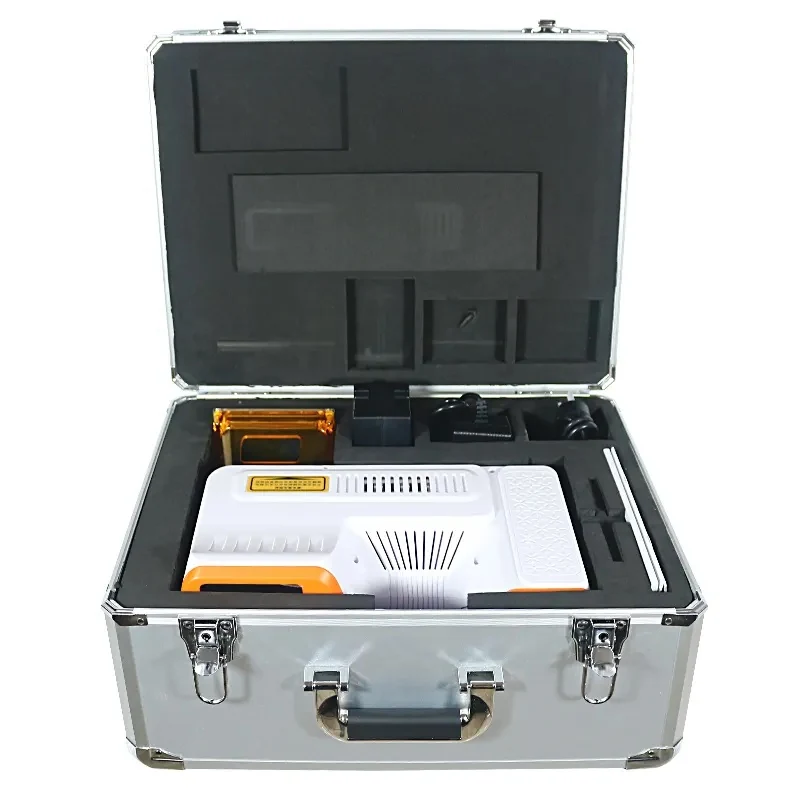

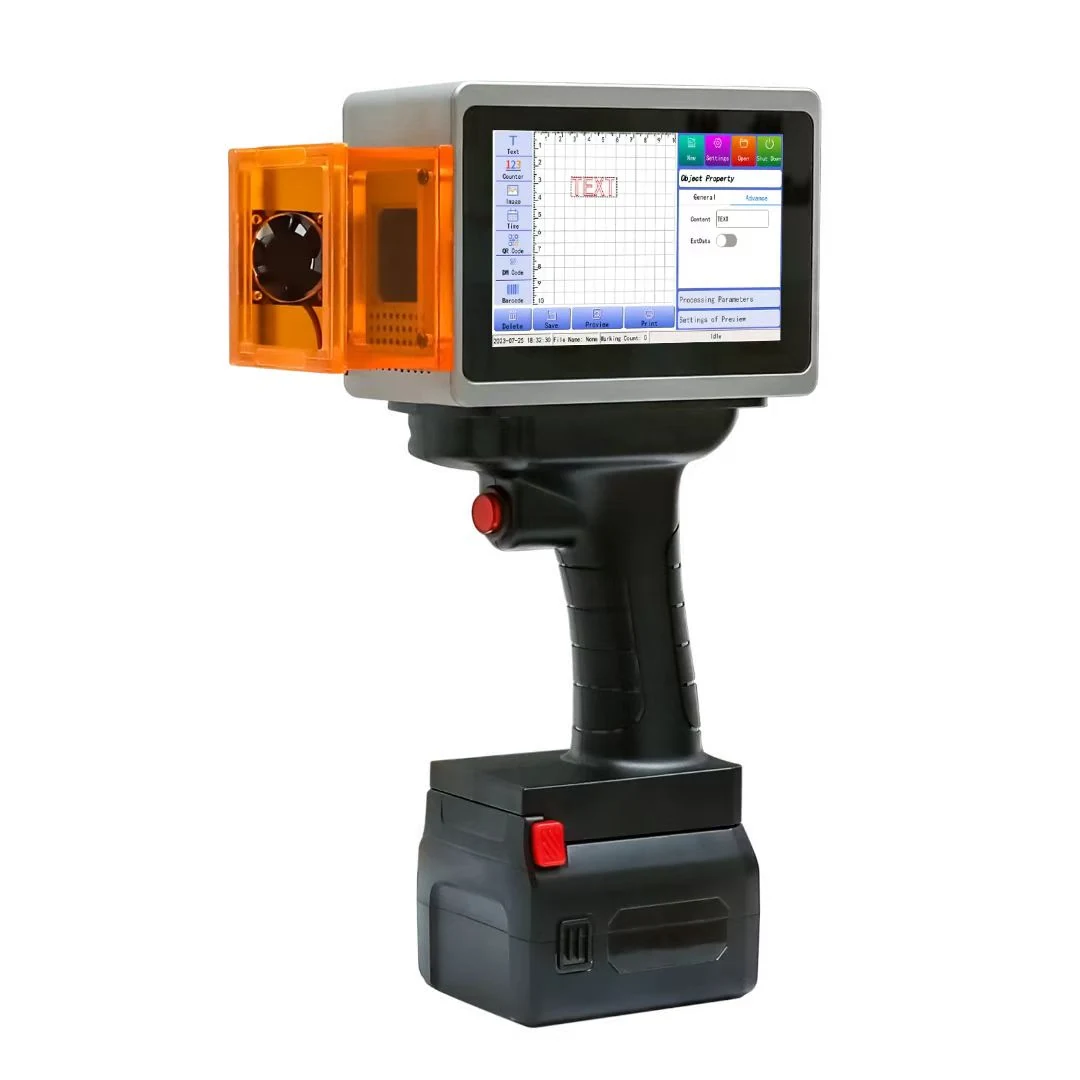

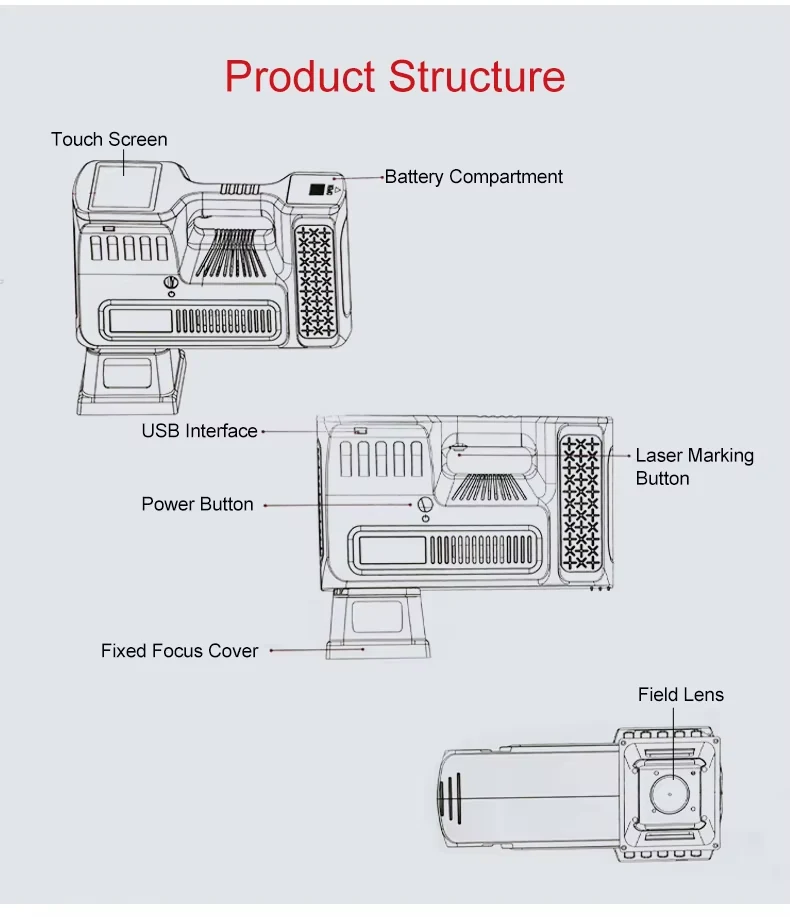

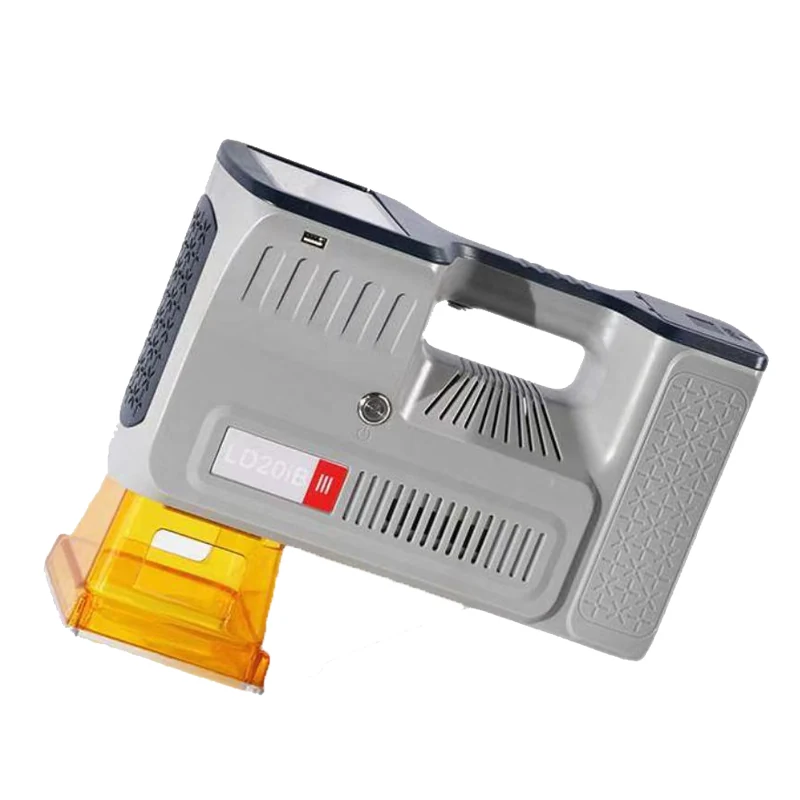

LD-20i Handheld Laser Marking Machine view

Key benefits

Published laser source: Fiber laser source.
Published power: 20W.
Published weight: 10.8Kg / 12.0Kg(after packaging).
Cooling: Built-in air cooling.
Controller: Embedded Linux.

Who it is for

Maintenance and warehouse teams marking metals, plastics and cartons at the point of use
Lines that need a portable fiber or semiconductor head instead of a fixed station

Problems it takes off the line

Fixed marking stations that cannot reach oversized or assembled parts
Inkjet marks that rub off metals, cartons and engineering plastics

Published technical points

Laser Source: Fiber laser source
Laser Wavelength: 1064nm
Laser Power: 20W
Marking Range: 50mm*50mm / 100mm*100mm
Preview Mode: Border Preview / Graphic preview
Focal Length Guide: Double red light focusing
Operating System: Embedded Linux
Interface: 8-inch touch screen

Specifications from the original listing

Laser Source	Fiber laser source
Laser Wavelength	1064nm
Laser Power	20W
Marking Range	50mm50mm / 100mm100mm
Preview Mode	Border Preview / Graphic preview
Focal Length Guide	Double red light focusing
Operating System	Embedded Linux
Interface	8-inch touch screen
Power Supply	100~240V / 50~60Hz AC and built-in lithium battery
Laser Service Life	20000 working hours
File Formats	JPG 、 PNG 、BMP, etc
Cooling System	Built-in air cooling
Working Condition	5°C -40°C Maximum 95% relative humidity, non-condensing
Print Content	Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter
Net weight	10.8Kg / 12.0Kg(after packaging)
Package Size	505 x 480 x 360 mm
Suitable Materials	Metal materials (such as stainless steel, aluminum, copper), some plastics, coating materials, ceramics, etc

Substrates named on the source pages

Metals and rigid plastics

How plants put it to work

Mount or hold the head at the published working distance, load the code on the controller, and trigger from the line sensor where listed.

Related machines

Laser Marking Machine

L4 Pro Handheld Laser Marking Machine

This is a handheld semiconductor laser marking machine. The whole machine is designed to be powered by a removable rechargeable battery, whi

Laser Marking Machine

FR-30P Portable Laser Marking Machine

It adopts the most advanced integration technology so far, and the body is made of ABS material, with compact structure and light weight. It

Laser Marking Machine

L6 Pro Fiber Laser Marking Machine

The L6 Pro is an all-in-one portable desktop fiber laser marking machine. The marking head is designed for both fixed and handheld use. For

Laser Marking Machine

SF-20W Fiber Laser Marking Machine

SF-20W is a desktop fiber laser marking machine. It adopts air cooling and works stably. The touch screen is integrated on the power box, wh

Questions Buyers Ask

What laser source does the LD-20i Handheld Laser Marking Machine use?

The published listing gives Fiber laser source at 1064nm and 20W.

What does the LD-20i Handheld Laser Marking Machine weigh?

Published machine weight is 10.8Kg / 12.0Kg(after packaging).

What marking field or print height is listed?

Published range is 50mm*50mm / 100mm*100mm.

Talk to Hangzhou about LD-20i Handheld Laser Marking Machine

Include pack material, code content and target speed. Unpublished numbers will not be guessed on this page.
