Home / Products / Laser Marking Machine / L6 Pro Fiber Laser Marking Machine

L6 Pro Fiber Laser Marking Machine

Name: L6 Pro Fiber Laser Marking Machine
Brand: Dotcoding

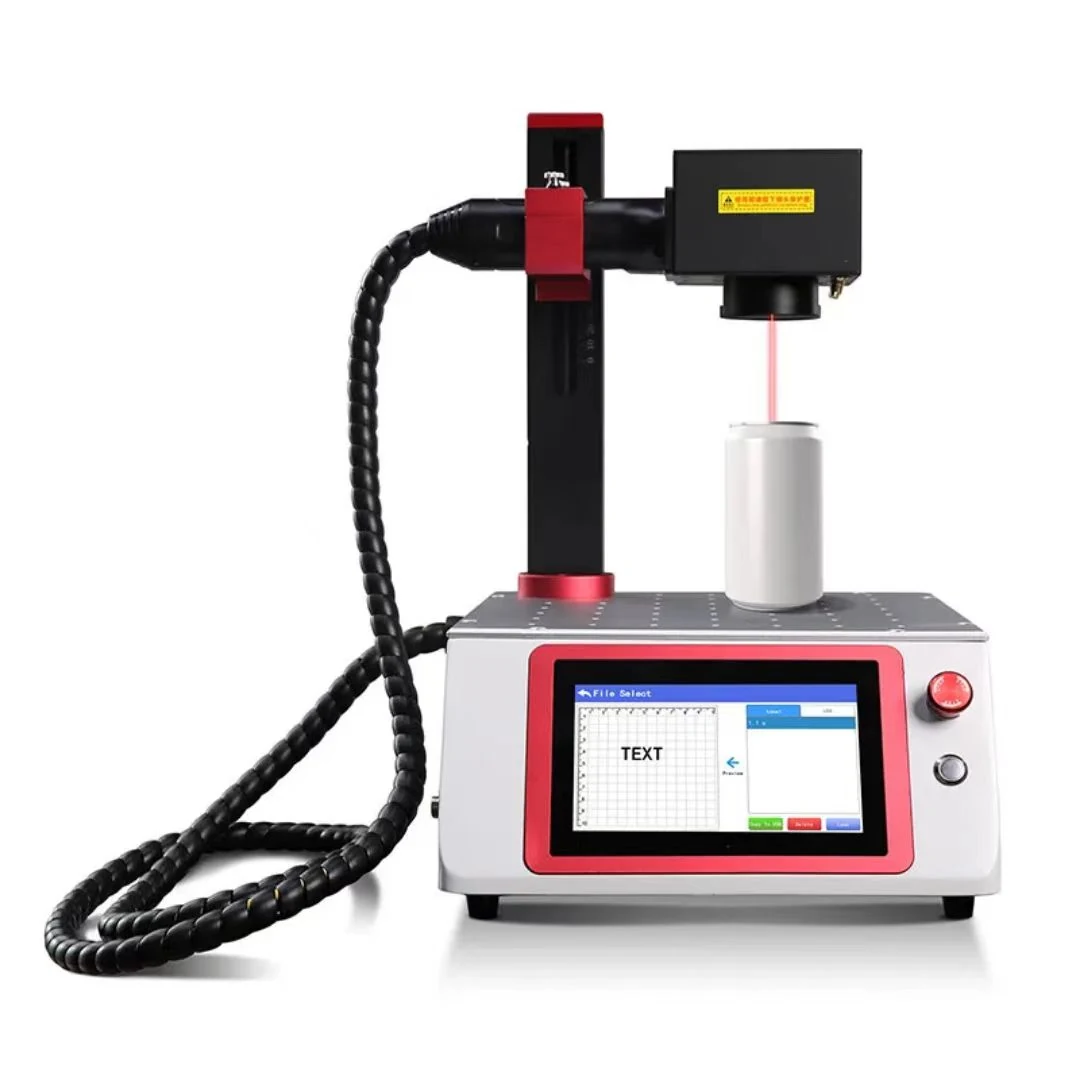

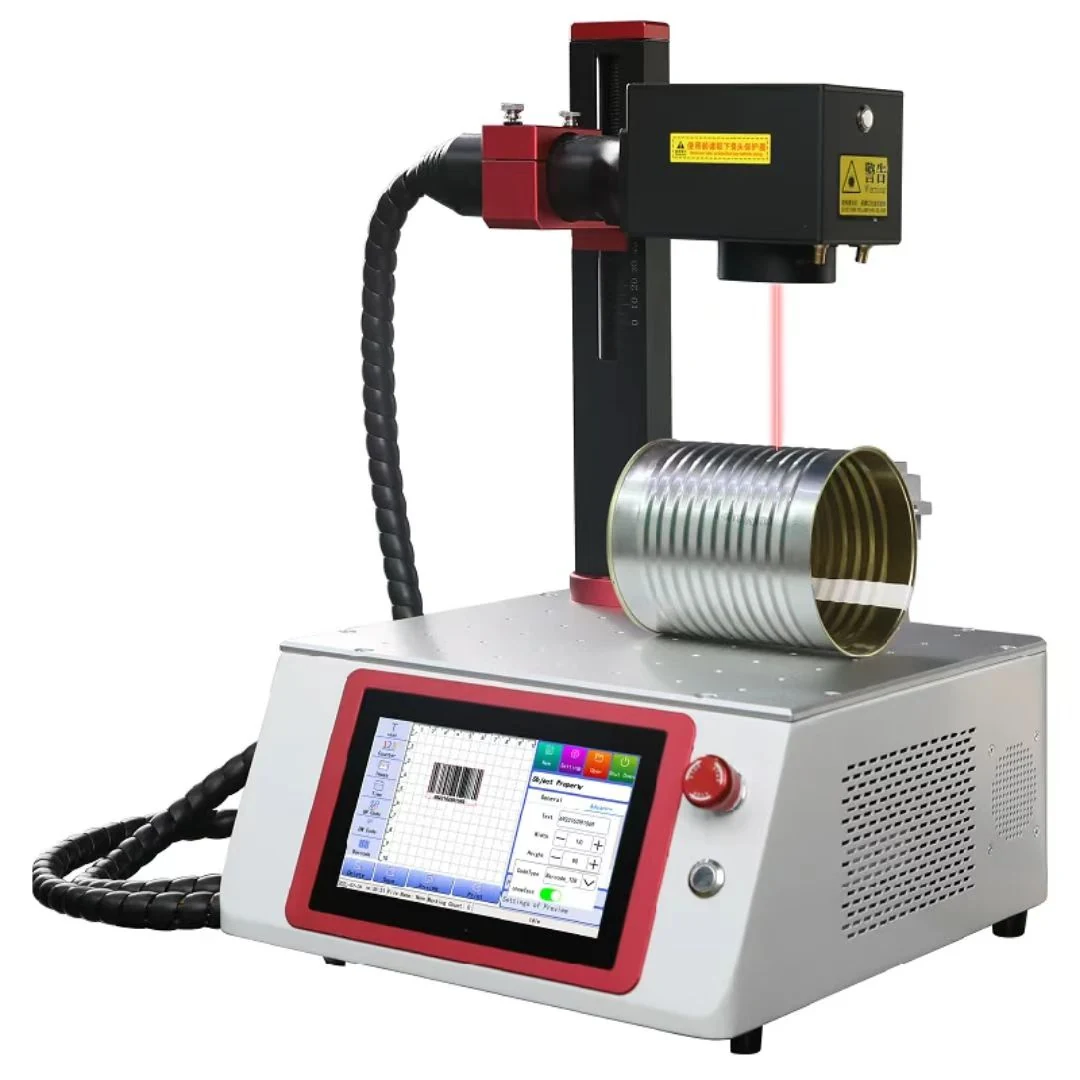

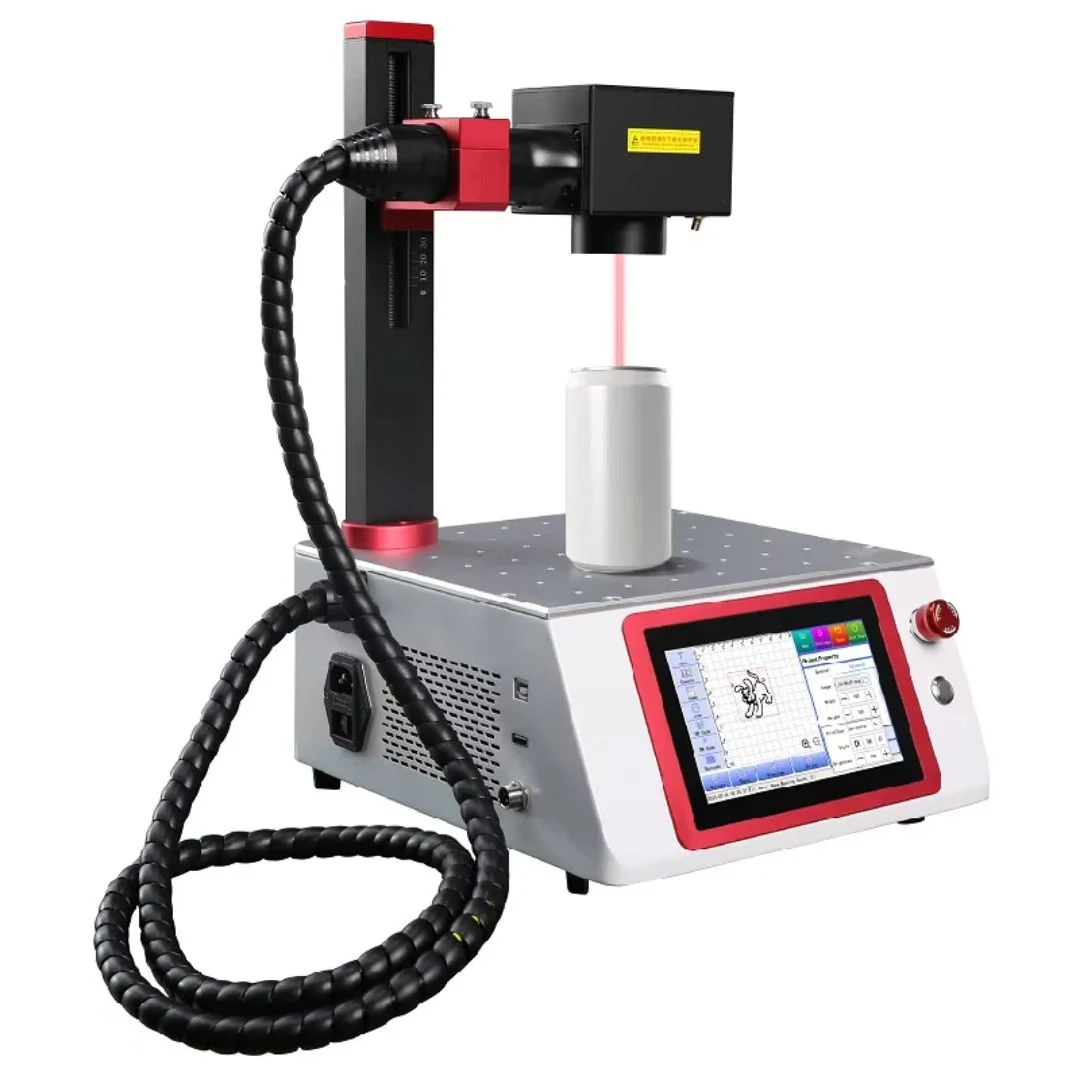

The L6 Pro is an all-in-one portable desktop fiber laser marking machine. The marking head is designed for both fixed and handheld use. For small parts processing, it can be placed directly on the marking table for marking. For larger parts, a bracket can be added to the marking head for handheld marking.

Request This Model Email the model name

Product gallery

Key benefits

Published laser source: Raycus fiber laser source.
Published power: 20W.
Cooling: Built-in air cooling.
Controller: Embedded Linux.

Who it is for

Maintenance and warehouse teams marking metals, plastics and cartons at the point of use
Lines that need a portable fiber or semiconductor head instead of a fixed station

Problems it takes off the line

Fixed marking stations that cannot reach oversized or assembled parts
Inkjet marks that rub off metals, cartons and engineering plastics

Published technical points

Laser Source: Raycus fiber laser source
Laser Wavelength: 1064nm
Laser Power: 20W
Marking Range: 100mm*100mm
Preview Mode: Border Preview / Graphic preview
Focal Length Guide: Double red light focusing
Operating System: Embedded Linux
Interface: 7-inch touch screen

Specifications from the original listing

Laser Source	Raycus fiber laser source
Laser Wavelength	1064nm
Laser Power	20W
Marking Range	100mm*100mm
Preview Mode	Border Preview / Graphic preview
Focal Length Guide	Double red light focusing
Operating System	Embedded Linux
Interface	7-inch touch screen
Power Supply	100~240V / 50~60Hz AC
Laser Service Life	100000 working hours
File Formats	JPG、PNG、BMP, etc
Cooling System	Built-in air cooling
Working Condition	10°C -40°C Maximum 95% relative humidity, non-condensing
Print Content	Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter
Suitable Materials	Stainless steel, Carbon steel, Alumina, Aluminum alloy, Aluminum, Stone, Copper-basediron, Carbide and other metal materials, HDPE, ABS, PVC, PES

Substrates named on the source pages

Metals and rigid plastics

How plants put it to work

Mount or hold the head at the published working distance, load the code on the controller, and trigger from the line sensor where listed.

Related machines

Laser Marking Machine

L4 Pro Handheld Laser Marking Machine

This is a handheld semiconductor laser marking machine. The whole machine is designed to be powered by a removable rechargeable battery, whi

Laser Marking Machine

LD-20i Handheld Laser Marking Machine

This is a handheldportable fiber laser marking machine. The whole machine is designed to be powered by a removable rechargeable battery, whi

Laser Marking Machine

FR-30P Portable Laser Marking Machine

It adopts the most advanced integration technology so far, and the body is made of ABS material, with compact structure and light weight. It

Laser Marking Machine

SF-20W Fiber Laser Marking Machine

SF-20W is a desktop fiber laser marking machine. It adopts air cooling and works stably. The touch screen is integrated on the power box, wh

Questions Buyers Ask

What laser source does the L6 Pro Fiber Laser Marking Machine use?

The published listing gives Raycus fiber laser source at 1064nm and 20W.

What marking field or print height is listed?

Published range is 100mm*100mm.

How do I get a quote for the L6 Pro Fiber Laser Marking Machine?

Message Grace Chan on WhatsApp at +86 18503072146 or email [email protected] with the model name and your pack substrate.

Talk to Hangzhou about L6 Pro Fiber Laser Marking Machine

Include pack material, code content and target speed. Unpublished numbers will not be guessed on this page.

Chat on WhatsApp Email Grace Chan
