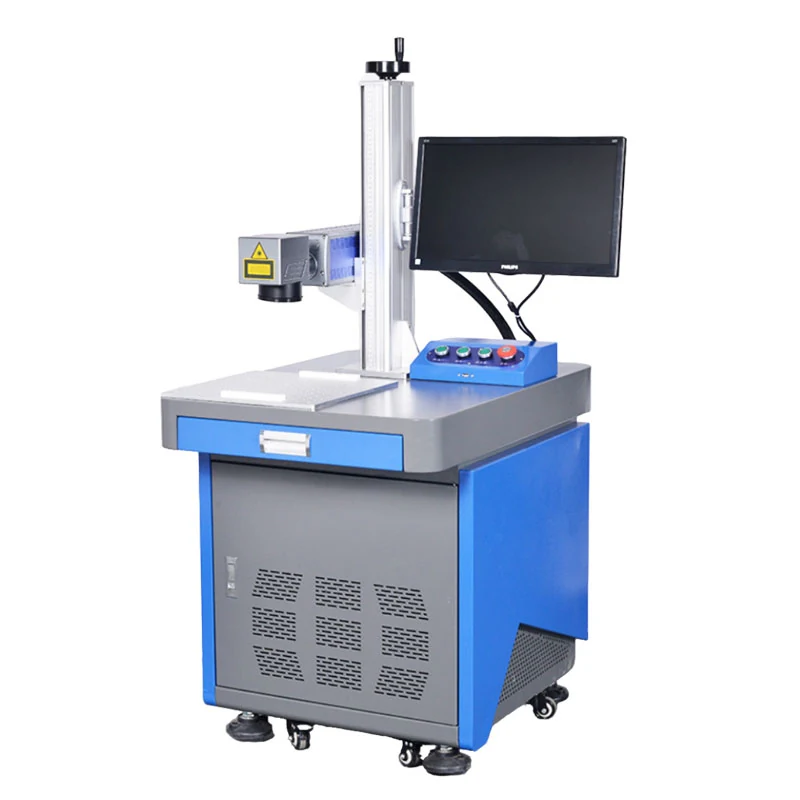

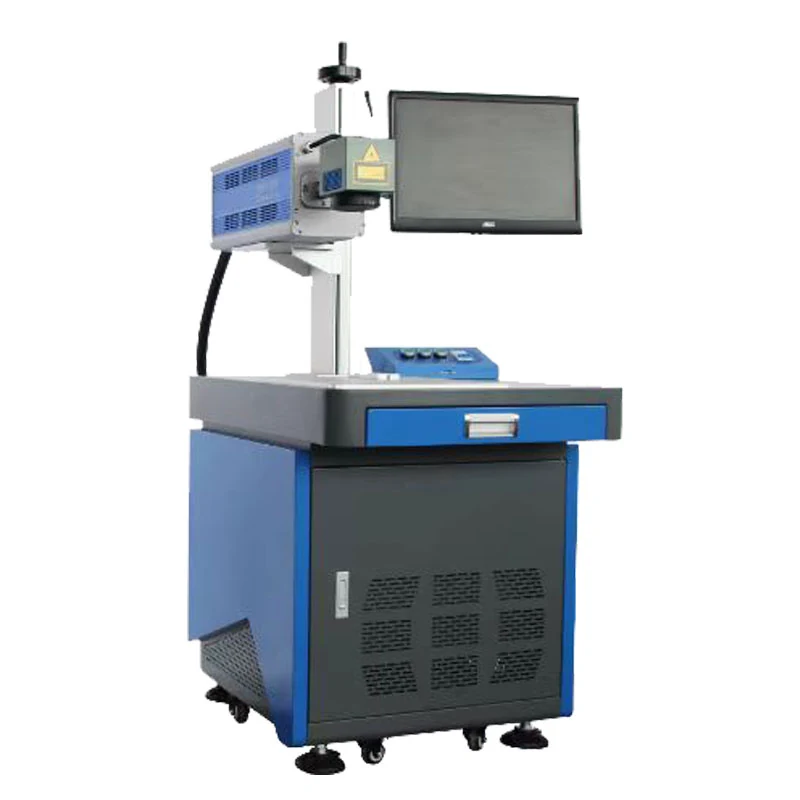

FR-30J Fiber Laser Marking Machine

Name: FR-30J Fiber Laser Marking Machine
Brand: Dotcoding

The FR-30J is a cabinet-type fiber laser marking machine. It adopts the classic JCZ laser marking control system. The cabinet is made of sheet metal and has exquisite paint technology, which is beautiful, generous, sturdy and durable.

Request This Model Email the model name

Product gallery

Key benefits

Published laser source: MAX / Raycus fiber laser.
Published power: 30W.
Published weight: 100Kg (Wooden box packaging).
Cooling: Built-in air cooling.
Controller: 21-inch industrial computer.

Who it is for

Maintenance and warehouse teams marking metals, plastics and cartons at the point of use
Lines that need a portable fiber or semiconductor head instead of a fixed station

Problems it takes off the line

Fixed marking stations that cannot reach oversized or assembled parts
Inkjet marks that rub off metals, cartons and engineering plastics

Published technical points

Laser Source: MAX / Raycus fiber laser
Laser Wavelength: 1064nm
Laser Power: 30W
Marking Range: 110mm*110mm
Preview Mode: Border Preview / Graphic preview
Focal Length Guide: Double red light focusing
Marking System: JCZ laser marking control system
Interface: 21-inch industrial computer

Specifications from the original listing

Laser Source	MAX / Raycus fiber laser
Laser Wavelength	1064nm
Laser Power	30W
Marking Range	110mm*110mm
Preview Mode	Border Preview / Graphic preview
Focal Length Guide	Double red light focusing
Marking System	JCZ laser marking control system
Interface	21-inch industrial computer
Power Supply	100~240V / 50~60Hz AC
Laser Service Life	20000 working hours
File Formats	JPG、PNG、BMP, etc
Cooling System	Built-in air cooling
Working Condition	-10°C - 45°C, Maximum 85% relative humidity, non-condensing
Print Content	Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter
Net weight	100Kg (Wooden box packaging)
Package Size	650 mm x 320 mm x 1480 mm
Suitable Materials	Metal materials (such as stainless steel, aluminum, copper), some plastics, coating materials, ceramics, etc

Substrates named on the source pages

Metals and rigid plastics
Wood and cartons

How plants put it to work

Mount or hold the head at the published working distance, load the code on the controller, and trigger from the line sensor where listed.
