FR-30H Fiber Laser Marking Machine

Name: FR-30H Fiber Laser Marking Machine
Brand: Dotcoding

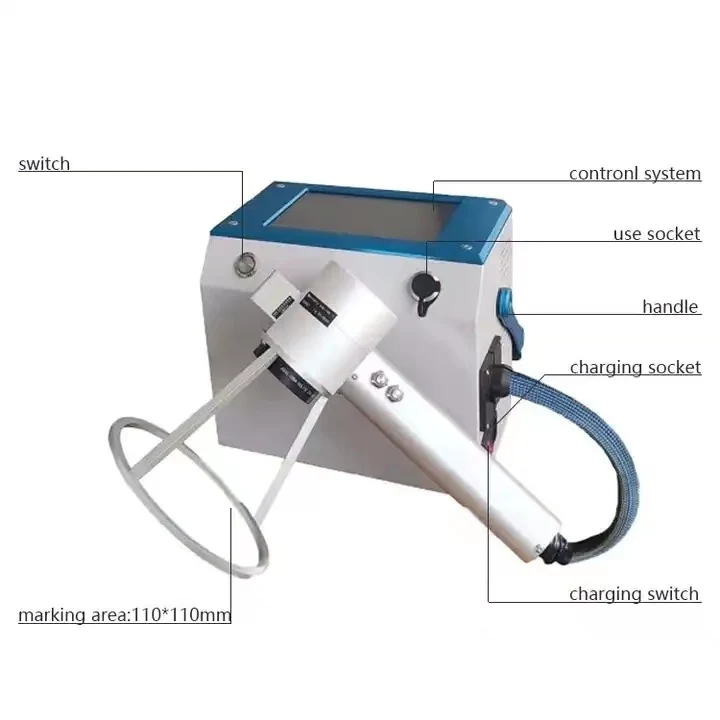

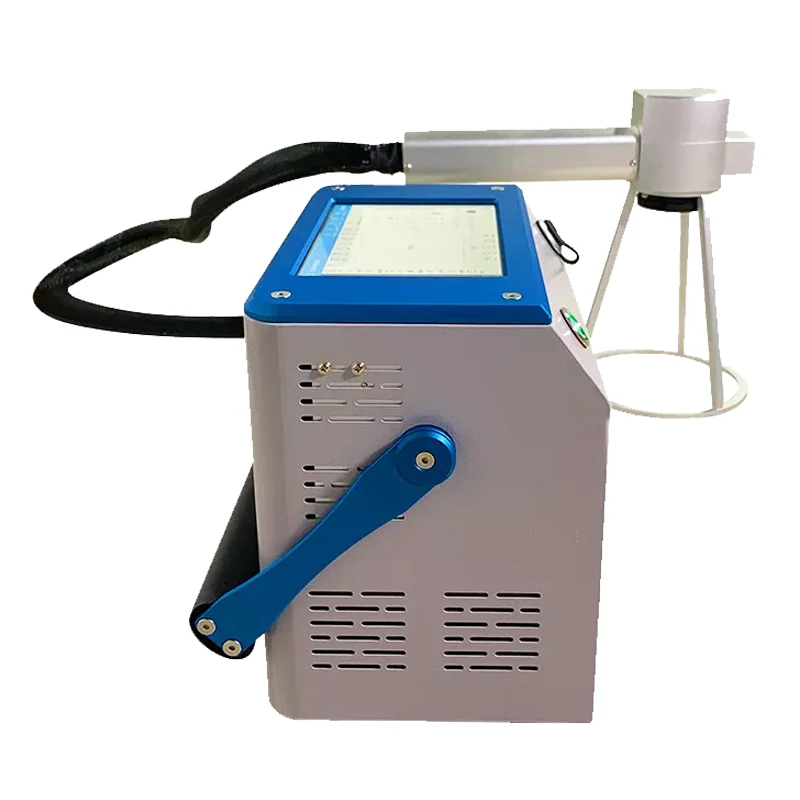

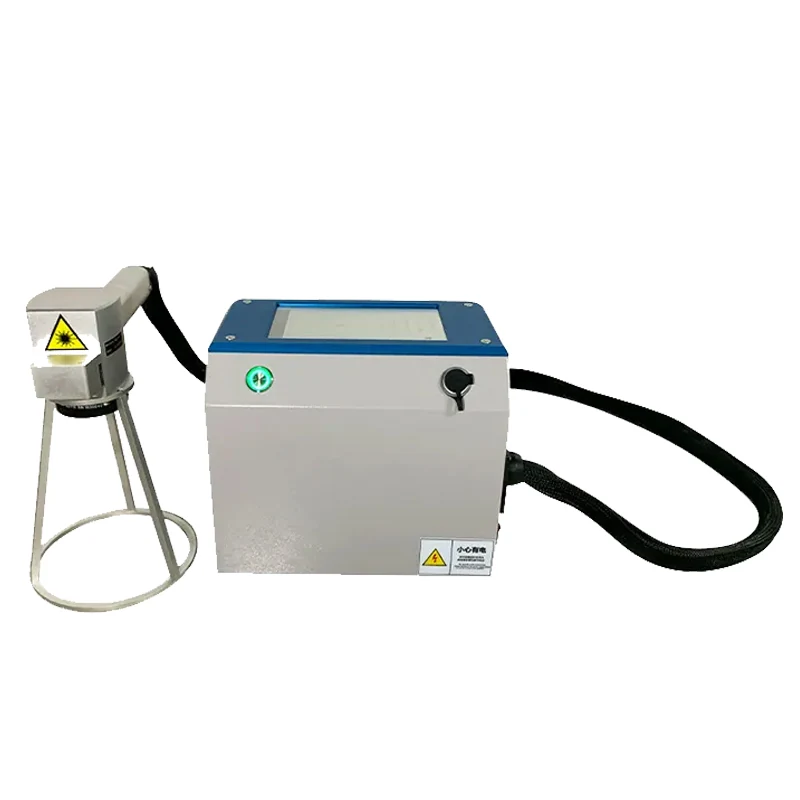

The FR-30H is an all-in-one portable fiber laser marking machine. The main body is made of sheet metal, which is strong and durable. At the same time, it is equipped with a encoder, which can realize ultra-long content marking, and is the first choice for metal parts marking.

Request This Model Email the model name

Product gallery

Key benefits

Published laser source: Raycus fiber laser source.
Published power: 30W.
Published weight: 10.8Kg / 12.0Kg(after packaging).
Cooling: Built-in air cooling.
Controller: Embedded Linux.

Who it is for

Maintenance and warehouse teams marking metals, plastics and cartons at the point of use
Lines that need a portable fiber or semiconductor head instead of a fixed station

Problems it takes off the line

Fixed marking stations that cannot reach oversized or assembled parts
Inkjet marks that rub off metals, cartons and engineering plastics

Published technical points

Laser Source: Raycus fiber laser source
Laser Wavelength: 1064nm
Laser Power: 30W
Marking Range: 110mm*110mm
Preview Mode: Border Preview / Graphic preview
Focal Length Guide: Double red light focusing
Operating System: Embedded Linux
Interface: 8-inch touch screen

Specifications from the original listing

Laser Source	Raycus fiber laser source
Laser Wavelength	1064nm
Laser Power	30W
Marking Range	110mm*110mm
Preview Mode	Border Preview / Graphic preview
Focal Length Guide	Double red light focusing
Operating System	Embedded Linux
Interface	8-inch touch screen
Power Supply	100~240V / 50~60Hz AC and built-in lithium battery
Laser Service Life	20000 working hours
File Formats	JPG、PNG、BMP, etc
Cooling System	Built-in air cooling
Working Condition	10°C -40°C Maximum 95% relative humidity, non-condensing
Print Content	Word, Numbers, Symbols, QR Code, Barcode, Pictures, Datetime, Counter
Net weight	10.8Kg / 12.0Kg(after packaging)
Package Size	505 x 480 x 360 mm
Suitable Materials	Metal materials (such as stainless steel, aluminum, copper), some plastics, coating materials, ceramics, etc

Substrates named on the source pages

Metals and rigid plastics

How plants put it to work

Mount or hold the head at the published working distance, load the code on the controller, and trigger from the line sensor where listed.

Related machines

Laser Marking Machine

L4 Pro Handheld Laser Marking Machine

This is a handheld semiconductor laser marking machine. The whole machine is designed to be powered by a removable rechargeable battery, whi

Laser Marking Machine

LD-20i Handheld Laser Marking Machine

This is a handheldportable fiber laser marking machine. The whole machine is designed to be powered by a removable rechargeable battery, whi

Laser Marking Machine

FR-30P Portable Laser Marking Machine

It adopts the most advanced integration technology so far, and the body is made of ABS material, with compact structure and light weight. It

Laser Marking Machine

L6 Pro Fiber Laser Marking Machine

The L6 Pro is an all-in-one portable desktop fiber laser marking machine. The marking head is designed for both fixed and handheld use. For

Questions Buyers Ask

What laser source does the FR-30H Fiber Laser Marking Machine use?

The published listing gives Raycus fiber laser source at 1064nm and 30W.

What does the FR-30H Fiber Laser Marking Machine weigh?

Published machine weight is 10.8Kg / 12.0Kg(after packaging).

What marking field or print height is listed?

Published range is 110mm*110mm.

Talk to Hangzhou about FR-30H Fiber Laser Marking Machine

Include pack material, code content and target speed. Unpublished numbers will not be guessed on this page.
