XA301 Warning Light Head/Grill Light
XA301 series warning light head are universal fit all cars, SUV, vans and trucks, motorcyles with DC 12V-24V.
View specifications
What this lamp is for

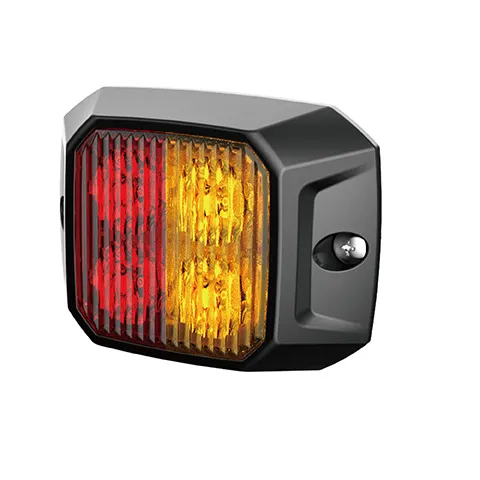

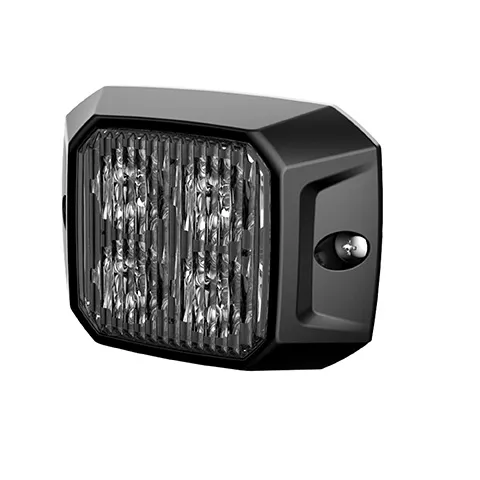

XA302 Warning Light Head Grill Light XA302 series high performance warning lamps are universal fit all cars, SUV, vans and trucks, motorcyles with DC 12V-24V. There are different power ranges(1W/3W) and colors(single/dual) available for satisfying various warning requirements. ECE R10 EMC Compliance.
- XA302 Warning Light Head Grill Light
- XA302 series high performance warning lamps are universal fit all cars, SUV, vans and trucks, motorcyles with DC 12V-24V. There are different power ranges(1W/3W) and colors(single/dual) available for satisfying various warning requirements.
- Finely designed polycarbonate lens with ECE R65 Class 2 and SAE J595 Class 1 certified output.
- ECE R10 EMC Compliance.
- 4 high intensity LEDs ensure consistent performance, low current draw.
- Fully encapsulated for moisture, vibration and corrosion resistance.
Specification table
Values below are transcribed from the original Katuo product page.
| Approvals | ECE R10(EMC), ECE R65 Class 1/Class 2, SAE J595 Class 1/Class 2, California Title 13 Class B |
|---|---|
| LEDs | 4 pcs*3W |
| Colors | Amber/Red/Blue/Amber+Red/Amber+Blue/Red+Blue |
| Operating voltage | 12~24V |
| Operating temperature | -40℃~ +65℃ |
| Wires | Red: Positive(+) |
| Cable length | 300mm |
| Housing | Aluminium die-casting |
| Lens | Clear PC |
| Mounting | Screw |
| Waterproof | IP67 |
| Net weight | 87.5g/pc |
| Packing | Inner box: 60x60x85mm; Outer box: 315x315x186mm; Qty.: 50 Pcs/Carton |
Questions buyers actually ask
What markings are listed on XA302 Warning Light Head Grill Light?
The source spec table prints: ECE R10(EMC), ECE R65 Class 1/Class 2, SAE J595 Class 1/Class 2, California Title 13 Class B. Confirm color and length before treating that string as valid for every option.
What voltage does XA302 Warning Light Head Grill Light accept?
Operating voltage on the listing is 12~24V.
What ingress rating is printed?
IP67. That rating applies to the assembled lamp as shipped.
How does it mount?
Mounting options listed: Screw.
