LED Warning Light Bar
WL501 Warning Light Bar
WL501 series light bars are totally ECE R65 Class 2 and Class 1, SAE J845 Class 1 and CISPR 25 Class3 Certified.Size are available from 24in
View specifications
What this lamp is for
WL502 series light bars are totally ECE R65 Class 2 and Class 1, SAE J845 Class 1 and CISPR 25 Class3 Certified.Size are available from 18.5inch (469mm) to 90.5inch(2306mm). ECE R65 Class 2 , SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation. High Quality COB LED makes the diffused lighting effect excellent and eye-cataching.

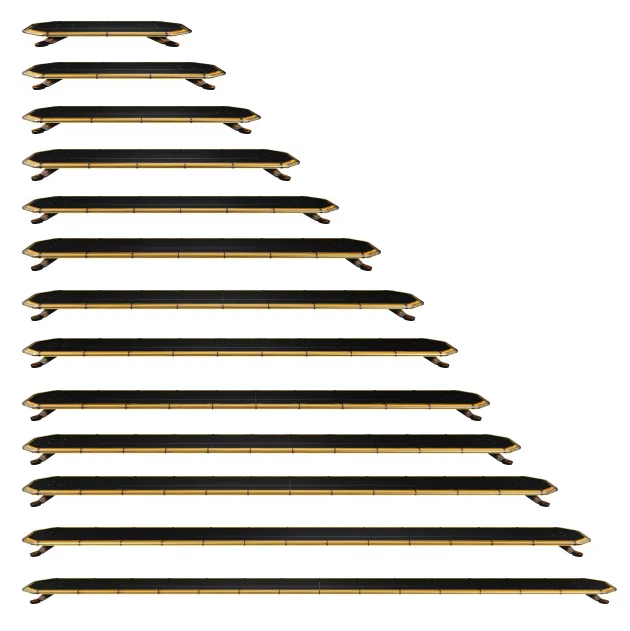

- WL502 series light bars are totally ECE R65 Class 2 and Class 1, SAE J845 Class 1 and CISPR 25 Class3 Certified.Size are available from 18.5inch (469mm) to 90.5inch(2306mm).
- ECE R65 Class 2 , SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation.
- High Quality COB LED makes the diffused lighting effect excellent and eye-cataching.

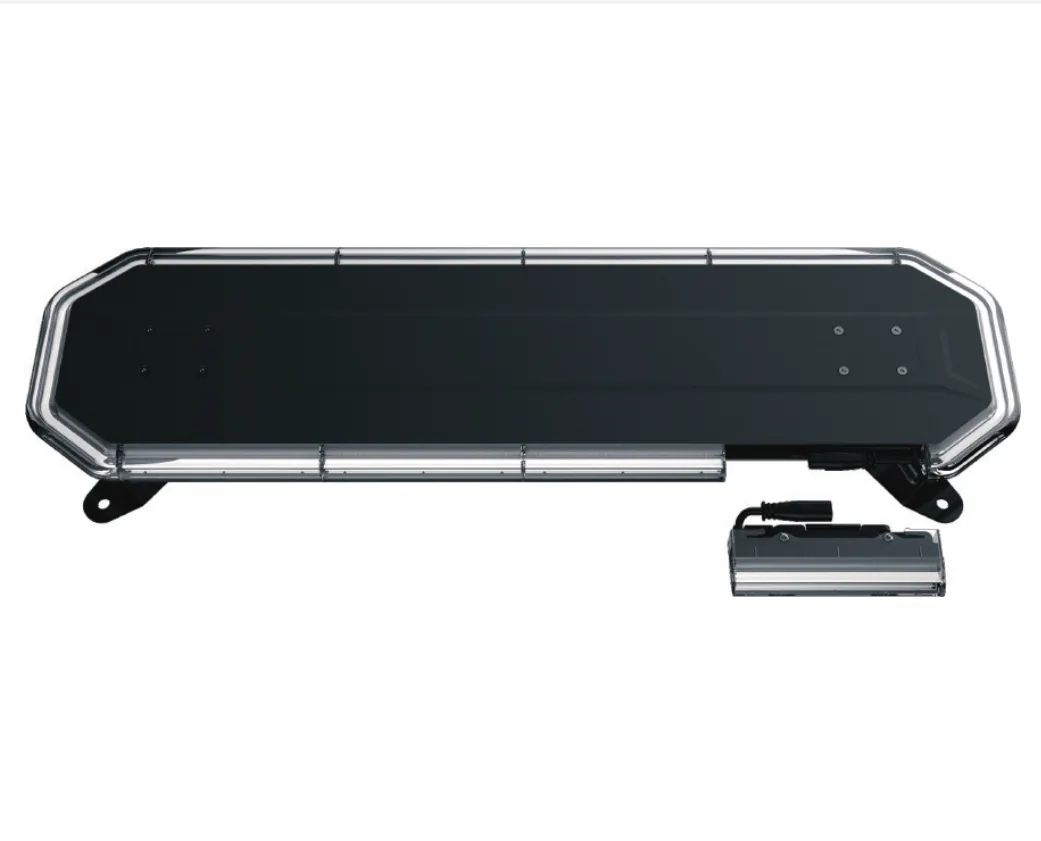

- Module with plug makes the maintenance more practical and cost saved
- Ultra thin light body with low air resistance.
- IP67 Fully encapsulated for moisture, vibration and corrosion resistance.
Specification table
Values below are transcribed from the original Katuo product page.
| Approvals | ECE R65 Class 2 /SAE J845 Class 1,ECE R10/CISPR 25 Class3 |
|---|---|
| Module length | 18.5inch-90.5inch available |
| Operating voltage | 12/24V |
| Operating temperature | -40℃~ +65℃ |
| Wires | Red: Positive(+) |
| Cable length | 5000mm cable |
| Base | Extruded aluminum |
| Cover | PC |
| Lens | PC |
| Mounting | Bracket |
| Waterproof | IP67 |
| Net weight | 18.5inch 3.59KG, 0.84KG/6inch adding. |
| Warranty | 2 years |
| Remarks | Takedowns or alleys can be customized. |
Questions buyers actually ask
What markings are listed on WL502 Warning Light Bar?
The source spec table prints: ECE R65 Class 2 /SAE J845 Class 1,ECE R10/CISPR 25 Class3. Confirm color and length before treating that string as valid for every option.
What voltage does WL502 Warning Light Bar accept?
Operating voltage on the listing is 12/24V.
What ingress rating is printed?
IP67. That rating applies to the assembled lamp as shipped.
How does it mount?
Mounting options listed: Bracket.
