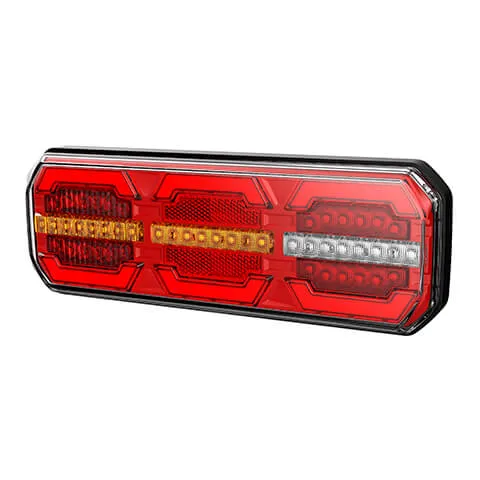

CL102 283mm Rear Combination Light
CL102 283mm Rear Combination LightCL102 283mm Rear Combination LightCL102 283mm Rear Combination Light

What this lamp is for

SL102 series signal light combine various functions into one superior square light. The functions are Diffused Tail/ Stop / Tracking Direction Indicator / Rear fog / Reverse /Reflex. Rear fog can be replaced by Reflex.

  • SL102 series signal light combine various functions into one superior square light. The functions are Diffused Tail/ Stop / Tracking Direction Indicator / Rear fog / Reverse /Reflex. Rear fog can be replaced by Reflex.
  • ECE R7/R6/R38/R23/R3, ECE R10 Certified.
  • IP67 dustproof and waterproof, quality ensured.
  • Diffused tail and tracking direction indicator.
  • Strong pc cover and lens are all finely molded..
  • Simple installation with universal bolt mount

Specification table

Values below are transcribed from the original Katuo product page.

ApprovalsECE R3/R6/R7/R23/R38, ECE R10
Operating voltage12/24V
Operating temperature-40℃~ +65℃
WiresRed:Stop(+)
Cable length500mm cable
HousingPC
LensPC
MountingBolt
WaterproofIP67
Net weight700g/pc
PackingInner box: 305*115*70mm; Outer box: 390*346*320mm; Qty.: 15pcs/Carton

Questions buyers actually ask

What markings are listed on CL102 283mm Rear Combination Light?

The source spec table prints: ECE R3/R6/R7/R23/R38, ECE R10. Confirm color and length before treating that string as valid for every option.

What voltage does CL102 283mm Rear Combination Light accept?

Operating voltage on the listing is 12/24V.

What ingress rating is printed?

IP67. That rating applies to the assembled lamp as shipped.

How does it mount?

Mounting options listed: Bolt.
