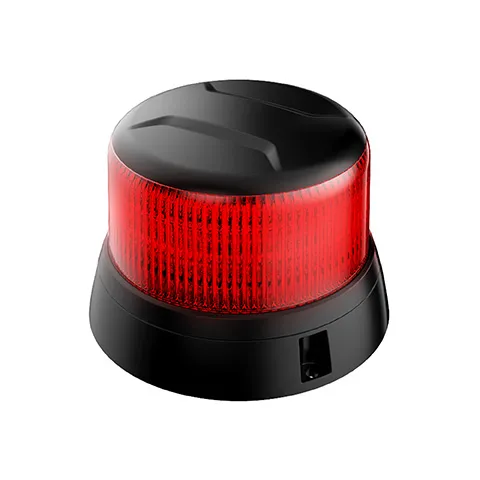

WB203 Warning Beacon
TA82 series(123mm height) LED beacon light is designed to get attention, with colors, intensity, and flashing rate that strongly deliver a s
View specifications
What this lamp is for
WB202 series(84mm height) LED beacon light is designed to get attention, with colors, intensity, and flashing rate that strongly deliver a sense of emergency. It can provide an excellent 360-degree warning illumination for police, fire, and rescue vehicles, as well as for tow trucks, snowplows, school buses, and warehouse forklift trucks. Fully encapsulated for moisture, vibration and corrosion resistance.
- WB202 series(84mm height) LED beacon light is designed to get attention, with colors, intensity, and flashing rate that strongly deliver a sense of emergency. It can provide an excellent 360-degree warning illumination for police, fire, and rescue vehicles, as well as for tow trucks, snowplows, school buses, and warehouse forklift trucks.
- ECE R10, SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation.
- Fully encapsulated for moisture, vibration and corrosion resistance.
- 16 pcs high-intensity LEDs to provide consistent warning performance.
- Low profile, aluminum die casting outer dome and extruded aluminum platform ensure stability during extended dwell time and long life dependability.
- Screw mounting include 500mm cable.
Specification table
Values below are transcribed from the original Katuo product page.
| Approvals | ECE R10/CISPR 25 Class3, ECE R65 Class 1/SAE J845 Class 1 |
|---|---|
| LEDs | 16pcs*1W |
| Colors | Amber/Red/Blue/Red+Blue |
| Operating voltage | 12/24V |
| Operating temperature | -40℃~ +65℃ |
| Wires | Red: Positive(+) |
| Cable length | 500mm cable/2500mm cable+plug for magnet mounting |
| Housing | PC |
| Cover | Aluminium die-casting |
| Lens | PC |

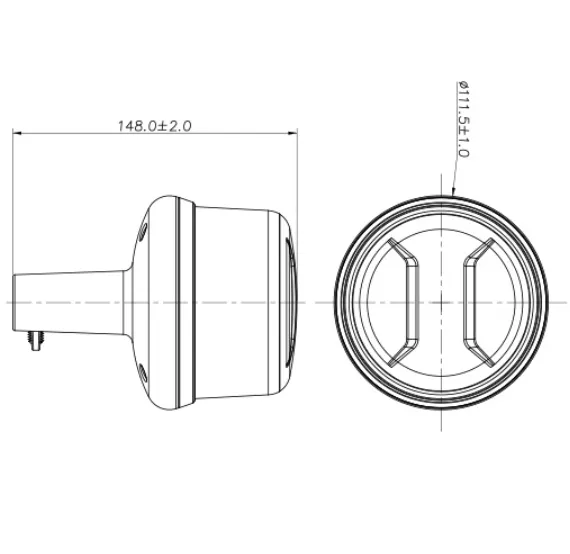

| Mounting | Screw/Magnet/DIN pole |
| Waterproof | IP67 |
| Net weight | By screw 465g/PC; By magnet 730g/PC; By DIN pole 480g/PC |
| Packing | Inner box: 130x130x170mm; Outer box: 410x275x360mm; Qty.: 12PCS/Carton |
| Warranty | 2 years |
Questions buyers actually ask
What markings are listed on WB202 Warning Beacon?
The source spec table prints: ECE R10/CISPR 25 Class3, ECE R65 Class 1/SAE J845 Class 1. Confirm color and length before treating that string as valid for every option.
What voltage does WB202 Warning Beacon accept?
Operating voltage on the listing is 12/24V.
What ingress rating is printed?
IP67. That rating applies to the assembled lamp as shipped.
How does it mount?
Mounting options listed: Screw/Magnet/DIN pole.
