LED Warning Mini Bar
WM403 15inch Warning Mini Bar
WM404 15inch warning light bar to deliver 360°emergency lighting coverage during the day or nighttime, ensuring your safety on or off the ro
View specifications
What this lamp is for
WM404 12.5inch warning mini bar adopts high-quality COB light source providing diffused and eye-catching warning performance! Strong polycarbonate cover and lens are all finely molded with a streamlined appearance. Innovative design with fewer components ensure stability during extended dwell time.
- WM404 12.5inch warning mini bar adopts high-quality COB light source providing diffused and eye-catching warning performance!
- SAE J845 Class 1 and CISPR 25 Class3 Certified, virtually no RFI/EMI radiation
- Fully encapsulated for moisture, vibration and corrosion resistance.
- Strong polycarbonate cover and lens are all finely molded with a streamlined appearance.
- Innovative design with fewer components ensure stability during extended dwell time.

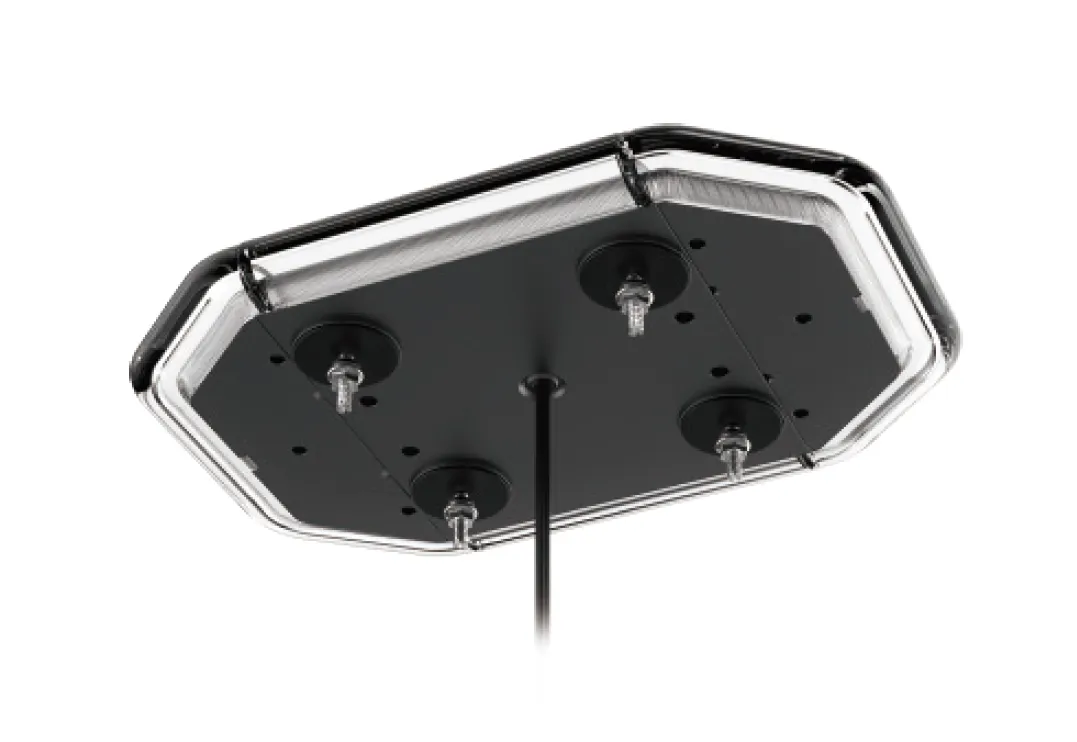

- 4 bolts mounting includes 500mm cable.
Specification table
Values below are transcribed from the original Katuo product page.
| Approvals | ECE R10/CISPR 25 Class3, ECE R65 Class 2/SAE J845 Class 1 |
|---|---|
| LEDs | 2*7W COB+4*5W COB+2*8W COB |
| Colors | Amber/Red/Blue/Red+Blue |
| Operating voltage | 12/24V |
| Operating temperature | -40℃~ +65℃ |
| Wires | Red: Positive(+) |
| Cable length | 500mm cable/2500mm cable+Cig plug for magnet mounting |
| Housing | PC |
| Cover | PC |
| Lens | PC |

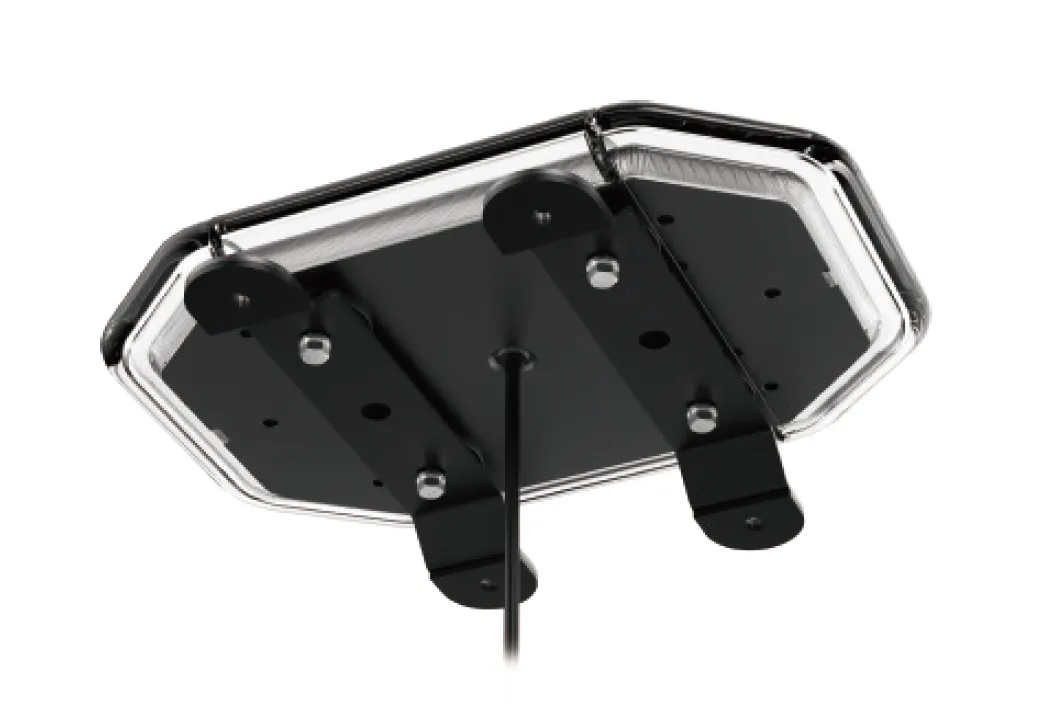

| Mounting | Bolt/Bracket/Magnet |
| Waterproof | IP67 |
| Net weight | By bolt 1720g/PC; By bracket 2080g/PC; By magnet 2150g/PC |
| Packing | Inner box: 395x265x56mm; Outer box: 468x405x280mm; Qty.: 8PCS/Carton |
| Warranty | 2 years |
Questions buyers actually ask
What markings are listed on WM404 12.5inch Warning Mini Bar?
The source spec table prints: ECE R10/CISPR 25 Class3, ECE R65 Class 2/SAE J845 Class 1. Confirm color and length before treating that string as valid for every option.
What voltage does WM404 12.5inch Warning Mini Bar accept?
Operating voltage on the listing is 12/24V.
What ingress rating is printed?
IP67. That rating applies to the assembled lamp as shipped.
How does it mount?
Mounting options listed: Bolt/Bracket/Magnet.
