Desktop fiber laser marking machine
The WH-30 is a desktop fiber laser marking machine with a 30 W Raycus source and a marking speed of 7000 mm/s. It etches metals including stainless steel, carbon steel, aluminum, copper and gold, plus hard plastics and PVC, with a minimum line width of 0.01...
Product Overview
What This Machine Is Built To Do

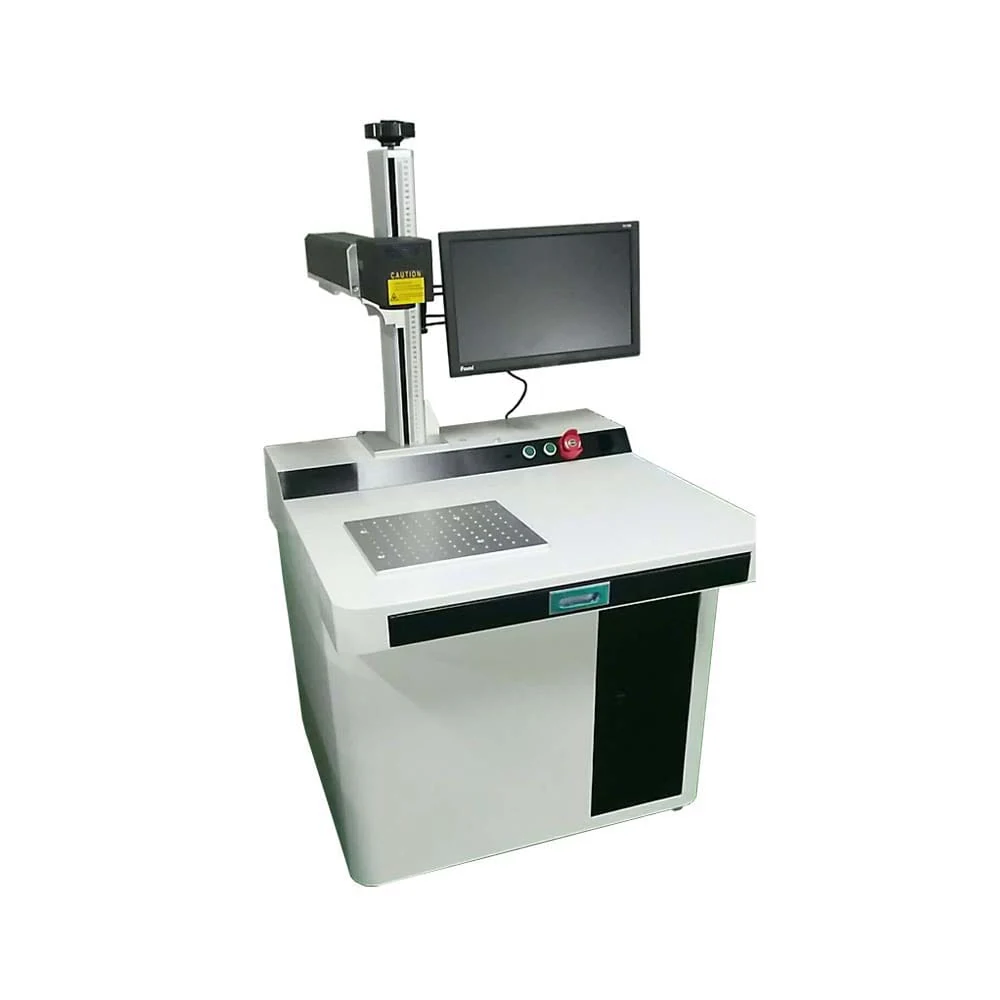

The WH-30 is a desktop fiber laser marking machine with a 30 W Raycus source and a marking speed of 7000 mm/s. It etches metals including stainless steel, carbon steel, aluminum, copper and gold, plus hard plastics and PVC, with a minimum line width of 0.01 mm and etching depth of 0.01 to 1 mm. The 30Q Signo brand laser head and imported motor provide stable, anti-shake marking on a compact 70 x 60 x 145 cm frame. It is built for workshops that need permanent marks on small parts, nameplates and components without the footprint or cost of a larger industrial marking cell.
- 0.01 mm minimum line width resolves fine text and serial numbers on small components
- 30 W Raycus source with 100,000 hour lifetime reduces lamp replacement and downtime
- 7000 mm/s marking speed keeps throughput high on batch nameplate work
- Etching depth of 0.01 to 1 mm handles both surface marks and deeper engraving
- Anti-glare coated field lens delivers a delicate spot and resists wear and scratching
- Standard USB control interface and Beijing EZCAD software simplify operator training
Where It Is Used
Application Scenarios
- Nameplate production for metal and plastic parts requiring permanent identification
- Jewelry and gift marking on gold, silver and hard alloy surfaces
- Electronic component and chip word removal marking
- Hardware tool and electrical product serial number engraving
- Cylindrical marking on cans and milk powder barrels with optional rotary axis
Buyer Fit
Who It Is For
- Small workshops marking metal parts where a desktop footprint is required
- Producers of nameplates and tags needing fine 0.01 mm line resolution
- Jewelry and electronics manufacturers marking gold, silver and chip surfaces
- Dealers stocking a compact fiber marker for mixed metal and plastic jobs
Process Problems
Problems It Solves
- Large industrial marking cells waste floor space in small workshops
- Ink and sticker marks fail on metal parts exposed to wear and heat
- Fine serial numbers blur when line width cannot reach 0.01 mm
- Operator training slows production when control software is complex
- Cylindrical parts like cans cannot be marked on a flat table
Engineering
Technical Features
- 30 W genuine Raycus laser source with 100,000 hour rated lifetime
- 30Q serial Beijing Signo brand laser head for stable and agile marking
- Imported motor with anti-shake compensation for high-speed marking
- High-lens field lens with anti-glare coating and wear-resistant focus
- Pure aluminum column with standard 500 mm height and 500 mm scale
- Beijing EZCAD software supporting bmp, png, ai, dxf, dst and plt formats
Specifications
Published Figures For Desktop fiber laser marking machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Model | WH-30 |
|---|---|
| Laser Type | Fiber laser |
| Laser Power | 30 W |
| Laser Source Brand | Raycus |
| Laser Source Lifetime | 100,000 hours |
| Marking Scope | 110 x 110 mm to 300 x 300 mm |
| Marking Speed | 7000 mm/s |
| Minimum Line Width | 0.01 mm |
| Etching Depth | 0.01 to 1 mm |
| Software | Beijing EZCAD |
| Power Voltage | AC110 / AC220V ±10% / 50Hz / 60Hz / 4A |
| Control Interface | Standard USB port |
| Machine Size | 70 x 60 x 145 cm |
| Package Dimension | 88 x 81 x 110 cm |
| Net Weight | 70 kg |
| Gross Weight | 85 kg |
Materials
Materials It Handles
- Stainless steel, carbon steel, aluminum, copper, iron, gold, silver and hard alloy
- Alumina and aluminum alloy surfaces
- Hard plastic and PVC material
- Metal spray paint surface and glazed ceramics
- Melamine wood boards and painted cartons
- Mirror paint layers and graphene
Working Process
From File To Finished Part
Import bmp, png, ai, dxf, dst or plt graphic into Beijing EZCAD software
Load the part onto the worktable or optional rotary axis fixture
Adjust the pure aluminum column height using the 500 mm scale to focus
Set power and speed parameters for the material and required etching depth
Run marking at up to 7000 mm/s with anti-shake motor compensation
Inspect the mark for 0.01 mm line clarity and correct depth
Quality Control
Quality Control Before Shipment
- Genuine Raycus laser source is specified to ensure 100,000 hour lifetime
- Anti-glare coated field lens is checked for clear focus and scratch resistance
- Imported motor stability and anti-shake compensation are verified before shipping
- CE certificate is provided for laser marking machines
Options
Customisation Options
- Choose 50 W, 70 W or 100 W power options on the same desktop frame
- Select Max or JPT laser source brand instead of Raycus
- Customize super high columns according to specific working situation
- Add rotary axis for cylindrical or ring marking
- Include 2D working table, cup marking or chopstick fixture options
- Set voltage and plug configuration for destination market
Comparison
How It Compares With The Alternatives
| CO2 laser marking machine | The fiber source marks metals and plastics but cannot engrave glass or acrylic as effectively as CO2 |
|---|---|
| Industrial fiber laser marking cell | The desktop WH-30 has a smaller footprint and lower cost but cannot handle large heavy parts without fixtures |
| Inkjet marking | Laser marks are permanent and resistant to wear and heat, unlike ink which can smudge or fade on metal |
Operating Notes
Use Guide
- Use the 500 mm scale on the column to set correct working distance for each part thickness
- Confirm actual test results before marking PVC and hard plastics due to component variation
- Clean the field lens regularly to maintain the delicate spot and anti-glare coating
- Select the correct rotary axis fixture for cans, rings or cylindrical parts
- Use English manual and video CD for operator training before first production run
Buyer Questions
Desktop fiber laser marking machine FAQ
What is the marking area?
Standard marking scope options include 110 x 110 mm, 150 x 150 mm, 175 x 175 mm, 200 x 200 mm and 300 x 300 mm.
Can it mark gold and silver?
Yes, the fiber laser marks gold, silver, copper, iron, stainless steel, carbon steel, aluminum, alumina and hard alloy surfaces.
What is the minimum line width?
The machine achieves a minimum line width of 0.01 mm with etching depth adjustable from 0.01 to 1 mm.
What laser source brand is used?
The standard configuration uses a 30 W genuine Raycus source with 100,000 hour lifetime. Max and JPT sources are also available.
Can you mark cylindrical parts?
Yes, optional rotary axes are available for cylindrical marking, ring marking and cup marking fixtures.
What warranty is included?
Two years guarantee on the whole machine from production date, excluding consumable parts, with free spare parts for normal use issues.
What software does it run?
The machine uses Beijing EZCAD software and supports bmp, png, ai, dxf, dst and plt graphic formats via USB.
