Portable Fiber Laser Marking Machine
The Portable Fiber Laser Marking Machine is a handheld unit available with 20 W, 30 W, 50 W or 100 W fiber laser sources. It marks metals such as stainless steel, aluminium, brass and titanium with a line width of 0.01-0.1 mm and a depth of 0.01-2 mm...
Product Overview
What This Machine Is Built To Do

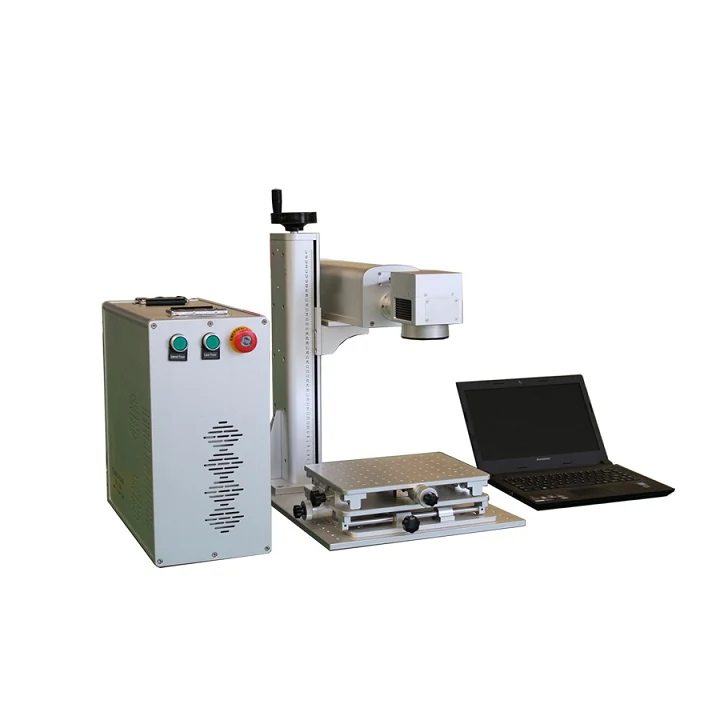

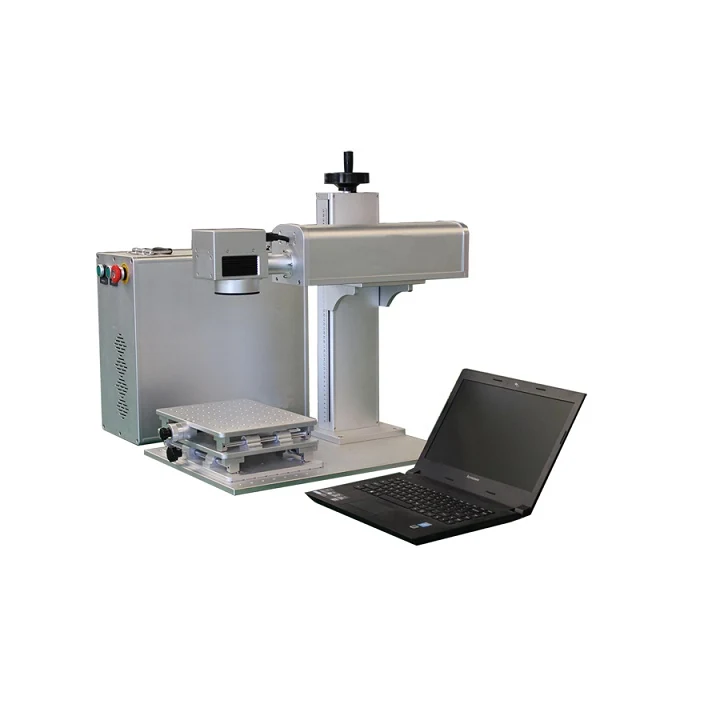

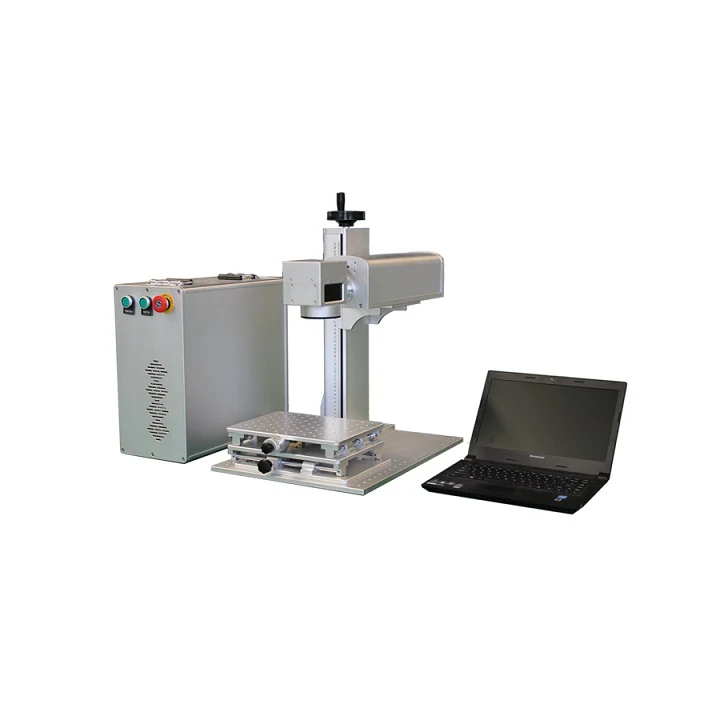

The Portable Fiber Laser Marking Machine is a handheld unit available with 20 W, 30 W, 50 W or 100 W fiber laser sources. It marks metals such as stainless steel, aluminium, brass and titanium with a line width of 0.01-0.1 mm and a depth of 0.01-2 mm depending on material. The standard marking area is 100 x 100 mm, with 200 x 200 mm and 300 x 300 mm options. It runs on 220 V/50 Hz and uses air cooling, making it suitable for workshops that need to mark large or fixed parts without moving them to a stationary table.
- Handheld design allows marking on large, heavy or fixed workpieces that cannot be moved to a table
- Fiber laser source handles a wide range of metals including stainless steel, aluminium, brass and titanium
- Marking depth up to 2 mm enables permanent identification on hard surfaces and tooling
- Line width down to 0.01 mm supports fine detail for serial numbers and logos
- Air cooling eliminates the need for water chillers and reduces maintenance requirements
- Three-year warranty on the whole machine including parts and laser power reduces long-term risk
Where It Is Used
Application Scenarios
- Marking serial numbers on large machinery frames in the assembly area
- Engraving logos on metal furniture or fixtures that are too heavy to move
- Adding identification marks to tools and dies directly at the workbench
- Marking product codes on stainless steel pipes or structural sections
- Surface treatment marking on anodized aluminum or plated components
Buyer Fit
Who It Is For
- Fabricators who need to mark large or fixed structures without moving them to a table
- Tool and die shops requiring permanent identification on hard metal surfaces
- Maintenance teams marking equipment in situ during repairs or inspections
- Small workshops with limited floor space that cannot fit a stationary marking machine
- Dealers offering a versatile marking solution for various metal types and sizes
Process Problems
Problems It Solves
- Moving heavy or large parts to a stationary marking table is time-consuming or impossible
- Traditional marking methods like etching or printing wear off or lack permanence
- Water-cooled machines require chillers and add maintenance complexity for simple marking tasks
- Limited marking depth prevents permanent identification on hard or coated surfaces
- Inflexible marking areas cannot accommodate different part sizes or shapes
Engineering
Technical Features
- Fiber laser source available in 20 W, 30 W, 50 W or 100 W configurations
- Marking area options of 100 x 100 mm, 200 x 200 mm or 300 x 300 mm
- Marking line width of 0.01-0.1 mm for fine detail and small characters
- Marking depth of 0.01-2 mm depending on material hardness and composition
- Air cooling system removes the need for water chillers and associated maintenance
- Handheld form factor allows marking on fixed or oversized workpieces
Specifications
Published Figures For Portable Fiber Laser Marking Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Laser Type | Fiber laser |
|---|---|
| Laser Power | 20W/30W/50W/100W |
| Marking Area | 100*100mm/200*200mm/300*300mm |
| Marking Line Width | 0.01-0.1mm |
| Marking Depth | 0.01-2mm (depending on material) |
| Working Voltage | 220v/50Hz |
| Cooling Way | Air cooling |
| Warranty | 3 Years (includes parts & laser power) |
Materials
Materials It Handles
- Gold, silver, brass, aluminium, steel, stainless steel, iron, titanium
- Carbon steel, mild steel, zinc, spring steel, copper, magnesium
- Galvanized sheet, rare metal, alloy steel
- Aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy
Working Process
From File To Finished Part
Position the handheld marking head over the workpiece surface
Select the appropriate marking area lens for the part size
Load the design or serial number into the marking software
Adjust laser power and speed settings for the specific material
Trigger the marking process to engrave the surface permanently
Inspect the mark for depth and clarity before moving to the next part
Quality Control
Quality Control Before Shipment
- Laser power output is verified before shipping to ensure consistent marking depth
- Marking line width is tested on standard metal samples to confirm precision
- Air cooling system is checked for proper airflow and temperature regulation
- Handheld unit is inspected for structural integrity and cable management
Options
Customisation Options
- Choose laser power from 20 W, 30 W, 50 W or 100 W based on material hardness
- Select marking area of 100 x 100 mm, 200 x 200 mm or 300 x 300 mm
- Voltage configuration can be adjusted for local power standards if required
- Software setup and training materials provided in English for ease of use
Comparison
How It Compares With The Alternatives
| Stationary fiber laser marking machine | The portable unit allows marking on large or fixed parts, but lacks the rigidity and automation of a table system |
|---|---|
| CO2 laser marking machine | Fiber lasers mark metals more effectively, while CO2 is better suited for non-metals like wood or acrylic |
| Inkjet marking | Laser marking is permanent and does not require consumables, whereas inkjet marks can wear off or fade over time |
Operating Notes
Use Guide
- Ensure the workpiece surface is clean and free of oil or dust before marking
- Select the correct marking area lens to match the size of the desired mark
- Adjust laser power and speed settings based on the material type and thickness
- Keep the marking head perpendicular to the surface for consistent depth and width
- Allow the air cooling system to run for a few minutes after continuous use
Buyer Questions
Portable Fiber Laser Marking Machine FAQ
What is the maximum marking depth?
The marking depth ranges from 0.01 to 2 mm, depending on the material being marked.
Can this machine mark on aluminium?
Yes, it is designed for metals including aluminium, stainless steel, brass, and titanium.
What is the warranty period?
The machine comes with a 3-year warranty that includes parts and the laser power source.
Does it require water cooling?
No, this model uses an air cooling system, eliminating the need for water chillers.
What marking areas are available?
Standard options are 100 x 100 mm, 200 x 200 mm, and 300 x 300 mm.
Can I mark on curved surfaces?
The handheld design allows marking on various surfaces, but extreme curvature may affect focus and depth.
