30W Mopa Laser Marking Machine
The 30W Mopa Laser Marking Machine uses a JPT Mopa M7 series fiber laser source with adjustable pulse width and frequency to produce color marks on stainless steel and black marks on anodized aluminum.
Product Overview
What This Machine Is Built To Do
The 30W Mopa Laser Marking Machine uses a JPT Mopa M7 series fiber laser source with adjustable pulse width and frequency to produce color marks on stainless steel and black marks on anodized aluminum. With a repositioning precision of ±0.003 mm and a minimum line width of 0.02 mm, it handles fine detail work on small parts like phone buttons and jewelry. The system includes a Beijing Sino SG7110 galvo head and runs on EZCAD software, providing a stable platform for workshops needing consistent, high-contrast marking without chemical inks or consumables.
- JPT Mopa M7 laser source allows independent control of pulse frequency and width for precise color marking
- Repositioning precision of ±0.003 mm ensures identical marks on every part in a production batch
- Minimum line width of 0.02 mm enables fine engraving on small components like mobile phone buttons
- Marking speed of 7000 mm/s reduces cycle time for high-volume electronics and gift item production
- Air cooling system eliminates the need for external water chillers and simplifies daily maintenance

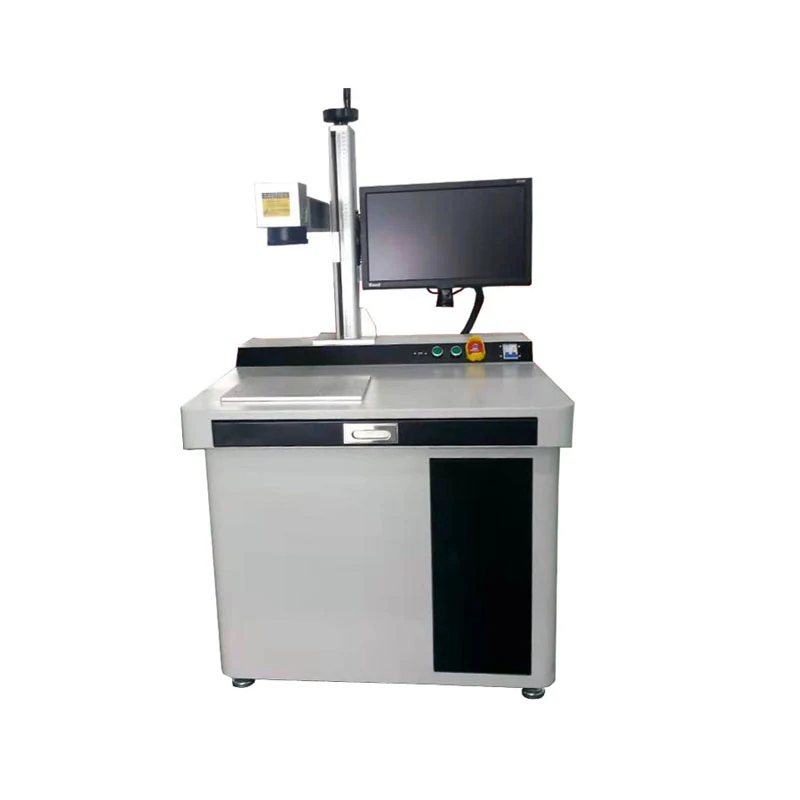

- Double red dot pointer allows operators to set focus length quickly without manual measurement tools
Where It Is Used
Application Scenarios
- Marking colorful logos and serial numbers on stainless steel watch cases and jewelry
- Engraving black text and QR codes on anodized aluminum phone cases and electronic housings
- Labeling plastic components and gift items with permanent, wear-resistant marks
- Marking cylindrical objects like rings or cups using the optional rotary axis fixtures
- Personalizing handicrafts and metal plates with fine detail graphics and small fonts
Buyer Fit
Who It Is For
- Electronics manufacturers marking serial numbers and logos on phone buttons and casings
- Jewelry workshops requiring color marking on stainless steel and silver items
- Advertising signage producers creating permanent metal labels and plates
- Gift item suppliers personalizing products with names and logos on demand
- Machine dealers stocking versatile fiber laser markers for mixed material applications
Process Problems
Problems It Solves
- Color marking on stainless steel is difficult with standard fiber lasers that lack adjustable pulse width
- Ink-based labeling fades or smudges during handling, requiring expensive rework or replacement
- Standard markers struggle with fine details under 0.05 mm, limiting design flexibility on small parts
- Manual focusing slows down production when switching between parts of different heights
- Water-cooled systems add complexity and risk of leaks, whereas this unit uses simple air cooling
Engineering
Technical Features
- JPT Mopa M7 series laser source with 10,000-hour service life and adjustable pulse width

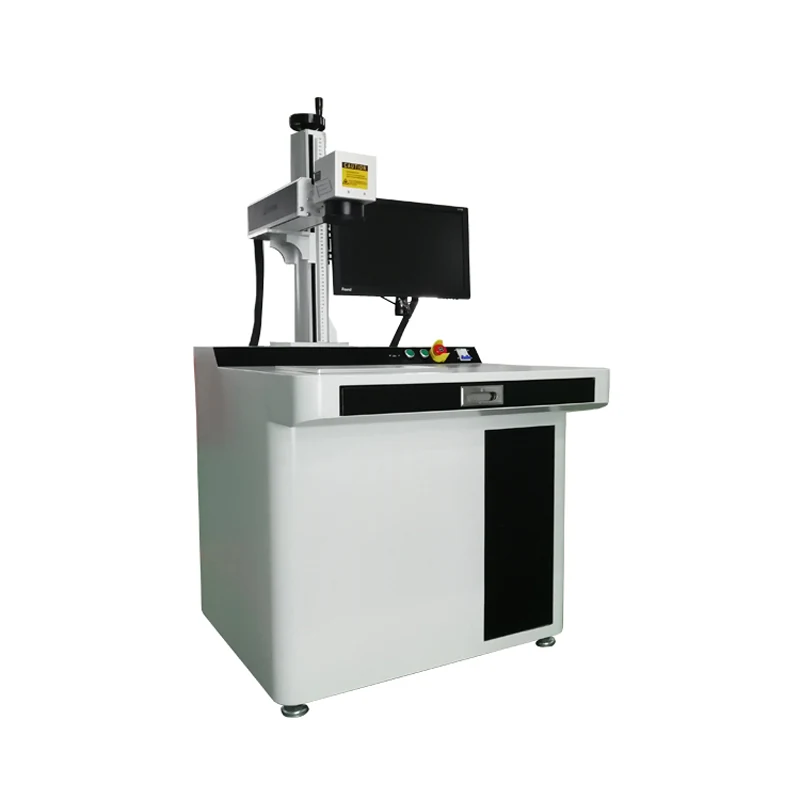

- Beijing Sino SG7110 galvo head for high positioning accuracy and strong anti-interference ability
- Double red dot pointer system for fast and accurate focal length setting
- Industrial computer with high integration and stability for continuous operation
- Beijing EZCAD software for easy design import and parameter control
- Air cooling system that requires no water chiller maintenance or consumables
Specifications
Published Figures For 30W Mopa Laser Marking Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Laser Power | 30 W |
|---|---|
| Laser Source | JPT Mopa M7 series |
| Galvo Head | Beijing Sino SG7110 |
| Software | Beijing EZCAD |
| Laser Wavelength | 1064 nm ±1 nm |
| Pulse Repetition Rate | 1 ~ 4000 kHz |
| Reposition Precision | ±0.003 mm |
| Minimum Line Width | 0.02 mm |
| Minimum Characters | 0.2 mm |
| Marking Speed | 7000 mm/s |
| Marking Depth | 0.001-0.2 mm / 0.001-1 mm |
| Marking Scope | 110x110 mm / 150x150 mm / 175x175 mm |
| Other Marking Scope | 200x200 mm / 300x300 mm |
| Z Axis Height | 470 mm |
| Power Supply | AC 110V/220V 50Hz/60Hz |
| Rated Power | 500 W |
| Cooling System | Air cooling |
Materials
Materials It Handles
- Stainless steel
- Anodized aluminum
- Plastic
- Metal
- Non-metal
Working Process
From File To Finished Part
Import design file into Beijing EZCAD software on the industrial computer
Place part on the worktable and adjust Z-axis height using the double red dot pointer
Set laser parameters for pulse width and frequency to match material and desired color
Start marking using the foot pedal or software interface
Inspect the mark for color depth and position accuracy
Remove part and clean the lens if necessary
Quality Control
Quality Control Before Shipment
- Laser source tested for 10,000-hour service life rating
- Galvo head checked for positioning accuracy and anti-interference stability
- Repositioning precision verified at ±0.003 mm before shipping
- Protective goggles included to ensure operator safety during testing
Options
Customisation Options
- Optional D80 rotary axis for marking rings and small cylindrical objects
- Optional Roller Rotary Fixture 230 mm for larger cylindrical parts
- Choice of 20W, 30W, 60W or 100W power options
- Selectable marking scopes: 110x110 mm, 150x150 mm, 175x175 mm, 200x200 mm, 300x300 mm
- Voltage configuration for 110V or 220V markets
Comparison
How It Compares With The Alternatives
| Standard Q-switched fiber laser marker | The Mopa source allows adjustable pulse width, enabling color marking on stainless steel which standard markers cannot do |
|---|---|
| CO2 laser marker | This fiber laser marks metals and plastics with higher resolution but cannot mark glass or acrylic as effectively as CO2 |
| Inkjet printer | Laser marking is permanent and requires no consumables like ink or solvents, though the initial machine cost is higher |
Operating Notes
Use Guide
- Use the double red dot pointer to align the focal length before starting a new batch
- Adjust pulse width and frequency in EZCAD software to achieve specific colors on stainless steel
- Clean the field lens regularly to prevent dust from reducing marking power
- Wear the provided protective goggles during operation to shield eyes from 1064 nm laser light
- Ensure the air cooling system vents are clear of obstructions to maintain stable laser output
Buyer Questions
30W Mopa Laser Marking Machine FAQ
What is the marking area of this machine?
Standard marking scopes are 110x110 mm, 150x150 mm, and 175x175 mm. Optional scopes of 200x200 mm and 300x300 mm are also available.
Can this machine mark color on stainless steel?
Yes, the JPT Mopa M7 laser source allows independent control of pulse frequency and width, which is required for producing color marks on stainless steel.
What is the minimum character size?
The minimum character size is 0.2 mm, with a minimum line width of 0.02 mm, suitable for fine serial numbers and logos.
Does it require a water chiller?
No, the 30W model uses an air cooling system, which simplifies setup and eliminates the need for distilled water maintenance.
Can I mark cylindrical objects?
Yes, optional rotary axes are available: a D80 rotary axis for rings and a Roller Rotary Fixture 230 mm for larger cylinders.
What software does it use?
The machine runs on Beijing EZCAD software, which is compatible with standard design files and allows easy parameter adjustment.
