30W CCD Laser Marking Machine
The 30W CCD Laser Marking Machine is a fiber laser marker equipped with a high-resolution industrial camera for vision positioning. It uses a 1064nm wavelength fiber source, available in 30W or 50W power, to mark metals and hard plastics.
Product Overview
What This Machine Is Built To Do

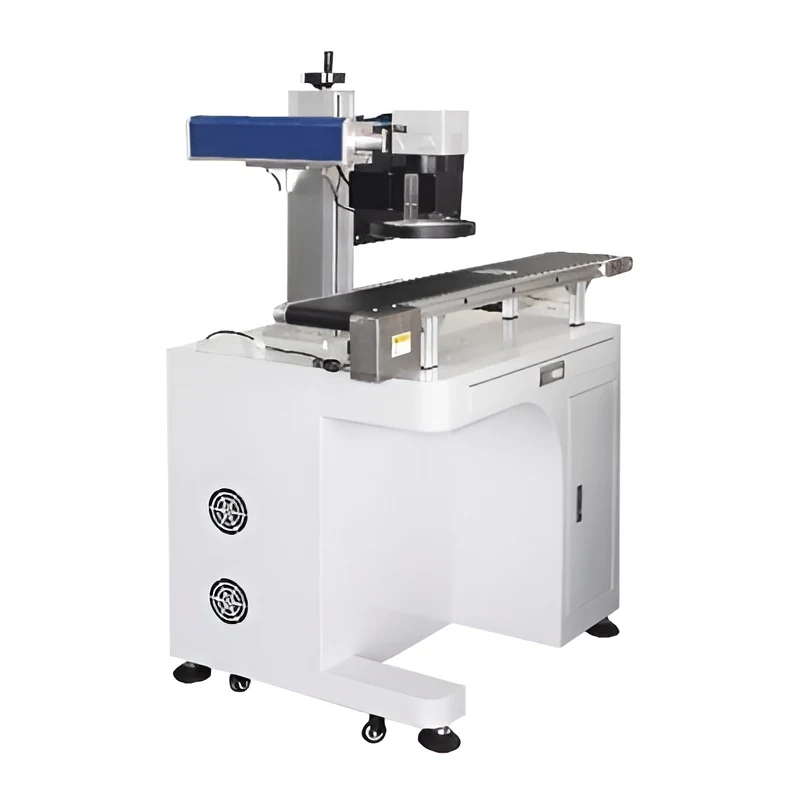

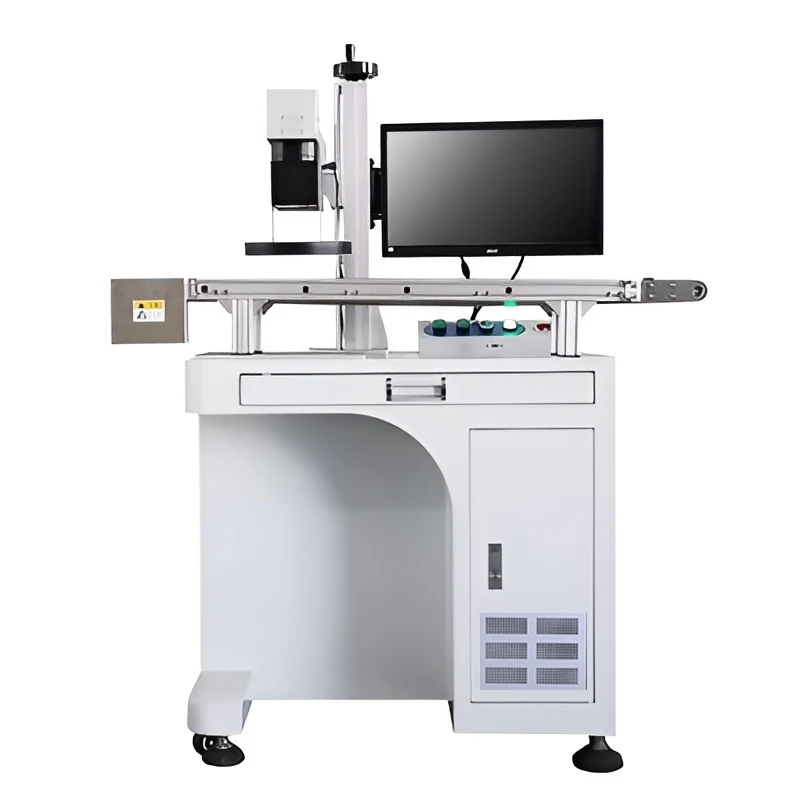

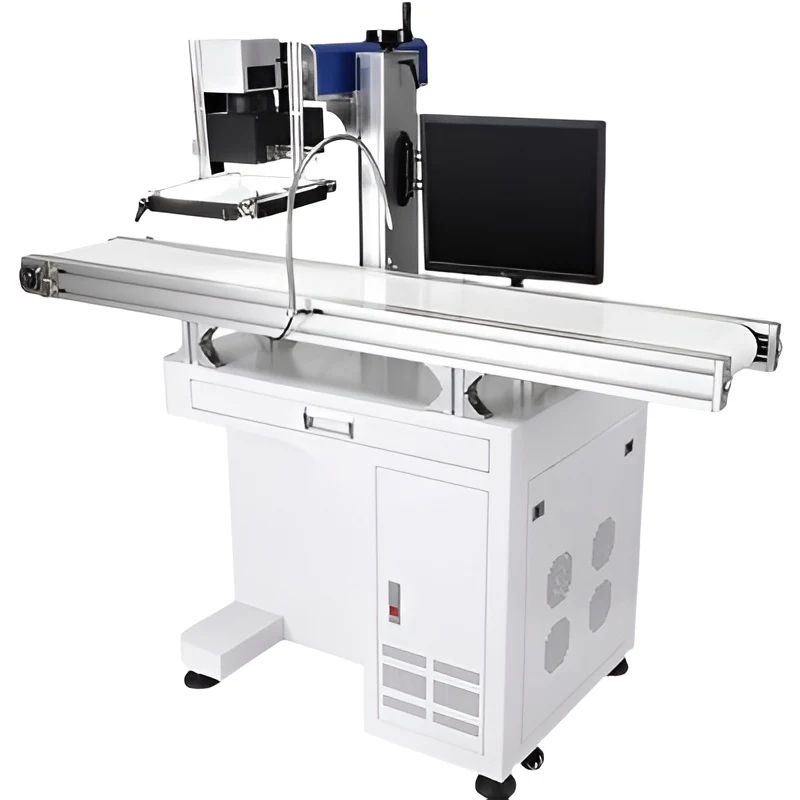

The 30W CCD Laser Marking Machine is a fiber laser marker equipped with a high-resolution industrial camera for vision positioning. It uses a 1064nm wavelength fiber source, available in 30W or 50W power, to mark metals and hard plastics. The system achieves 0.003mm repeatability accuracy and a minimum line width of 0.01mm. The integrated CCD camera captures real-time coordinates to correct for product placement errors, eliminating the need for precise manual fixtures. The machine features a 500mm lifting pillar with a hand wheel for focus adjustment and supports conveyor integration for continuous assembly line operation.
- CCD vision system identifies product position automatically, removing the need for expensive precision fixtures
- 0.003mm repeatability accuracy ensures consistent mark placement across thousands of parts
- Integrated conveyor belt design allows seamless connection to existing assembly lines
- High-resolution industrial camera captures dynamic images to calculate real-time coordinates
- 500mm lifting pillar with hand wheel provides easy focus adjustment for varied product heights
- Air cooling system eliminates the need for water chillers, reducing maintenance requirements
Where It Is Used
Application Scenarios
- Electronics manufacturers marking serial numbers on PCBs with slight placement variations
- Automotive suppliers marking engine parts on a moving conveyor line
- Hardware workshops engraving logos on metal tools without precise jigs
- Jewelry makers marking rings and pendants where exact positioning is difficult
- Packaging lines requiring variable data printing on moving products
Buyer Fit
Who It Is For
- Production managers needing to automate marking on existing assembly lines
- Machine dealers looking for a fiber marker with visual positioning capabilities
- Fabricators marking parts with inconsistent placement tolerances
- Quality control teams requiring permanent, high-contrast traceability marks
Process Problems
Problems It Solves
- Manual positioning errors cause misaligned marks on high-volume production runs
- Custom fixtures for every part type increase setup time and cost
- Static markers cannot handle products moving on a conveyor belt
- Low-resolution cameras fail to detect small parts or complex geometries
- Water-cooled systems require regular maintenance and are prone to leakage
Engineering
Technical Features
- High-resolution industrial CCD camera for real-time coordinate calculation
- Fiber laser source with 1064nm wavelength and 30W or 50W power options
- Precision Z-axis ruler with clearly visible millimeter scales for height setting
- Lifting hand wheel mechanism for simplified focus adjustment
- Conveyor belt integration capability for continuous automated marking
- Air cooling system for maintenance-free operation
Specifications
Published Figures For 30W CCD Laser Marking Machine
Every value below is taken from the machine data sheet. Where a range is given the exact figure depends on the model and power you order.
| Laser Power | 30W / 50W |
|---|---|
| Laser Source | Fiber laser source |
| Wavelength | 1064nm |
| Work Size | 100*100mm - 300*300mm (Option) |
| Working Voltage | 0.5KW / AC220V / 50Hz (Option) |
| Lifting Pillar | 500mm (Customize) |
| Cooling System | Air Cooling |
| Power Range | 1% - 100% |
| Minimum Character | 0.2mm |
| Minimum Line Width | 0.01mm |
| Repeatability Accuracy | 0.003mm |
| Resolution | 0.001mm |
| Marking Speed | 0 - 7000mm/s |
| Laser Modulation Frequency | 20kHz ~ 80kHz |
| CCD Camera | Yes, Industrial camera |
Materials
Materials It Handles
- Metals including stainless steel, aluminum, brass and copper
- Hard plastics and ABS materials
- Silicon wafers and electronic components
- Coated surfaces requiring high-contrast marking
Working Process
From File To Finished Part
Load parts onto the conveyor or static work surface
CCD camera captures the product position and calculates coordinates
Software aligns the marking pattern to the detected position
Fiber laser marks the surface at speeds up to 7000mm/s
Adjust focus using the lifting hand wheel if product height varies
Unload marked parts or continue to the next station on the line
Quality Control
Quality Control Before Shipment
- CCD system verifies product position before marking begins
- Repeatability accuracy is maintained at 0.003mm across the field
- Air cooling prevents thermal drift during continuous operation
- Z-axis ruler allows precise verification of working distance
Options
Customisation Options
- Select 30W or 50W fiber laser source based on depth requirements
- Choose work area size from 100x100mm to 300x300mm
- Customize lifting pillar height beyond the standard 500mm
- Integrate with specific conveyor speeds and assembly line protocols
Comparison
How It Compares With The Alternatives
| Standard fiber laser marker without CCD | The CCD version handles inconsistent part placement automatically, reducing fixture costs |
|---|---|
| CO2 laser marker | The 1064nm fiber source is better for metals and hard plastics, while CO2 suits organics |
| Inkjet printer | Laser marking is permanent and resistant to abrasion and solvents, unlike ink |
Operating Notes
Use Guide
- Ensure the CCD camera lens is clean for accurate position detection
- Adjust the lifting hand wheel to set the correct focal distance for the material
- Verify the conveyor speed matches the marking cycle time to avoid overlap
- Use air cooling vents clearance to prevent overheating during long runs
- Calibrate the camera coordinates periodically to maintain 0.003mm repeatability
Buyer Questions
30W CCD Laser Marking Machine FAQ
What is the maximum marking area?
The standard work size options range from 100x100mm to 300x300mm.
How accurate is the positioning?
The machine achieves a repeatability accuracy of 0.003mm with a resolution of 0.001mm.
Can it mark moving products?
Yes, the integrated conveyor belt design allows for continuous marking on assembly lines.
What is the minimum character size?
The minimum character size is 0.2mm and the minimum line width is 0.01mm.
Does it require water cooling?
No, this model uses an air cooling system, which reduces maintenance needs.
What is the marking speed?
The laser marking speed ranges from 0 to 7000mm/s depending on the pattern complexity.
