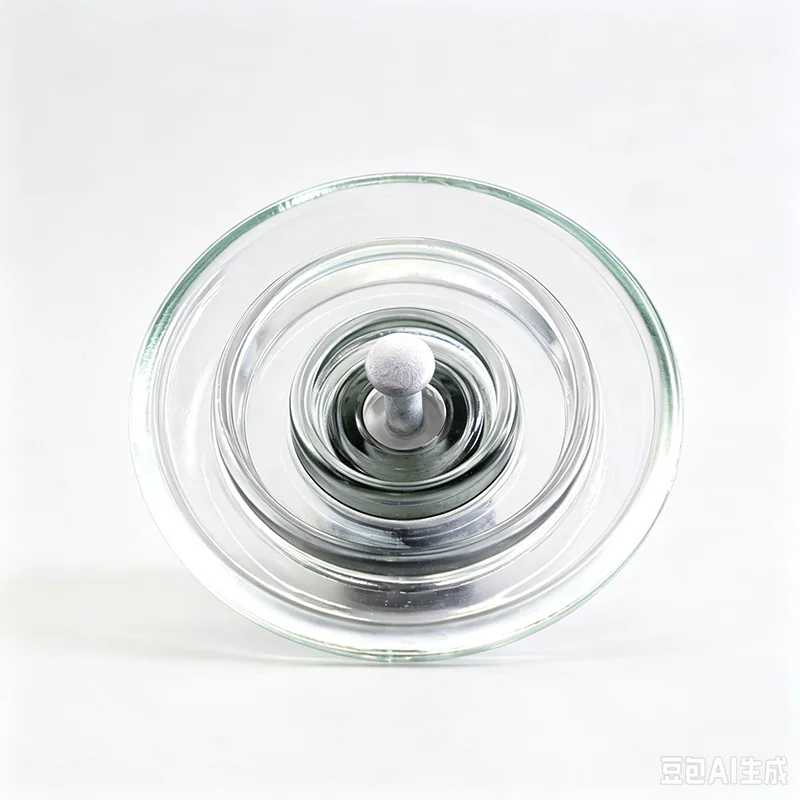

U40BP High Voltage Power Line Toughened Glass Insulator
High quality 40kn Suspension Glass Insulator U40b/110 Transparent Hot sale 40kn Suspension Glass Insulator U40b/110 china Factory direct prize U40BP 40kN Toughened Glass Insulator Anti-Pollution Type 40kN Fog Type Glass Insulator U40BP for Distribution Line IEC Standard U40BP Suspension Glass Disc Insulator High Creepage U40BP Glass Insul
- Type codeU40B
- Mechanical failing load40 kN
- Routine test load20 kN
- Nominal diameter D178 mm
- Unit spacing H110 mm
- Creepage distance L190 mm
- Coupling size11 mm
- Net weight per unit2.5 kg
Made by Jiangxi Huayao Electric Co., Ltd. in Luxi County, Jiangxi, China. Third-party inspection by Intertek, BV or SGS welcome.
What This Type Is For
U40BP high-voltage toughened glass insulator is a core insulation product designed by Huayao Electric specifically for medium and high-voltage transmission lines as well as power distribution projects in heavily polluted areas.As a 40kN class anti-pollution insulator, it precisely meets the insulation and mechanical requirements of medium-voltage power distribution networks, making it a cost-effective choice to ensure the safe and stable operation of 10kV~35kV power lines under complex working conditions.
Coastal salt fog, cement dust and chemical fallout bridge a standard shed and cause flashover. A deeper fog profile buys creepage distance where washing is impractical.
What You Get With This Unit
Rated strength
Specified mechanical failing load of 40 kN, routine tested at 20 kN.
Creepage per unit
190 mm of leakage path in a single unit, so string creepage can be budgeted without guesswork.
Coupling
11 mm ball and socket coupling to match existing line hardware.
Shipping weight
2.5 kg net per unit, which sets crate weight and freight cost for the string.
Material
Toughened glass shell with hot-dip galvanised cap and pin, cemented and cured.
Traceability
Routine tensile load test on every piece, with the process record kept against the production batch.
Main Technical Parameters
The full parameter table this type belongs to, copied from our factory data. The highlighted row is this item.
| IEC type | Diameter D (mm) | spacing H (mm) | creepage distance L(mm) | size of coupling (mm) | Mechnical failing load (kN) | Mechnical routine test (kN) | Power frequency withstand voltage DRY (kV) | Power frequency withstand voltage WET (kV) | lighting impulse withstand voltage (kV) | Min power frequency puncture voltage (kV) | Net weight per unit (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| U40B | 178 | 110 | 190 | 11 | 40 | 20 | 50 | 30 | 75 | 90 | 2.5 |
| U40BP | 175 | 110 | 300 | 11 | 40 | 20 | 80 | 40 | 100 | 130 | 3.2 |
Dimensions On One Sheet
The factory dimensional drawing shows shed profile, unit spacing, creepage path and the coupling detail. PDF drawings for the common types are on the downloads page, and a drawing for this type can be issued before you place an order.
Export Projects On Record
U40BP Questions
Straight answers to the questions buyers ask before a first order.
What is the mechanical failing load of U40BP?
The specified mechanical failing load is 40 kN, and the routine test load is 20 kN.
How much creepage distance does this unit give me?
One unit gives 190 mm of creepage distance at 110 mm unit spacing. Multiply by the number of units in the string and compare the total against the mm per kV your pollution class requires.
Which coupling size does it use?
The ball and socket coupling is 11 mm. Confirm this against the fittings already specified for the project so the string assembles without adapters.
Which standards does this toughened glass insulator follow?
Designs follow GB, ANSI, BS, DIN, AS and IEC dimensions. Type test reports are available from Xi'an High Voltage Apparatus Research Institute Co., Ltd. and the National Ceramic Product Quality Inspection and Testing Center.
Can I have the goods inspected before shipment?
Yes. Buyers are welcome to inspect in person, and Huayao accepts third-party pre-shipment inspection appointed by the buyer, including Intertek, BV and SGS.
What is the production capacity behind this item?
The plant runs one natural-gas electric melting kiln with a melting area of about 50 m² and two production lines, with an annual capacity of six million pieces of AC and DC glass insulators. Stock is held on common types.
