Coastal and Industrial Pollution Zones
Anti-fog and multi shed profiles for salt fog, cement dust and chemical fallout.
The Three Problems On This Kind Of Route
Salt and dust films bridge a standard shed and cause
Salt and dust films bridge a standard shed and cause flashover in damp weather.
Live washing is expensive and often impossible on a
Live washing is expensive and often impossible on a busy line.
Creepage has to rise without lengthening the insulat
Creepage has to rise without lengthening the insulator string.
What Huayao Brings To The Specification

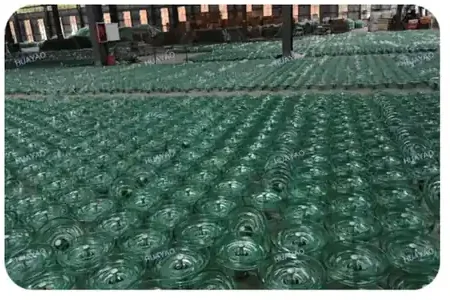

Fog profile discs with extended creepage distance, up to 550
Fog profile discs with extended creepage distance, up to 550 mm on the heaviest types.
Double shed and multi umbrella profiles that alternate large
Double shed and multi umbrella profiles that alternate large and small sheds to add leakage path inside the same unit spacing.
Glass surfaces stay smooth after arc burns and do not age li
Glass surfaces stay smooth after arc burns and do not age like a glazed porcelain surface.
Categories Specified For This Application
Pollution Resistant Type Glass Insulator
25 products →
Multi Umbrella Type Glass Insulator
8 products →
PSD70E 70kN EMS Anti Fog Type Corrosion Proof Disc Insulator Glass Type
View specifications →
PSV160A 160kN EMS Anti Fog Type Corrosion Proof Disc Insulator Glass Type
View specifications →
PSV120B 120kN EMS Anti Fog Type Corrosion Proof Disc Insulator Glass Type
View specifications →U100BP/146D Double-wing Anti-pollution Disc Toughened Glass Insulator
View specifications →U70BLD/U70BSD UHV AC 70kN Disk Suspension Toughened Glass Insulator
View specifications →
Double-shed Disk Suspension Toughened Glass Insulator UG70B146/450D/16R
View specifications →From Order To Port
Type confirmation
Type code, load class, creepage and coupling agreed in writing before production.
Production slot
Booked against an annual capacity of six million pieces on two lines.
Routine testing
Every insulator takes a tensile load test; failures are removed and traced.
Inspection
Buyer visit or third-party inspection by Intertek, BV or SGS.
Packing and shipment
Wooden crates for sea freight, documents issued with the bill of lading.
Coastal and Industrial Pollution Zones Questions
Straight answers to the questions buyers ask before a first order.
What do you supply for coastal and industrial pollution zones?
Anti-fog and multi shed profiles for salt fog, cement dust and chemical fallout.
How do I confirm the creepage distance I need?
Take the specified creepage in mm per kV for the pollution class, multiply by the system voltage, then divide by the creepage of one unit to get the number of units in the string. Per-unit creepage is published on every product page.
Which documents come with the shipment?
Packing list, routine test record for the batch and, where the buyer asks for it, the third-party inspection report from Intertek, BV or SGS.
Can you supply both glass and porcelain on one order?
Yes. Both families are made in the same plant in Luxi County, so a mixed scope ships together.
Send Us The Route Data For Your Coastal and Industrial Pollution Zones Project
Voltage, span, conductor, pollution class and the load class in the specification. We will return a type list with drawings.
