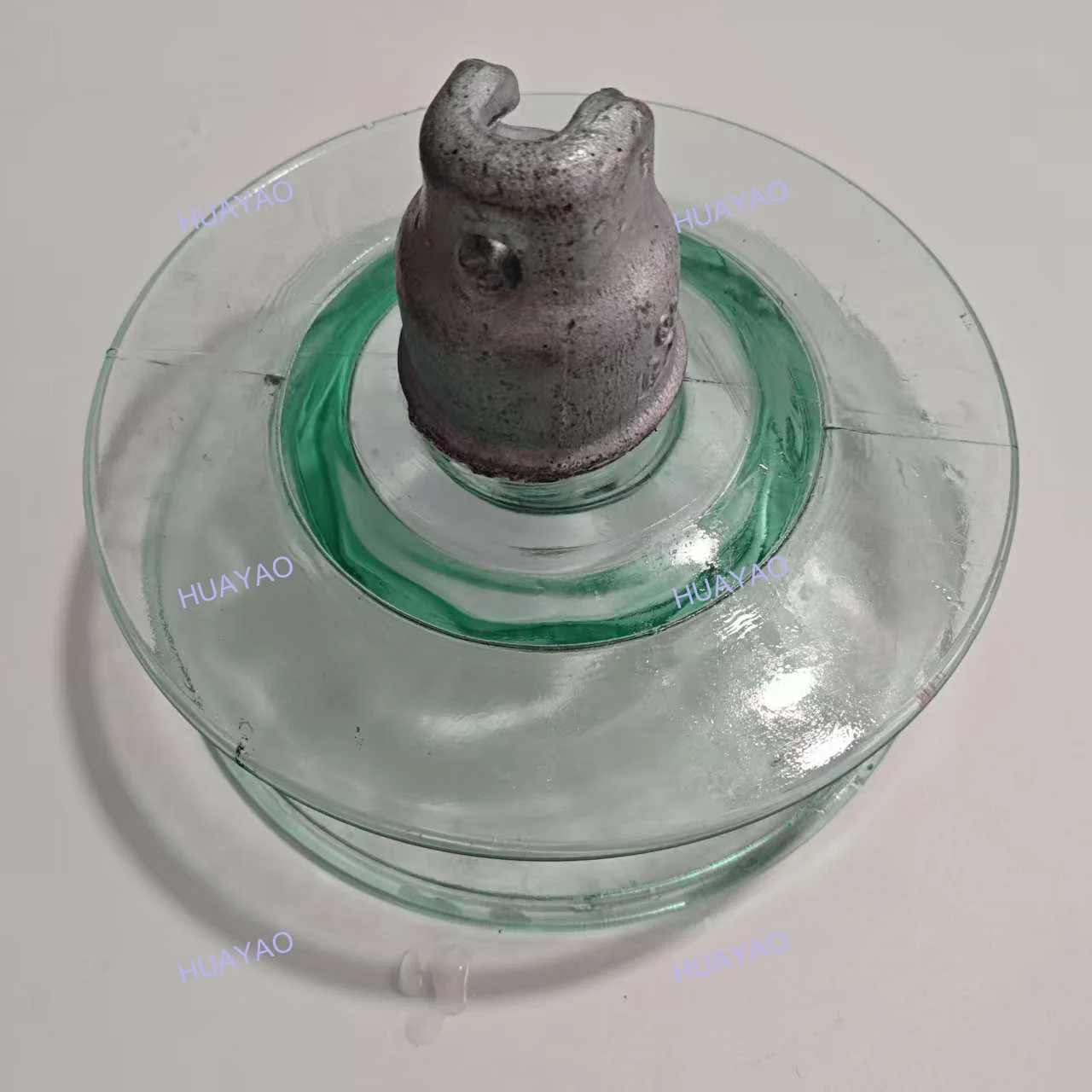

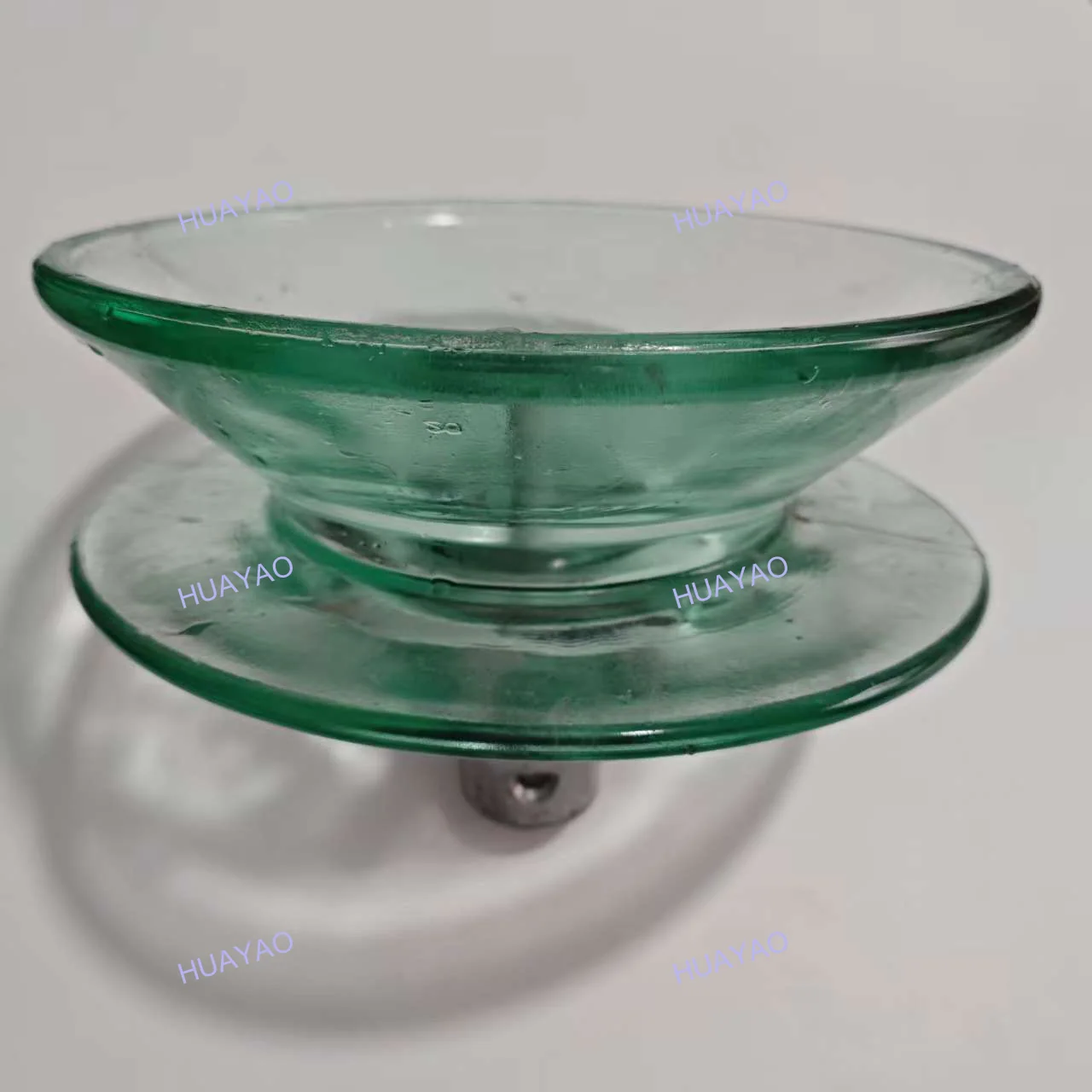

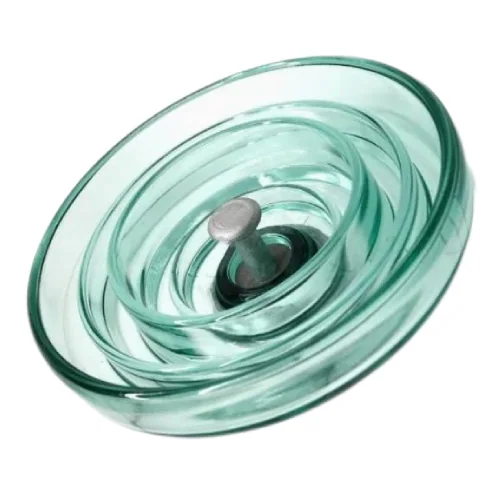

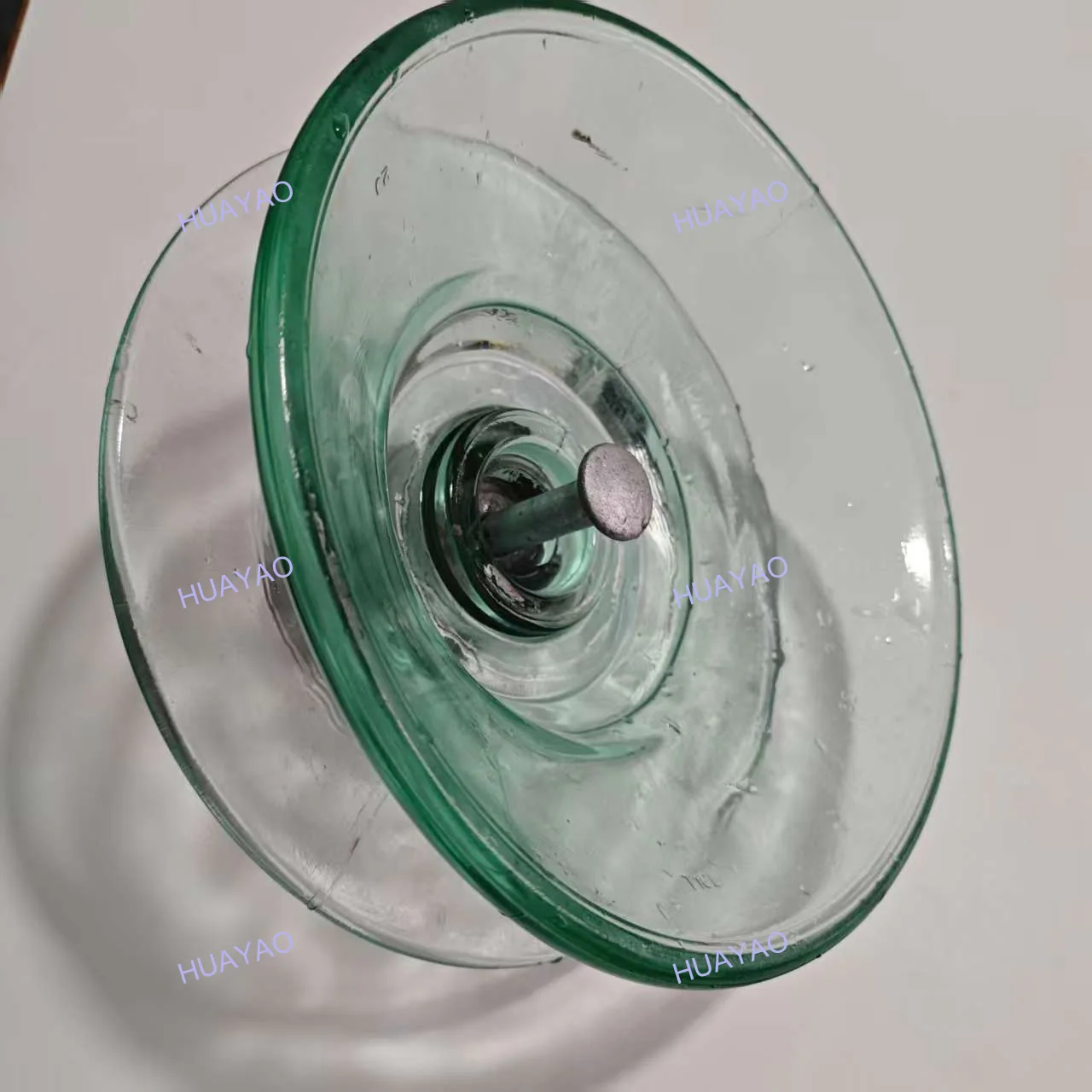

U100BP/146D Double-wing Anti-pollution Disc Toughened Glass Insulator
Double-wing Suspension Insulator toughened Glass Insulator UG100B/146/450D high voltage suspension double-wing 100 kN toughened glass insulator UG100B/146/450D glass insulators
Made by Jiangxi Huayao Electric Co., Ltd. in Luxi County, Jiangxi, China. Third-party inspection by Intertek, BV or SGS welcome.
What This Type Is For
Double-wing Suspension Insulator toughened Glass Insulator UG100B/146/450D high voltage suspension double-wing 100 kN toughened glass insulator UG100B/146/450D glass insulators
When creepage has to rise but the tower window is fixed, alternating large and small sheds add leakage path within the same unit spacing.
What You Get With This Unit
Material
Toughened glass shell with hot-dip galvanised cap and pin, cemented and cured.
Traceability
Routine tensile load test on every piece, with the process record kept against the production batch.
Main Technical Parameters
The full parameter table this type belongs to, copied from our factory data. The highlighted row is this item.
| Type | Diameter D (mm) | spacing H (mm) | creepage distance L(mm) | size of coupling (mm) | Mechnical failing load (kN) | Mechnical routine test (kN) | Power frequency withstand voltage DRY (kV) | Power frequency withstand voltage WET (kV) | lighting impulse withstand voltage (kV) | Min power frequency puncture voltage (kV) | Net weight per unit (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UG70B146/450D 16R | 280 | 146 | 450 | 16 | 70 | 35 | 80 | 45 | 120 | 130 | 6.30 |
| UG100B146/450D 16R | 280 | 146 | 450 | 16 | 100 | 50 | 80 | 45 | 120 | 130 | 6.30 |
| UG120B146/450D 16R | 280 | 146 | 450 | 16 | 120 | 60 | 80 | 45 | 120 | 130 | 6.30 |
| UG160B170450D 20R | 300 | 170 | 450 | 20 | 160 | 80 | 85 | 45 | 130 | 130 | 8.40 |
| UG210B170/450D 20R | 300 | 170 | 450 | 20 | 210 | 105 | 85 | 45 | 130 | 130 | 9.00 |
| UG300B195/480D 24R | 330 | 195 | 480 | 24 | 300 | 150 | 85 | 50 | 130 | 130 | 13.00 |
Dimensions On One Sheet
The factory dimensional drawing shows shed profile, unit spacing, creepage path and the coupling detail. PDF drawings for the common types are on the downloads page, and a drawing for this type can be issued before you place an order.
Export Projects On Record
U100BP/146D Questions
Straight answers to the questions buyers ask before a first order.
Which standards does this toughened glass insulator follow?
Designs follow GB, ANSI, BS, DIN, AS and IEC dimensions. Type test reports are available from Xi'an High Voltage Apparatus Research Institute Co., Ltd. and the National Ceramic Product Quality Inspection and Testing Center.
Can I have the goods inspected before shipment?
Yes. Buyers are welcome to inspect in person, and Huayao accepts third-party pre-shipment inspection appointed by the buyer, including Intertek, BV and SGS.
What is the production capacity behind this item?
The plant runs one natural-gas electric melting kiln with a melting area of about 50 m² and two production lines, with an annual capacity of six million pieces of AC and DC glass insulators. Stock is held on common types.
What happens if a glass shell is damaged in service?
A toughened glass shell shatters and leaves the cap and pin carrying the line, so a zero-value unit can be spotted on a ground or helicopter patrol instead of a hot-line test.
