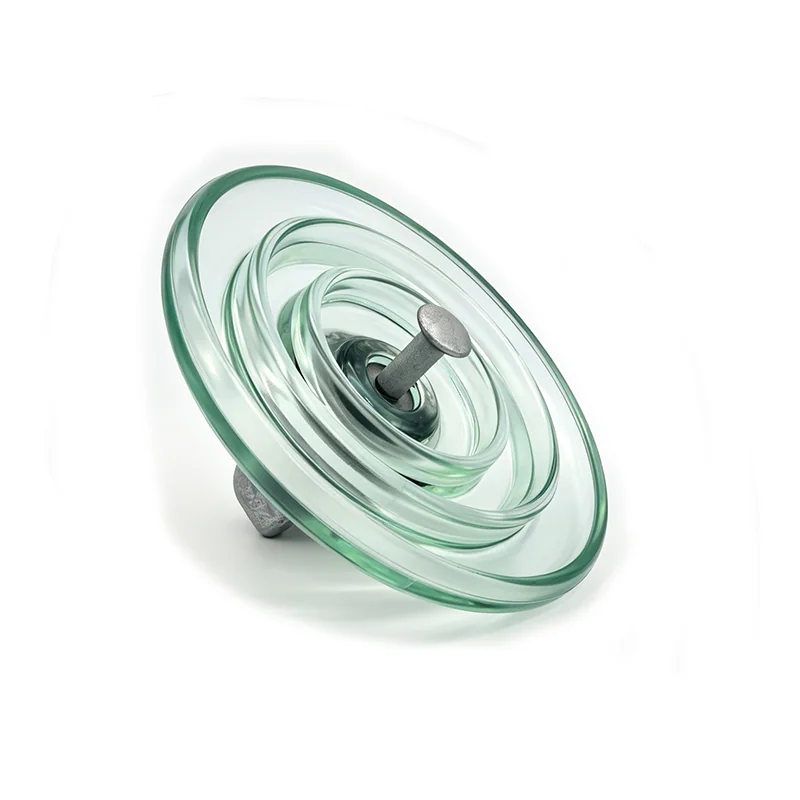

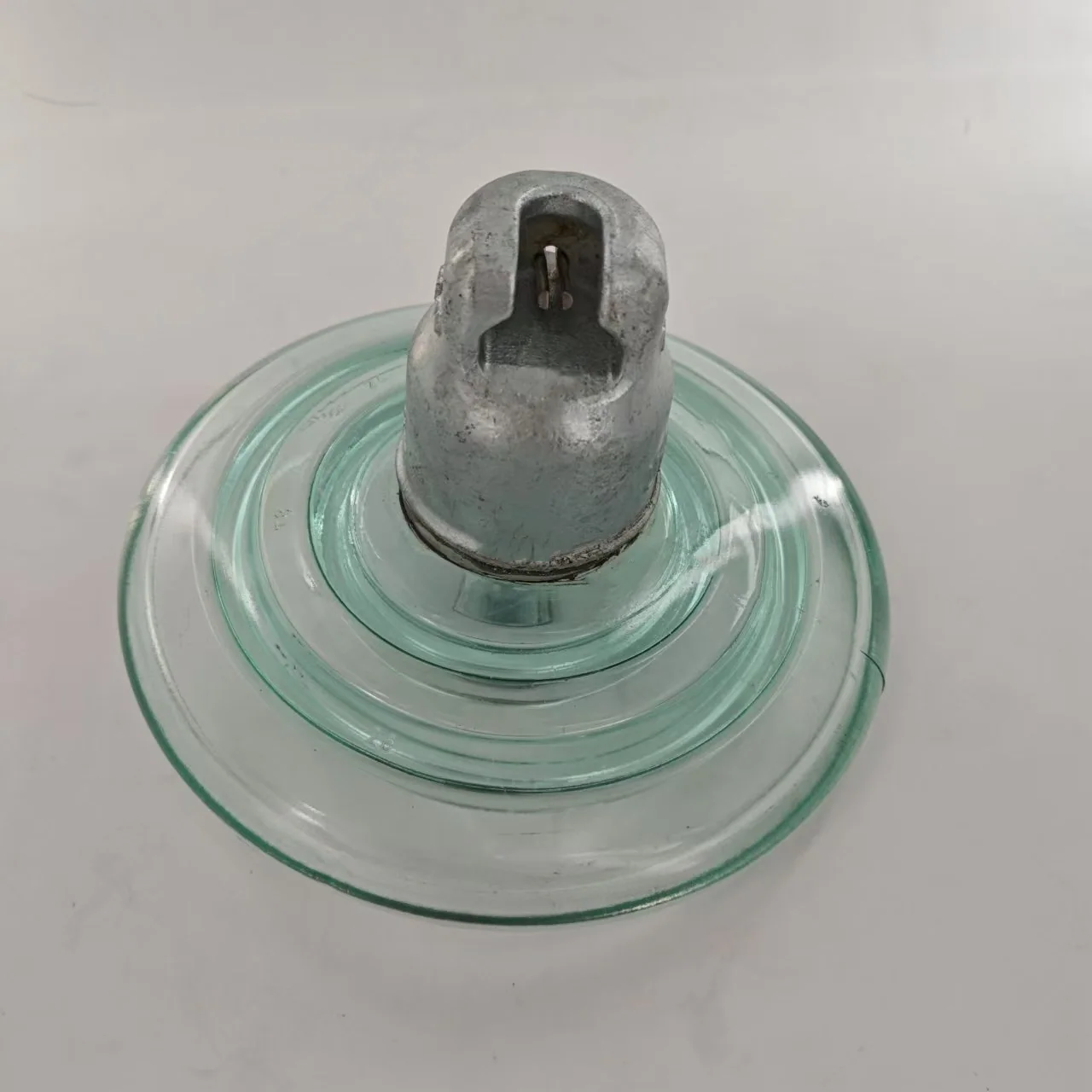

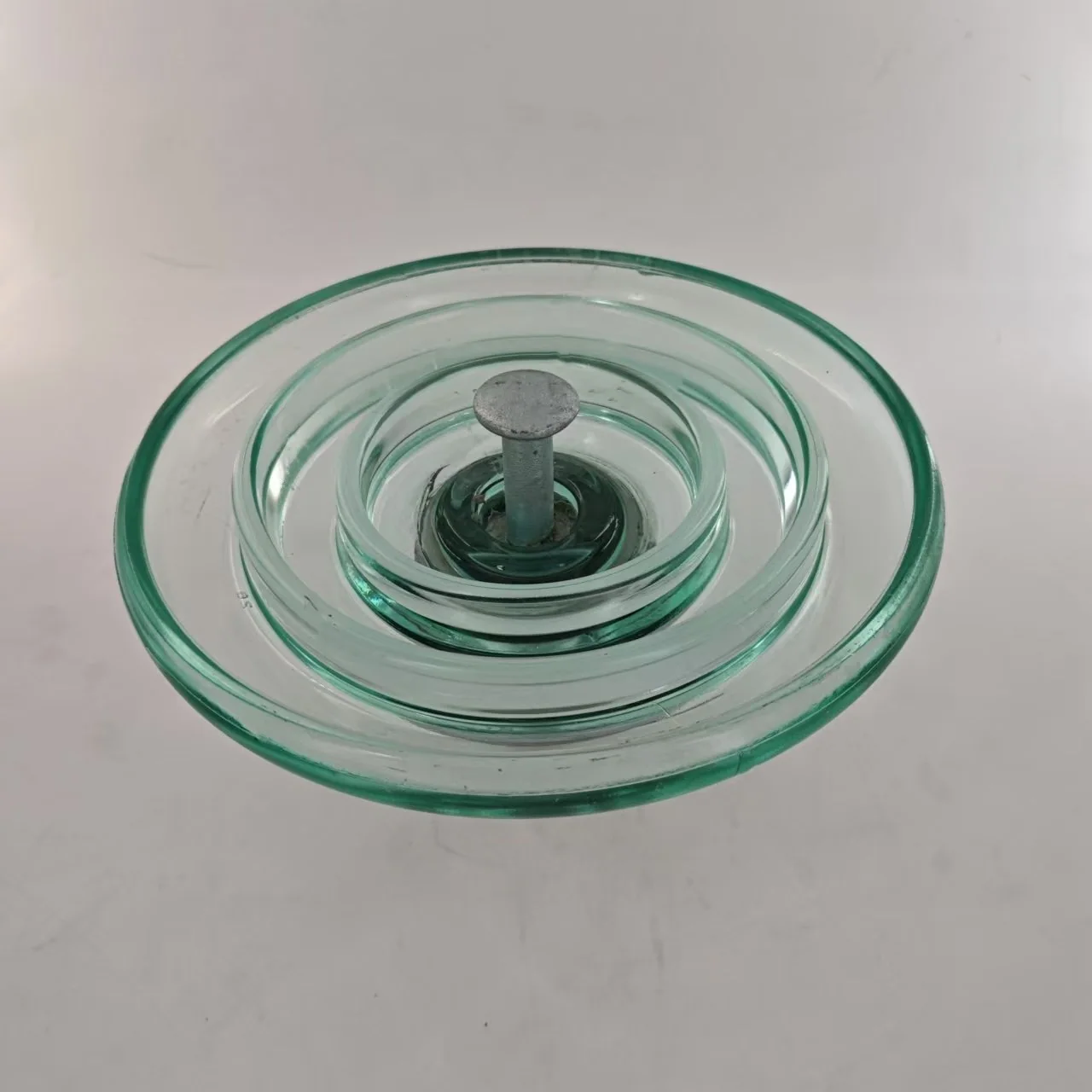

550kN U550B Ultra High Voltage Toughened Glass Insulator
550kN standard disc suspension glass insulator U550BL U550B 550kN Toughened Glass Insulator | Ultra High Strength Suspension Type 550kN Suspension Glass Insulator U550B | IEC Standard for 500kV Power Line Ultra High Voltage U550B Glass Insulator | 550kN Heavy-Duty Line Fitting Huayao strictly complies with GB, ANSI, BS, DIN, AS, IEC stand
- Materialfiberglass
- Applicationhigh voltage
- Rated voltage33kV
- UsageTransmission lines
- CertificateISO9001
- StandardIEC60383
- ColorJade green
Made by Jiangxi Huayao Electric Co., Ltd. in Luxi County, Jiangxi, China. Third-party inspection by Intertek, BV or SGS welcome.
What This Type Is For
U550B 550kN toughened glass suspension insulator complies with IEC 60305 & IEC 60383 standards. Ultra-high mechanical strength, full hot-dip galvanized fittings, self-breaking inspection and superior anti-pollution performance. Designed for 500kV UHV transmission lines and large-span power projects. Bulk supply & OEM available.
Glass Standard Profile Suspension Insulators LXP-550 / U550B
Most line kilometres do not need a fog profile. The standard shed keeps cost and string weight down where pollution is light.
What You Get With This Unit
Material
Toughened glass shell with hot-dip galvanised cap and pin, cemented and cured.
Traceability
Routine tensile load test on every piece, with the process record kept against the production batch.
Main Technical Parameters
The full parameter table this type belongs to, copied from our factory data. The highlighted row is this item.
| IEC type | Diameter D (mm) | spacing H (mm) | creepage distance L(mm) | size of coupling (mm) | Mechnical failing load (kN) | Mechnical routine test (kN) | Power frequency withstand voltage DRY (kV) | Power frequency withstand voltage WET (kV) | lighting impulse withstand voltage (kV) | Min power frequency puncture voltage (kV) | Net weight per unit (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| U40B | 178 | 110 | 185 | 11 | 40 | 20 | 40 | 20 | 50 | 130 | 2.5 |
| U70BL/146 | 255 | 146 | 320 | 16 | 70 | 35 | 70 | 40 | 100 | 130 | 3.5 |
| U70BS/127 | 255 | 127 | 320 | 16 | 70 | 35 | 70 | 40 | 100 | 130 | 3.5 |
| U100BL/146 | 255 | 146 | 320 | 16 | 100 | 50 | 70 | 40 | 100 | 130 | 3.5 |
| U100BS/127 | 255 | 127 | 320 | 16 | 100 | 50 | 70 | 40 | 100 | 130 | 3.5 |
| U120B/146 | 255 | 146 | 320 | 16 | 120 | 60 | 70 | 40 | 100 | 130 | 3.6 |
| U120B/127 | 255 | 127 | 320 | 16 | 120 | 60 | 70 | 40 | 100 | 130 | 3.6 |
| U160BL/170 | 280 | 170 | 400 | 20 | 160 | 80 | 75 | 45 | 110 | 130 | 6.5 |
| U160B/155 | 280 | 155 | 450 | 20 | 160 | 80 | 75 | 45 | 110 | 130 | 6.3 |
| U160BS/146 | 280 | 146 | 400 | 20 | 160 | 80 | 75 | 45 | 110 | 130 | 6.3 |
| U210B/170 | 280 | 170 | 460 | 20 | 210 | 105 | 85 | 45 | 125 | 130 | 6.9 |
| U210B/170 | 280 | 170 | 400 | 20 | 210 | 105 | 75 | 45 | 110 | 130 | 6.9 |
| U240B/170 | 280 | 170 | 400 | 24 | 240 | 120 | 75 | 45 | 110 | 130 | 6.9 |
| U240B/170 | 280 | 170 | 460 | 24 | 240 | 120 | 85 | 50 | 110 | 130 | 6.9 |
| U300B/195 | 320 | 195 | 485 | 24 | 300 | 150 | 85 | 50 | 130 | 130 | 10.6 |
| U420/205 | 360 | 205 | 550 | 28 | 420 | 210 | 90 | 55 | 140 | 130 | 16 |
| U550B/240 | 380 | 240 | 620 | 32 | 550 | 275 | 95 | 55 | 145 | 130 | 21.5 |
Dimensions On One Sheet
The factory dimensional drawing shows shed profile, unit spacing, creepage path and the coupling detail. PDF drawings for the common types are on the downloads page, and a drawing for this type can be issued before you place an order.
Export Projects On Record
U550BL/240 Questions
Straight answers to the questions buyers ask before a first order.
What is the mechanical failing load of U550BL/240?
The specified mechanical failing load is 550 kN. Every unit takes a routine tensile load test before it leaves the plant.
Which standards does this toughened glass insulator follow?
Designs follow GB, ANSI, BS, DIN, AS and IEC dimensions. Type test reports are available from Xi'an High Voltage Apparatus Research Institute Co., Ltd. and the National Ceramic Product Quality Inspection and Testing Center.
Can I have the goods inspected before shipment?
Yes. Buyers are welcome to inspect in person, and Huayao accepts third-party pre-shipment inspection appointed by the buyer, including Intertek, BV and SGS.
What is the production capacity behind this item?
The plant runs one natural-gas electric melting kiln with a melting area of about 50 m² and two production lines, with an annual capacity of six million pieces of AC and DC glass insulators. Stock is held on common types.
What happens if a glass shell is damaged in service?
A toughened glass shell shatters and leaves the cap and pin carrying the line, so a zero-value unit can be spotted on a ground or helicopter patrol instead of a hot-line test.
Other Types In This Family
U70BL High Voltage 70 KN Electrical Glass Insulator
View specifications →
PS70E 70kN EMS Anti Fog Type Corrosion Proof Disc Insulator Glass Type
View specifications →
PSV70A High Voltage 70 KN Electrical Glass Insulator
View specifications →
U40B 11kV CTV 175 HV 40 KN Glass Electric Insulator
View specifications →Quote U550BL/240
Send the quantity, the coupling size already specified and your destination port. We will come back with price, lead time and crate weights.
