LXAP-160 / U160BP 160kN Aerodynamic Glass Insulator
Glass insulator is a special insulation component used in overhead transmission lines to provide insulation and support for wires. Good anti-pollution flashover performance of aerodynamic Insulator 160kN aerodynamic glass insulator, 160kN wind resistant glass insulator, aerodynamic toughened glass insulator U160BP aerodynamic glass insula
- Type codeU160BP/155M
- Mechanical failing load160 kN
- Routine test load80 kN
- Nominal diameter D420 mm
- Unit spacing H155 mm
- Creepage distance L380 mm
- Coupling size20 mm
- Net weight per unit7.2 kg
- Materialfiberglass
- Applicationhigh voltage
- Rated voltage33kV
- UsageTransmission lines
- CertificateISO9001
- StandardIEC60383
- ColorJade green
Made by Jiangxi Huayao Electric Co., Ltd. in Luxi County, Jiangxi, China. Third-party inspection by Intertek, BV or SGS welcome.
What This Type Is For
160kN Aerodynamic Toughened Glass Insulator (LXAP-160 / U160BP) is a heavy-duty, high-reliability suspension insulator specially developed for

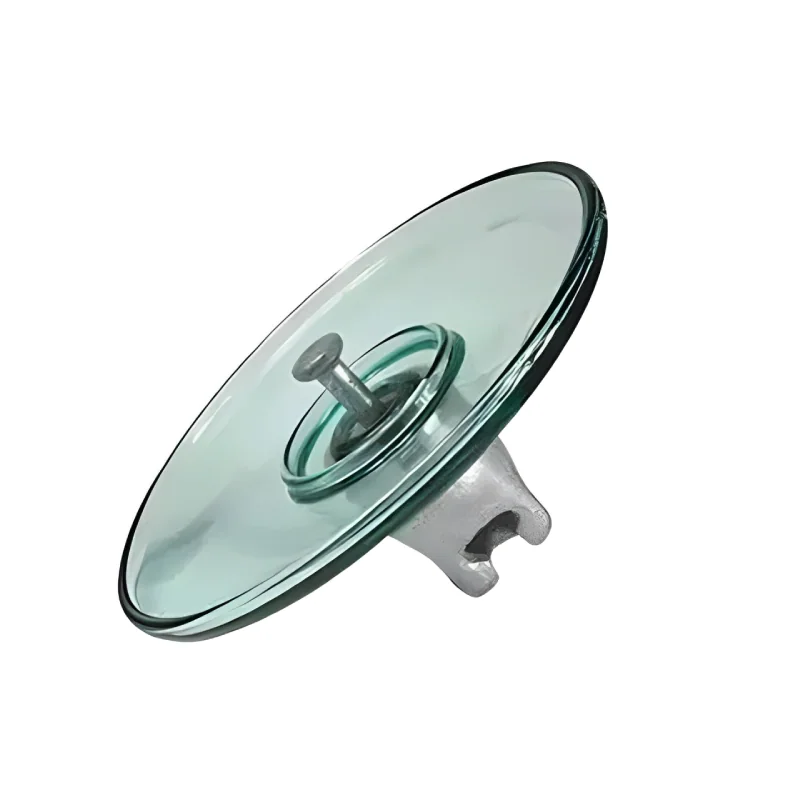

160kN aerodynamic disc suspension glass insulator U160BP/155M
Glass open air profile disc Suspension Insulators U160BP/155M
On desert and high wind routes, deposits sit in a deep shed and never wash off. An open profile lets the wind do the cleaning and sheds ice more readily.
What You Get With This Unit
Rated strength
Specified mechanical failing load of 160 kN, routine tested at 80 kN.
Creepage per unit
380 mm of leakage path in a single unit, so string creepage can be budgeted without guesswork.
Coupling
20 mm ball and socket coupling to match existing line hardware.
Shipping weight
7.2 kg net per unit, which sets crate weight and freight cost for the string.
Material
Toughened glass shell with hot-dip galvanised cap and pin, cemented and cured.
Traceability
Routine tensile load test on every piece, with the process record kept against the production batch.
Main Technical Parameters
The full parameter table this type belongs to, copied from our factory data. The highlighted row is this item.
| Type | Diameter D(mm) | spacing H (mm) | creepage distance L(mm) | size of coupling (mm) | Mechnical failing load (kN) | Mechnical routine test (kN) | Power frequency withstand voltage DRY (kV) | Power frequency withstand voltage WET (kV) | lighting impulse withstand voltage (kV) | Min power frequency puncture voltage (kV) | Net weight per unit (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| U70BP/146M | 380 | 146 | 365 | 16 | 70 | 35 | 55 | 45 | 90 | 130 | 5.3 |
| U100BP/146M | 380 | 146 | 365 | 16 | 100 | 50 | 55 | 45 | 90 | 130 | 5.3 |
| U120BP/146M | 380 | 146 | 365 | 16 | 120 | 60 | 55 | 45 | 90 | 130 | 5.4 |
| U160BP/155M | 420 | 155 | 380 | 20 | 160 | 80 | 60 | 50 | 95 | 130 | 7.2 |
| U210BP/170M | 420 | 170 | 380 | 20 | 210 | 105 | 60 | 50 | 95 | 130 | 7.3 |
| U240BP/170M | 420 | 170 | 380 | 24 | 240 | 120 | 60 | 50 | 95 | 130 | 7.5 |
Dimensions On One Sheet
The factory dimensional drawing shows shed profile, unit spacing, creepage path and the coupling detail. PDF drawings for the common types are on the downloads page, and a drawing for this type can be issued before you place an order.
Export Projects On Record
U160BP/155M Questions
Straight answers to the questions buyers ask before a first order.
What is the mechanical failing load of U160BP/155M?
The specified mechanical failing load is 160 kN, and the routine test load is 80 kN.
How much creepage distance does this unit give me?
One unit gives 380 mm of creepage distance at 155 mm unit spacing. Multiply by the number of units in the string and compare the total against the mm per kV your pollution class requires.
Which coupling size does it use?
The ball and socket coupling is 20 mm. Confirm this against the fittings already specified for the project so the string assembles without adapters.
Which standards does this toughened glass insulator follow?
Designs follow GB, ANSI, BS, DIN, AS and IEC dimensions. Type test reports are available from Xi'an High Voltage Apparatus Research Institute Co., Ltd. and the National Ceramic Product Quality Inspection and Testing Center.
Can I have the goods inspected before shipment?
Yes. Buyers are welcome to inspect in person, and Huayao accepts third-party pre-shipment inspection appointed by the buyer, including Intertek, BV and SGS.
What is the production capacity behind this item?
The plant runs one natural-gas electric melting kiln with a melting area of about 50 m² and two production lines, with an annual capacity of six million pieces of AC and DC glass insulators. Stock is held on common types.
