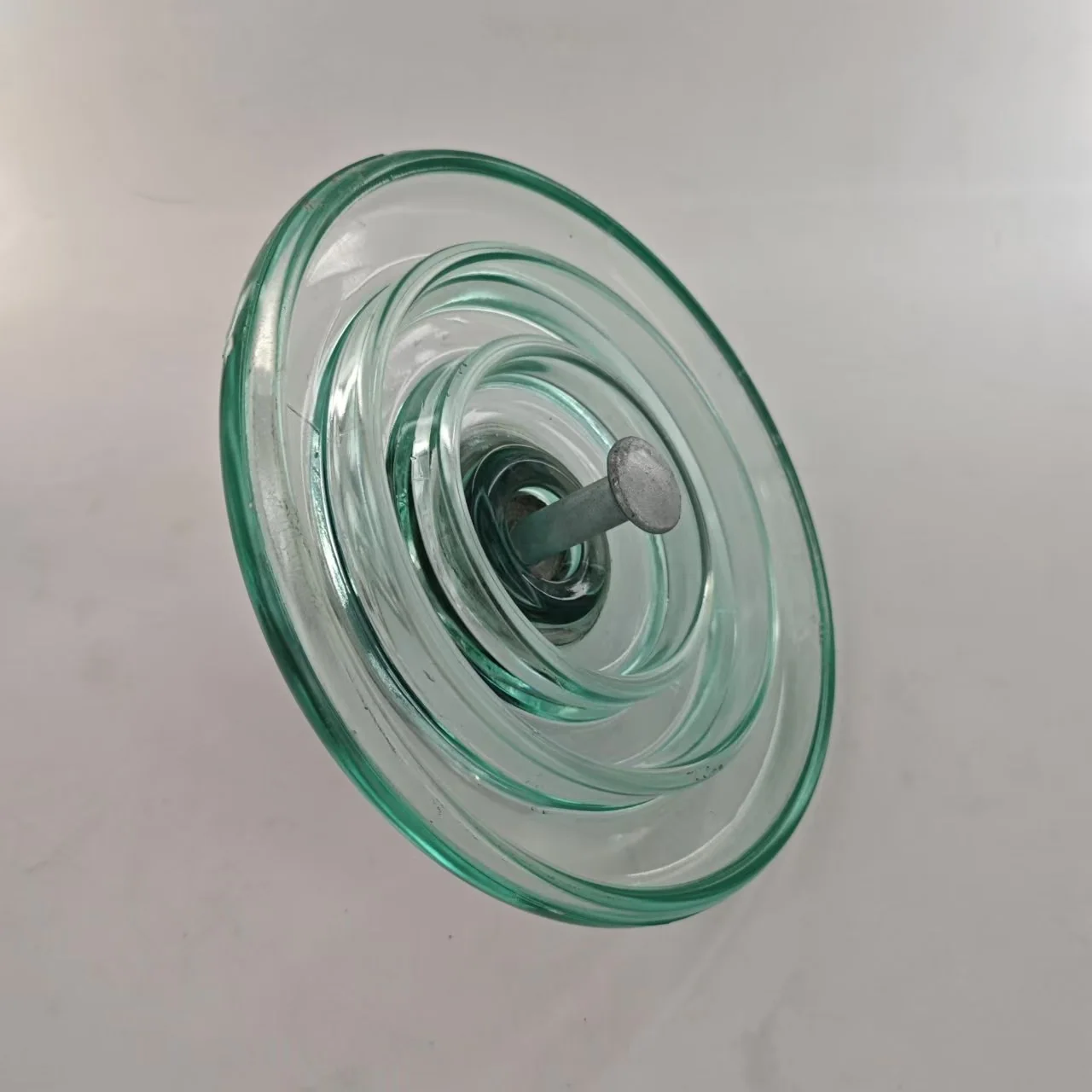

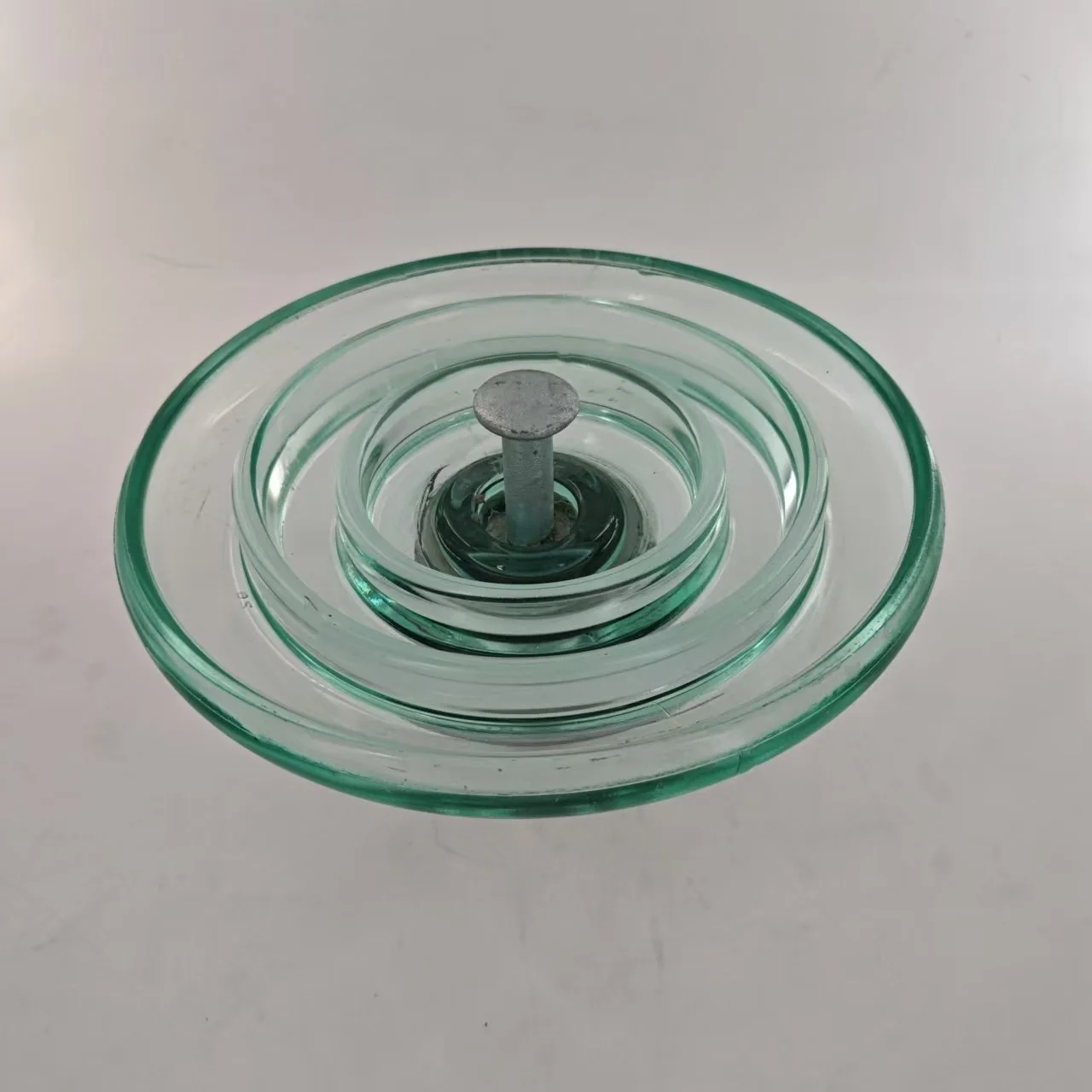

U160B 220kV HV AC Electric Line Glass Insulator
U160B 160kN Standard Toughened Glass Insulator 160kN High Strength Glass Suspension Insulator U160B U160B IEC Standard Glass Insulator for 220kV 500kV Line Heavy Duty 160kN Disc Glass Insulator U160B Toughened Glass disc insulator, with anti fog type, with minimum mechanical failing load 160kN, with minimum 400mm Disc creepage, 31mm/kV.
Made by Jiangxi Huayao Electric Co., Ltd. in Luxi County, Jiangxi, China. Third-party inspection by Intertek, BV or SGS welcome.
What This Type Is For
U160BP / U160BLP (160kN, Anti-Pollution Type): Main anti-pollution model
U160BLM / U210BLM (Aerodynamic Type): Special anti-pollution design
Glass Standard Profile Suspension Insulators LXP-160 / U160BS/146
Most line kilometres do not need a fog profile. The standard shed keeps cost and string weight down where pollution is light.
What You Get With This Unit
Material
Toughened glass shell with hot-dip galvanised cap and pin, cemented and cured.
Traceability
Routine tensile load test on every piece, with the process record kept against the production batch.
Dimensions On One Sheet

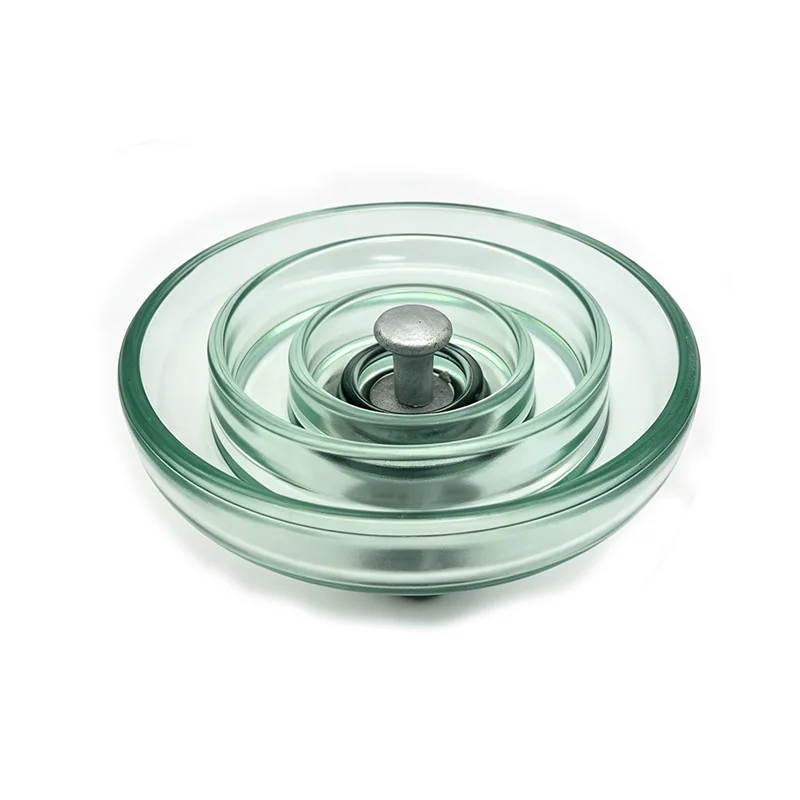

The factory dimensional drawing shows shed profile, unit spacing, creepage path and the coupling detail. PDF drawings for the common types are on the downloads page, and a drawing for this type can be issued before you place an order.
Export Projects On Record
U160B Questions
Straight answers to the questions buyers ask before a first order.
Which standards does this toughened glass insulator follow?
Designs follow GB, ANSI, BS, DIN, AS and IEC dimensions. Type test reports are available from Xi'an High Voltage Apparatus Research Institute Co., Ltd. and the National Ceramic Product Quality Inspection and Testing Center.
Can I have the goods inspected before shipment?
Yes. Buyers are welcome to inspect in person, and Huayao accepts third-party pre-shipment inspection appointed by the buyer, including Intertek, BV and SGS.
What is the production capacity behind this item?
The plant runs one natural-gas electric melting kiln with a melting area of about 50 m² and two production lines, with an annual capacity of six million pieces of AC and DC glass insulators. Stock is held on common types.
What happens if a glass shell is damaged in service?
A toughened glass shell shatters and leaves the cap and pin carrying the line, so a zero-value unit can be spotted on a ground or helicopter patrol instead of a hot-line test.
