UHV DC 220kV 500kV 210kN U210BLD Double-umbrella Suspension Electrical Glass Insulator
U210BLD PSD-210E 210kN Double Shed Toughened Glass Suspension Insulator, Anti-Pollution Disc Insulator for 220kV 500kV High Voltage Transmission Lines The product consists of an iron cap, tempered glass parts, and steel feet, and is integrated with cement adhesive. This product adopts the most advanced cylindrical head structure internati
- Type codeUG210B170/450D 20R
- Mechanical failing load210 kN
- Routine test load105 kN
- Nominal diameter D300 mm
- Unit spacing H170 mm
- Creepage distance L450 mm
- Coupling size20 mm
- Net weight per unit9.00 kg
- Materialfiberglass
- Applicationhigh voltage
- Rated voltage33kV
- UsageTransmission lines
- CertificateISO9001
- StandardIEC60383
- ColorJade green
Made by Jiangxi Huayao Electric Co., Ltd. in Luxi County, Jiangxi, China. Third-party inspection by Intertek, BV or SGS welcome.
What This Type Is For

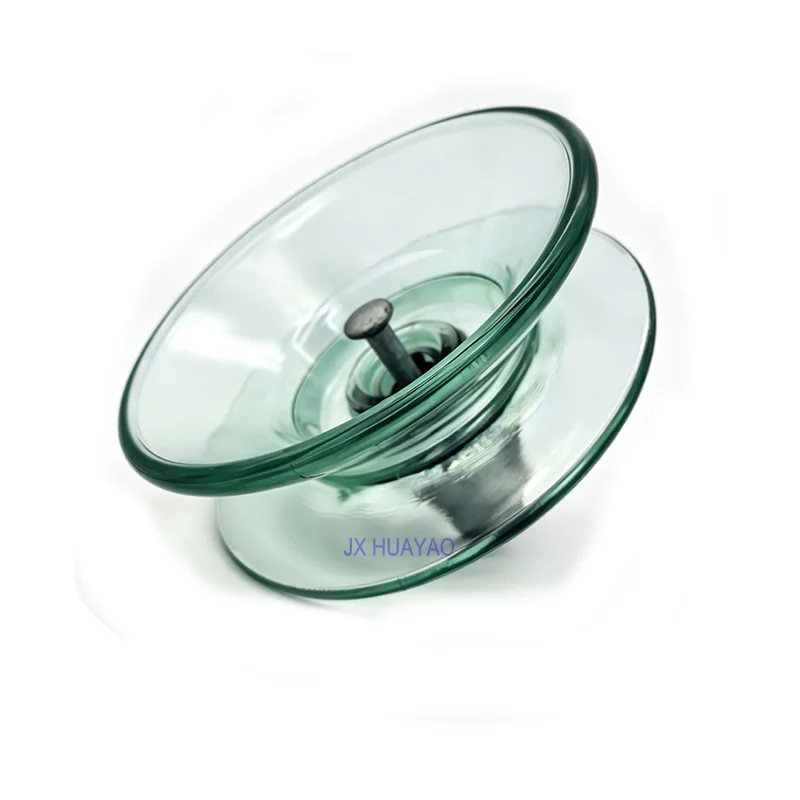

210kN double-umbrella disc suspension glass insulator UG210B170/450D 20R
When creepage has to rise but the tower window is fixed, alternating large and small sheds add leakage path within the same unit spacing.
What You Get With This Unit
Rated strength
Specified mechanical failing load of 210 kN, routine tested at 105 kN.
Creepage per unit
450 mm of leakage path in a single unit, so string creepage can be budgeted without guesswork.
Coupling
20 mm ball and socket coupling to match existing line hardware.
Shipping weight
9.00 kg net per unit, which sets crate weight and freight cost for the string.
Material
Toughened glass shell with hot-dip galvanised cap and pin, cemented and cured.
Traceability
Routine tensile load test on every piece, with the process record kept against the production batch.
Main Technical Parameters
The full parameter table this type belongs to, copied from our factory data. The highlighted row is this item.
| Type | Diameter D (mm) | spacing H (mm) | creepage distance L(mm) | size of coupling (mm) | Mechnical failing load (kN) | Mechnical routine test (kN) | Power frequency withstand voltage DRY (kV) | Power frequency withstand voltage WET (kV) | lighting impulse withstand voltage (kV) | Min power frequency puncture voltage (kV) | Net weight per unit (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| UG70B146/450D 16R | 280 | 146 | 450 | 16 | 70 | 35 | 80 | 45 | 120 | 130 | 6.30 |
| UG100B146/450D 16R | 280 | 146 | 450 | 16 | 100 | 50 | 80 | 45 | 120 | 130 | 6.30 |
| UG120B146/450D 16R | 280 | 146 | 450 | 16 | 120 | 60 | 80 | 45 | 120 | 130 | 6.30 |
| UG160B170450D 20R | 300 | 170 | 450 | 20 | 160 | 80 | 85 | 45 | 130 | 130 | 8.40 |
| UG210B170/450D 20R | 300 | 170 | 450 | 20 | 210 | 105 | 85 | 45 | 130 | 130 | 9.00 |
| UG300B195/480D 24R | 330 | 195 | 480 | 24 | 300 | 150 | 85 | 50 | 130 | 130 | 13.00 |
Dimensions On One Sheet
The factory dimensional drawing shows shed profile, unit spacing, creepage path and the coupling detail. PDF drawings for the common types are on the downloads page, and a drawing for this type can be issued before you place an order.
Export Projects On Record
UG210B170/450D 20R Questions
Straight answers to the questions buyers ask before a first order.
What is the mechanical failing load of UG210B170/450D 20R?
The specified mechanical failing load is 210 kN, and the routine test load is 105 kN.
How much creepage distance does this unit give me?
One unit gives 450 mm of creepage distance at 170 mm unit spacing. Multiply by the number of units in the string and compare the total against the mm per kV your pollution class requires.
Which coupling size does it use?
The ball and socket coupling is 20 mm. Confirm this against the fittings already specified for the project so the string assembles without adapters.
Which standards does this toughened glass insulator follow?
Designs follow GB, ANSI, BS, DIN, AS and IEC dimensions. Type test reports are available from Xi'an High Voltage Apparatus Research Institute Co., Ltd. and the National Ceramic Product Quality Inspection and Testing Center.
Can I have the goods inspected before shipment?
Yes. Buyers are welcome to inspect in person, and Huayao accepts third-party pre-shipment inspection appointed by the buyer, including Intertek, BV and SGS.
What is the production capacity behind this item?
The plant runs one natural-gas electric melting kiln with a melting area of about 50 m² and two production lines, with an annual capacity of six million pieces of AC and DC glass insulators. Stock is held on common types.
Other Types In This Family
U100BP/146D Double-wing Anti-pollution Disc Toughened Glass Insulator
View specifications →U70BLD/U70BSD UHV AC 70kN Disk Suspension Toughened Glass Insulator
View specifications →
Double-shed Disk Suspension Toughened Glass Insulator UG70B146/450D/16R
View specifications →
100kN U100BLD / PSD-100E Double Shed Toughened Glass Suspension Insulator
View specifications →Quote UG210B170/450D 20R
Send the quantity, the coupling size already specified and your destination port. We will come back with price, lead time and crate weights.
