U210BL 210kN UHV AC Suspension Glass Insulator
210kN standard disc suspension glass insulator U210BL Huayao advantage products are glass insulators with a capacity of 40kN-550kN, which can meet the requirements of 10kV-500kV ultra-high voltage and extra high voltage transmission and transformation lines. Huayao strictly complies with GB, ANSI, BS, DIN, AS, IEC standard designs, applic
- Materialfiberglass
- Applicationhigh voltage
- Rated voltage33kV
- UsageTransmission lines
- CertificateISO9001
- StandardIEC60383
- ColorJade green
Made by Jiangxi Huayao Electric Co., Ltd. in Luxi County, Jiangxi, China. Third-party inspection by Intertek, BV or SGS welcome.
What This Type Is For
Glass Standard Profile Suspension Insulators LXP-210 / U210BL/170
Most line kilometres do not need a fog profile. The standard shed keeps cost and string weight down where pollution is light.
What You Get With This Unit
Material

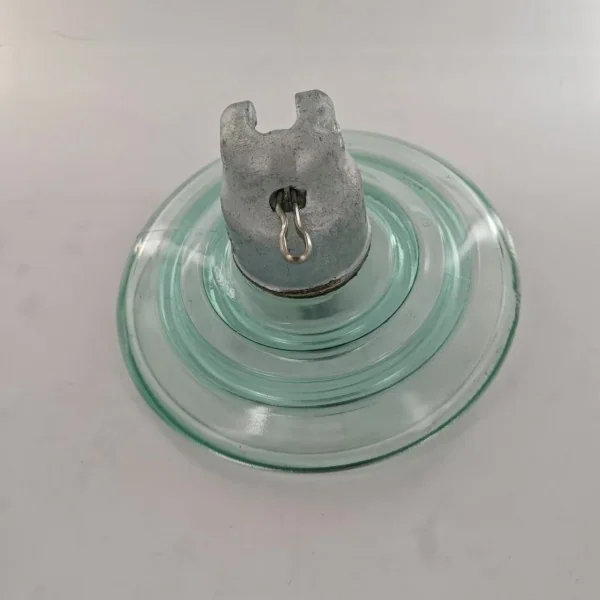

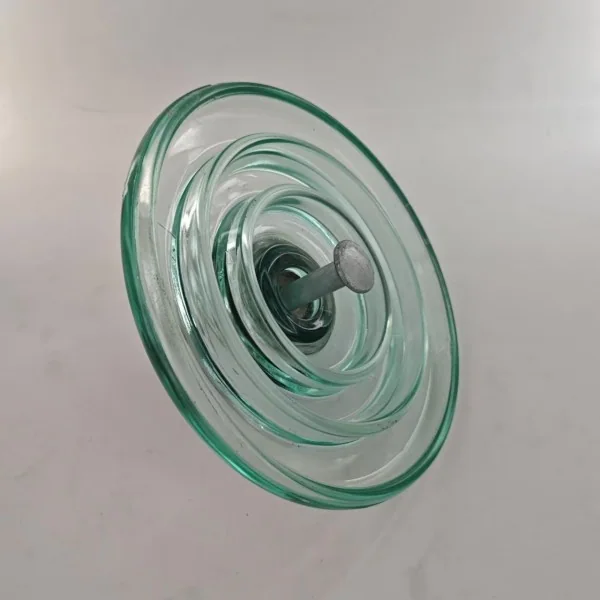

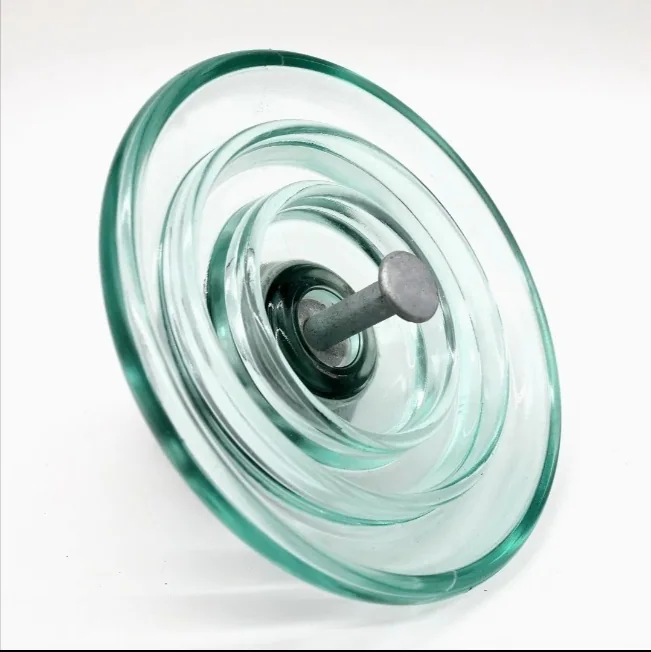

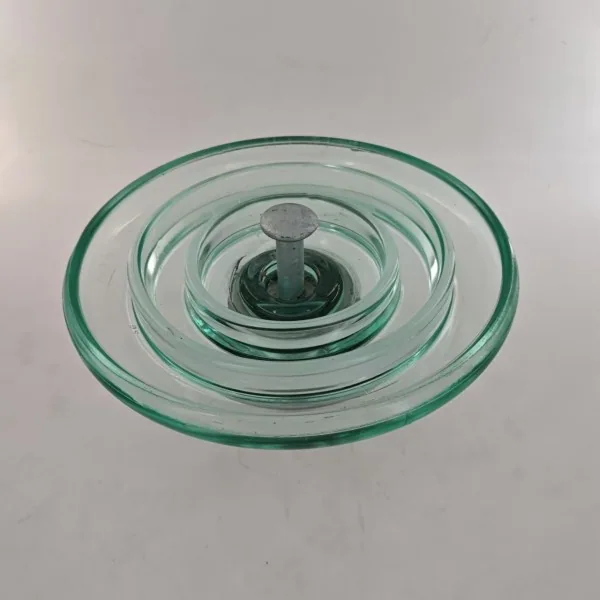

Toughened glass shell with hot-dip galvanised cap and pin, cemented and cured.
Traceability
Routine tensile load test on every piece, with the process record kept against the production batch.
Main Technical Parameters
The full parameter table this type belongs to, copied from our factory data. The highlighted row is this item.
| IEC type | Diameter D (mm) | spacing H (mm) | creepage distance L(mm) | size of coupling (mm) | Mechnical failing load (kN) | Mechnical routine test (kN) | Power frequency withstand voltage DRY (kV) | Power frequency withstand voltage WET (kV) | lighting impulse withstand voltage (kV) | Min power frequency puncture voltage (kV) | Net weight per unit (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| U40B | 178 | 110 | 185 | 11 | 40 | 20 | 40 | 20 | 50 | 130 | 2.5 |
| U70BL/146 | 255 | 146 | 320 | 16 | 70 | 35 | 70 | 40 | 100 | 130 | 3.5 |
| U70BS/127 | 255 | 127 | 320 | 16 | 70 | 35 | 70 | 40 | 100 | 130 | 3.5 |
| U100BL/146 | 255 | 146 | 320 | 16 | 100 | 50 | 70 | 40 | 100 | 130 | 3.5 |
| U100BS/127 | 255 | 127 | 320 | 16 | 100 | 50 | 70 | 40 | 100 | 130 | 3.5 |
| U120B/146 | 255 | 146 | 320 | 16 | 120 | 60 | 70 | 40 | 100 | 130 | 3.6 |
| U120B/127 | 255 | 127 | 320 | 16 | 120 | 60 | 70 | 40 | 100 | 130 | 3.6 |
| U160BL/170 | 280 | 170 | 400 | 20 | 160 | 80 | 75 | 45 | 110 | 130 | 6.5 |
| U160B/155 | 280 | 155 | 450 | 20 | 160 | 80 | 75 | 45 | 110 | 130 | 6.3 |
| U160BS/146 | 280 | 146 | 400 | 20 | 160 | 80 | 75 | 45 | 110 | 130 | 6.3 |
| U210B/170 | 280 | 170 | 460 | 20 | 210 | 105 | 85 | 45 | 125 | 130 | 6.9 |
| U210B/170 | 280 | 170 | 400 | 20 | 210 | 105 | 75 | 45 | 110 | 130 | 6.9 |
| U240B/170 | 280 | 170 | 400 | 24 | 240 | 120 | 75 | 45 | 110 | 130 | 6.9 |
| U240B/170 | 280 | 170 | 460 | 24 | 240 | 120 | 85 | 50 | 110 | 130 | 6.9 |
| U300B/195 | 320 | 195 | 485 | 24 | 300 | 150 | 85 | 50 | 130 | 130 | 10.6 |
| U420/205 | 360 | 205 | 550 | 28 | 420 | 210 | 90 | 55 | 140 | 130 | 16 |
| U550B/240 | 380 | 240 | 620 | 32 | 550 | 275 | 95 | 55 | 145 | 130 | 21.5 |
Dimensions On One Sheet

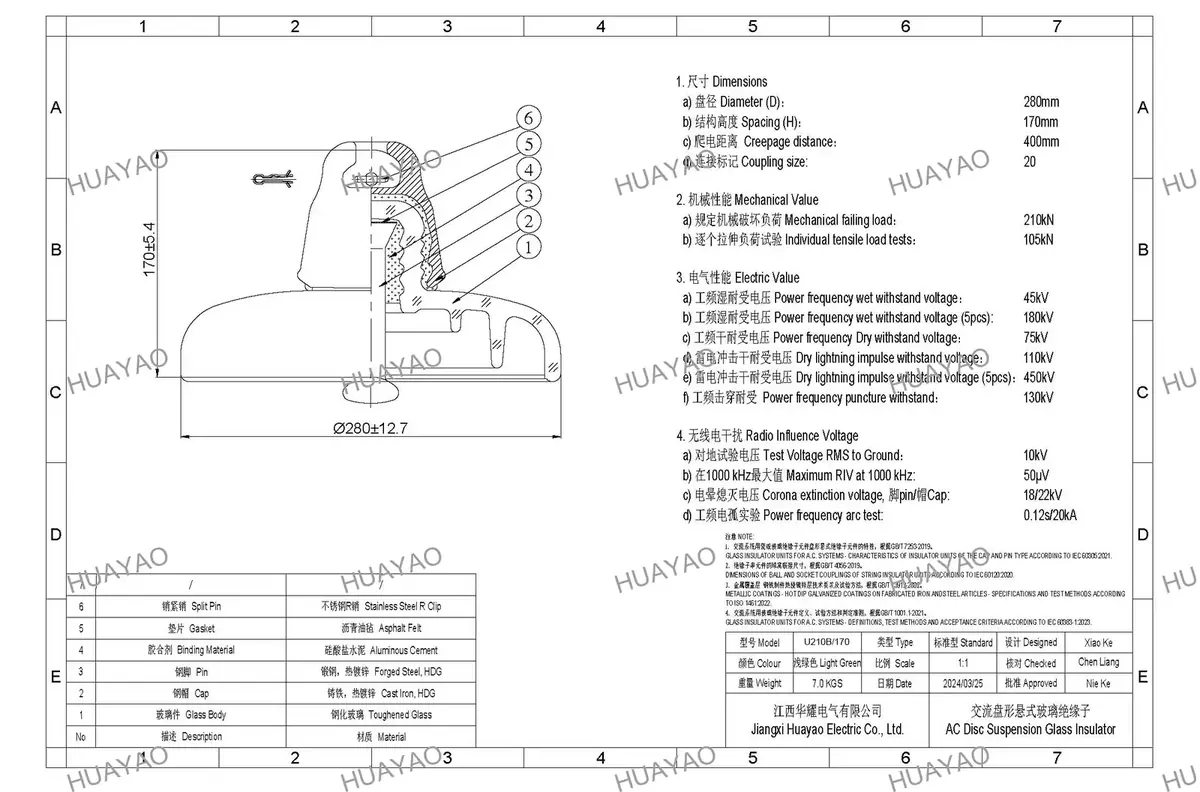

The factory dimensional drawing shows shed profile, unit spacing, creepage path and the coupling detail. PDF drawings for the common types are on the downloads page, and a drawing for this type can be issued before you place an order.
Export Projects On Record
U210BL/170 Questions
Straight answers to the questions buyers ask before a first order.
What is the mechanical failing load of U210BL/170?
The specified mechanical failing load is 210 kN. Every unit takes a routine tensile load test before it leaves the plant.
Which standards does this toughened glass insulator follow?
Designs follow GB, ANSI, BS, DIN, AS and IEC dimensions. Type test reports are available from Xi'an High Voltage Apparatus Research Institute Co., Ltd. and the National Ceramic Product Quality Inspection and Testing Center.
Can I have the goods inspected before shipment?
Yes. Buyers are welcome to inspect in person, and Huayao accepts third-party pre-shipment inspection appointed by the buyer, including Intertek, BV and SGS.
What is the production capacity behind this item?
The plant runs one natural-gas electric melting kiln with a melting area of about 50 m² and two production lines, with an annual capacity of six million pieces of AC and DC glass insulators. Stock is held on common types.
What happens if a glass shell is damaged in service?
A toughened glass shell shatters and leaves the cap and pin carrying the line, so a zero-value unit can be spotted on a ground or helicopter patrol instead of a hot-line test.
Other Types In This Family
U70BL High Voltage 70 KN Electrical Glass Insulator
View specifications →
PS70E 70kN EMS Anti Fog Type Corrosion Proof Disc Insulator Glass Type
View specifications →
PSV70A High Voltage 70 KN Electrical Glass Insulator
View specifications →
U40B 11kV CTV 175 HV 40 KN Glass Electric Insulator
View specifications →Quote U210BL/170
Send the quantity, the coupling size already specified and your destination port. We will come back with price, lead time and crate weights.
