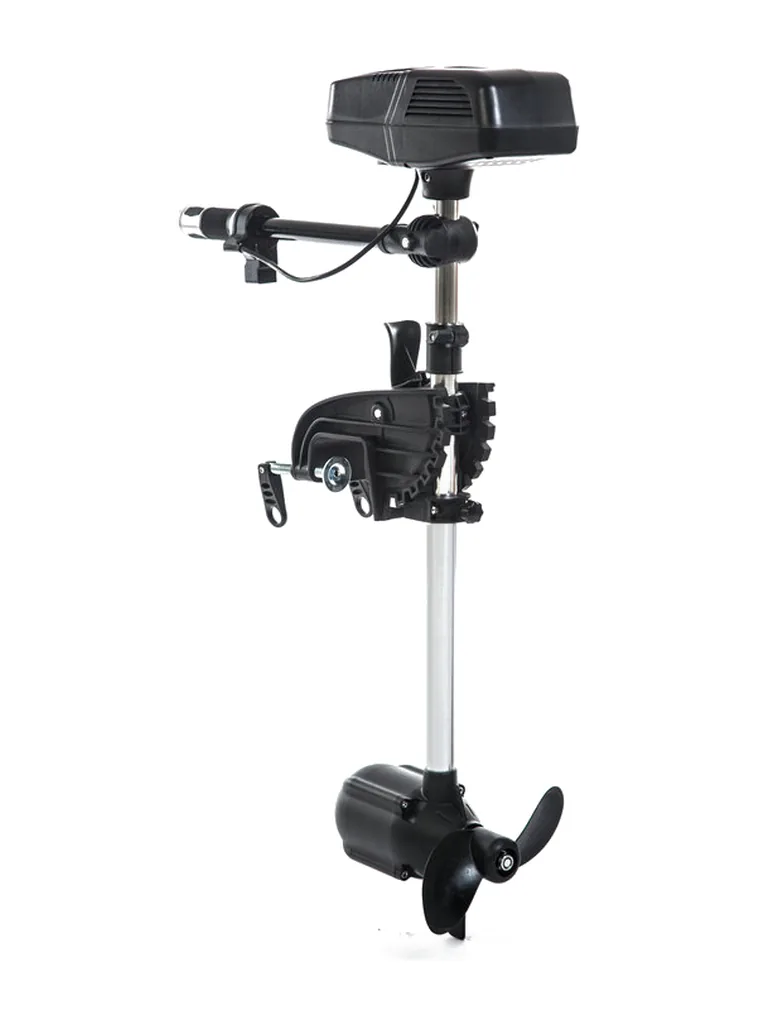

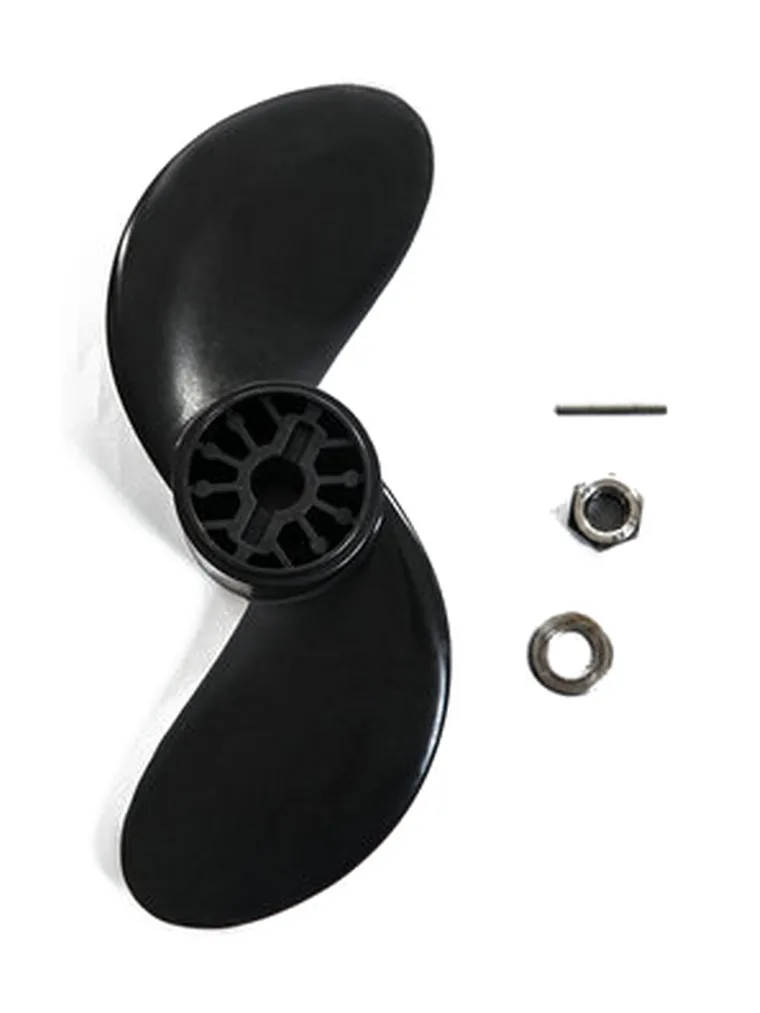

Photographs of the S Series as supplied, including the tiller head, mount bracket, shaft and propeller.
Brushless Series · S 100 lbs
S Series
48V Brushless Trolling Motor Rated At 100 lbs Of Thrust
A single-model 48V brushless unit at 100 lbs of thrust, with infinitely variable speed control, an adjustable head and an aluminium mount bracket.
100lbs Thrust
48VSupply
50 dbNoise Level
2 yrWarranty
Two Years Warranty
Marking and test documentation for this series is issued per order. Ask sales for the current certificate package before you commit to a market that requires it.
Product Overview
What The S Series Is Built To Do
The S Series sits in the brushless half of the Hightime range at 100 lbs of thrust on 48V DC. Every unit ships with the telescopic tiller, mount bracket and weedless propeller fitted, so the only item to source locally is the deep cycle battery.
A single-model 48V brushless unit at 100 lbs of thrust, with infinitely variable speed control, an adjustable head and an aluminium mount bracket.
| Motor head | All aluminium alloy |
|---|---|
| Shaft | Aluminium / stainless steel |
| Mount bracket | Aluminium |
| Propeller | Weedless machete, 3-blade |
| Corrosion protection | Anti-corrosion system for seawater or saltwater use |
Materials as published for this series. Shaft material is selectable where two options are listed.
Key Benefits
Why Buyers Specify This Series
100 lbs Of Thrust
Published maximum thrust for this series, with the current draw and output for every model listed in the specification table so you can size cable and battery correctly.
50 db Running Noise
Quoted at 50 db across the Hightime range, so the motor can be run on a fish-holding bank without pushing fish off the mark.
Weedless Machete Propeller
A 3-blade machete propeller that sheds weed and line instead of collecting it around the hub.
Anti-Corrosion System
Fitted for seawater or saltwater use, so the same motor can work coastal marks and freshwater.
Telescopic Tiller
An adjustable telescopic tiller, 390 mm extended on this series, so long trolling sessions are comfortable from a seated position.
Two Years Warranty
Two years manufacturer warranty on every unit, the same term across all eight Hightime series.
Problems It Solves
What Goes Wrong On The Water And What Fixes It
Problem
Petrol outboards spook fish on a shallow approach
The S Series runs at a quoted 50 db, quiet enough to hold position on a mark without moving fish.
Problem
Weed and line jam the propeller mid-session
The weedless machete propeller is designed to shed weed rather than wrap it.
Problem
Nobody knows how much battery is left
Battery power and speed status are shown on the tiller through an LED indicator and voltage meter.
Problem
Salt shortens the life of the mount and motor can
An anti-corrosion system for seawater or saltwater use is fitted as standard to this series.
Who It Is For
Application Scenarios
Distributors, tackle retailers, boat and tender builders and rental fleets buy this series for the water below.
Technical Features
Feature List As Published
- Battery power and speed status is checked easily with an LED indicator and voltage meter
- Voltage: 48V DC
- Thrust power: 100 lbs
- Infinitely variable speed control
- An adjustable telescopic tiller with a handle designed to let anglers troll for hours without fatigue
- Adjustable head
- Aluminium shaft / stainless steel shaft
- All aluminium alloy motor head
- Aluminium mount bracket, easy to fit
- Weedless 3-blade machete propeller
- Anti-corrosion system for seawater or saltwater use
- Two years manufacturer warranty

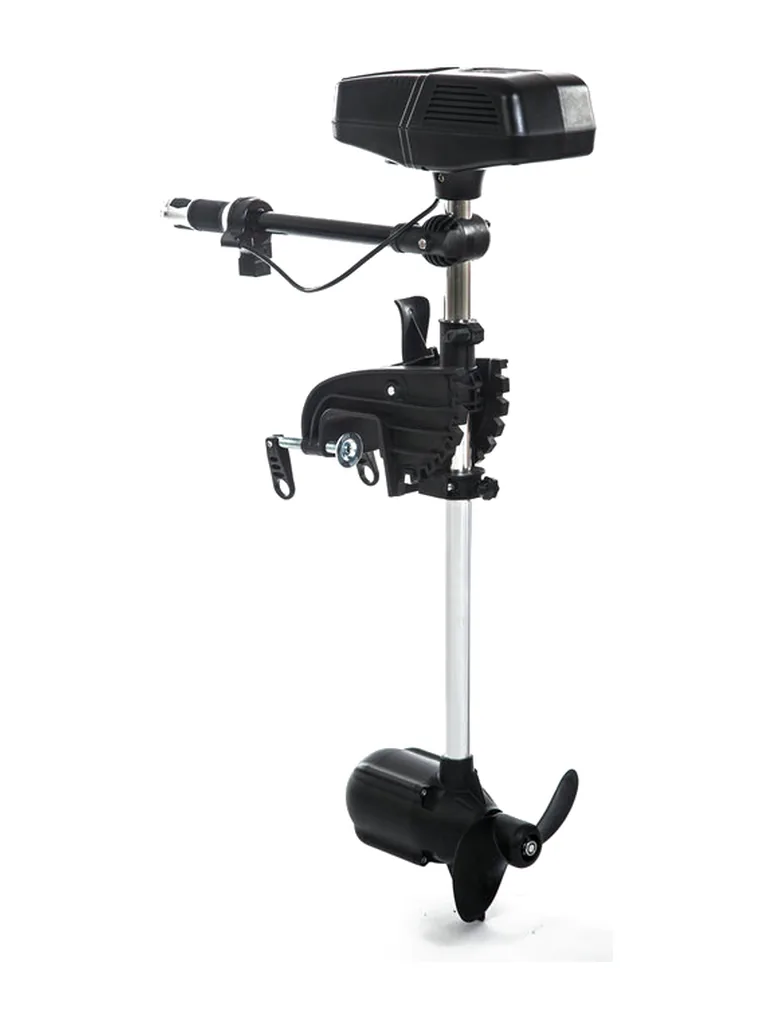

Tiller head and mount detail on the S Series.
Specifications
S Series Technical Data
| Specification | S Series |
|---|---|
| Max thrust | 100 lbs |
| Voltage | 48V DC |
| Speed control | Infinitely variable speed control |
| Tiller | Adjustable telescopic tiller |
| Head | Adjustable, all aluminium alloy |
| Shaft type | Aluminium / stainless steel |
| Mount bracket | Aluminium |
| Propeller | Weedless 3-blade machete propeller |
| Corrosion protection | Anti-corrosion system for seawater or saltwater use |
| Warranty | Two years manufacturer warranty |
No dimensional or packing table was published for the S Series on the previous site. Carton size, weights and container loading are available from sales on request rather than being estimated here.
Customisation
Options And Own Brand Supply
Shaft And Bracket
Aluminium or stainless steel shaft where both are listed for this series, with the standard 7-level lock bracket.
Own Brand
Head decals, tiller markings, manual and carton artwork to your brand. See the OEM programme.
Packing
One motor per carton as standard. Master carton, pallet plan and labelling can be set to your warehouse requirement.
Comparison
How It Compares With Other Hightime Series
| Specification | S Series | T Series | DT Series |
|---|---|---|---|
| Motor type | Brushless | Brush | Brush |
| Max thrust | 100 lbs | 25 lbs & 35 lbs | 45 / 55 / 65 lbs |
| Voltage | 48V DC | 12V DC | 12V DC |
| Speed control | Infinitely variable speed control | 5 step FWD / 2 step REV | 5 forward / 3 reverse |
| Shaft | Aluminium / stainless steel | Aluminium | Aluminium / stainless steel |
Full data for every series is on the product overview page.
Use Guide
Getting The S Series Onto The Water
Check The Transom
Measure transom height and confirm the 24 inch / 609 mm shaft gives the prop the depth it needs.
Clamp And Square
Fit the lock bracket to the transom, square the shaft and tighten both clamp screws evenly.
Wire The Battery
Connect to a 48V DC deep cycle battery with cable sized for the maximum current in the table above.
Set Depth And Run
Drop the shaft until the propeller is fully submerged, lock the collar and start on the lowest speed step.
FAQ
S Series Questions Buyers Ask
The points that come up most often before a first order of this series.
What Boat Size Does The S Series Suit
This series is rated at 100 lbs of thrust. Send us the boat length, the loaded weight and the water you fish and we will confirm whether this series or a larger one is the right fit.
What Battery Does The S Series Need
The motor is supplied without a battery. The factory reference is a 100AH deep cycle battery at 48V DC. Size the bank from the rated and maximum current shown in the table, not from the peak figure alone.
Can We Order The S Series Under Our Own Brand
Yes. Hightime has accepted OEM orders since the company started trading. Head decals, tiller markings, carton artwork and manual can be produced to your brand. See the OEM and ODM page for what we need from you.
What Is The Warranty On This Series
Two years manufacturer warranty, the same across every Hightime series.
Is The S Series Suitable For Saltwater
Yes. An anti-corrosion system for seawater or saltwater use is fitted to this series. Rinse the motor with fresh water after every saltwater session; the routine is set out in our saltwater care guide.
How Are These Motors Packed For Export
One motor per carton. Carton dimensions and container loading for this series are confirmed by sales on request rather than estimated here.
