T Series
25 lbs & 35 lbs maximum thrust
The lightest motor in the Hightime range. 25 lbs or 35 lbs of thrust on a 24 inch aluminium shaft, a 130 mm tiller and…
Brush Series · 12V
Brush Trolling Motors
Four series on 12V from 25 lbs to 65 lbs of thrust, with stepped speed control and a reinforced nylon mount bracket. This is the volume half of the Hightime range.
Who This Category Suits
Who Buys These Motors
- Tenders, dinghies and inflatables up to about 3 m on the T Series and larger hulls on the 45 to 65 lbs series
- Rental and hire fleets that need a simple stepped control anyone can operate
- Tackle retailers and distributors buying a 12V entry price point
- Freshwater venues where 12V and a single 100AH battery cover a full day
| Series | Thrust | Voltage | Shaft | Speed Control |
|---|---|---|---|---|
| T Series | 25 lbs & 35 lbs | 12V DC | Aluminium | 5 step FWD / 2 step REV |
| DT Series | 45 / 55 / 65 lbs | 12V DC | Aluminium / stainless steel | 5 forward / 3 reverse |
| ET Series | 45 / 55 / 65 lbs | 12V DC | Aluminium / stainless steel | 5 forward / 2 reverse |
| FT Series | 45 / 55 / 65 lbs | 12V DC | Aluminium / stainless steel | 5 forward / 3 reverse |
Core Advantages
What This Family Does Well
12V Throughout
One supply voltage across all four series, so the dealer only stocks one battery and charger recommendation.
Stepped Speed Control
5 forward with 2 or 3 reverse steps depending on the series, easy to explain and easy to use with gloves on.
Reinforced Nylon Bracket
The 7-level lock bracket clamps to standard transoms without tools.
Two Shaft Lengths
24 inch / 609 mm on the T Series and 31 inch / 788 mm on the DT, ET and FT.
Problems Solved
What These Motors Are Specified To Fix
Problem
Petrol outboards are too loud for a shallow approach
50 db quoted running noise across the range.
Problem
Weed fouls the prop in shallow venues
Weedless machete propellers, 2-blade on the T and 3-blade on the rest.
Problem
Anglers run the battery flat without warning
LED battery indicator on all four series, plus a voltage meter on the DT and FT.
Problem
Salt shortens the life of an entry level motor
Anti-corrosion system for seawater or saltwater use fitted as standard.
Series In This Category
Choose By Thrust And Voltage
DT Series
45 / 55 / 65 lbs maximum thrust
A 45, 55 or 65 lbs brush motor on a 31 inch shaft, with an LED indicator and voltage meter in the tiller, an adjustabl…

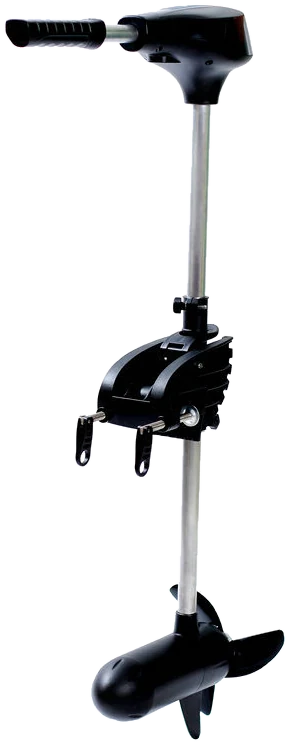

ET Series
45 / 55 / 65 lbs maximum thrust
The core 12V brush platform: 45, 55 or 65 lbs of thrust, a 31 inch shaft, five forward and two reverse speeds, and an …
FT Series
45 / 55 / 65 lbs maximum thrust
Same 45 / 55 / 65 lbs thrust band and 31 inch shaft as the ET Series, with a voltage meter added to the LED indicator …
Application Scenarios
Where These Motors Are Used
Lakes, reservoirs and rivers
Freshwater Fishing
Quiet approach speed, long trolling hours from one battery and a propeller that sheds weed instead of collecting it.…
Coastal and inshore waterSaltwater Fishing
Every Hightime series carries an anti-corrosion system for seawater or saltwater use, and the brushless series add seale…
RIBs, tenders and dinghiesInflatable Boats And Tenders
A 7-level lock bracket clamps to a standard tender transom, and the 31 inch shaft suits the freeboard of most RIBs and i…
Kayaks, punts and dinghiesKayaks And Small Craft
The T Series is the entry point: 25 or 35 lbs of thrust, a 24 inch aluminium shaft and 7 kg net weight, rated for boats …
FAQ
Brush Trolling Motors Questions
What buyers ask before choosing between the families.
What Is The Real Difference Between These Two Families
Speed control, voltage span and service. The brush series uses stepped control on 12V; the brushless series uses variable control and covers 12V to 48V with no brushes to replace. Full detail is in the comparison guide.
Which Series In This Family Has The Most Thrust
The DT, ET and FT Series all top out at 65 lbs on 12V.
What Shaft Lengths Are Available
24 inch / 609 mm on the T Series and 31 inch / 788 mm on the DT, ET and FT Series.
Do These Motors Come With A Battery
No. The reference in the factory data is a 100AH deep cycle battery, supplied locally. See the battery sizing guide.
