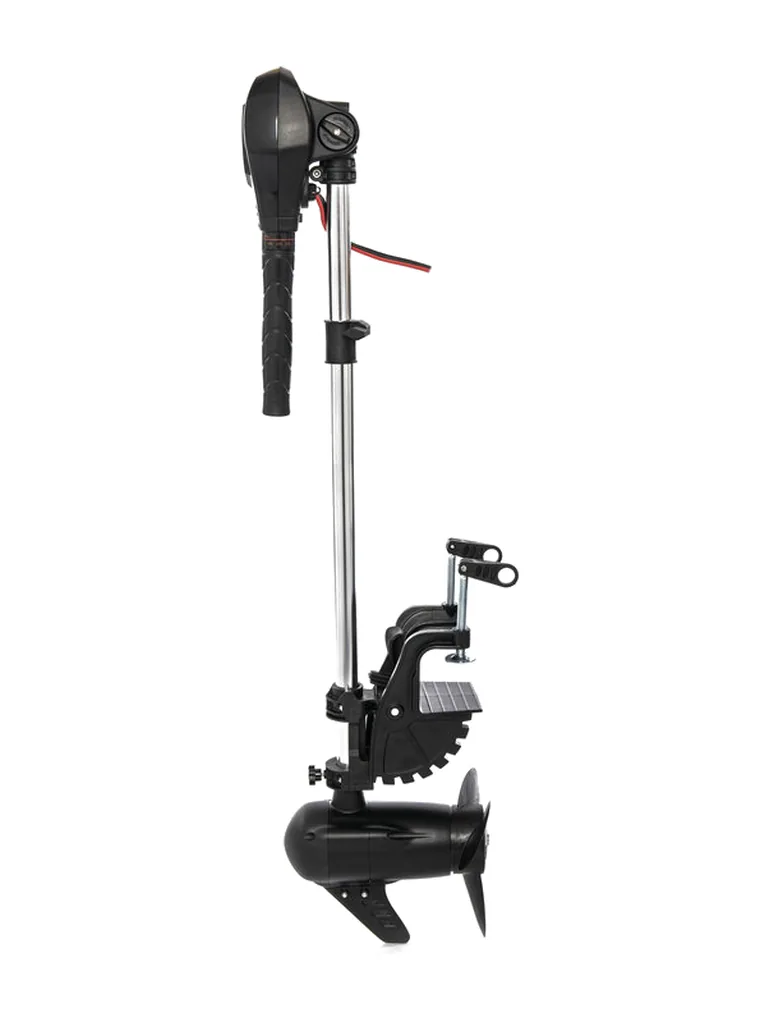

Photographs of the P150 & P250 as supplied, including the tiller head, mount bracket, shaft and propeller.
Brushless Series · P150 · P250
P150 & P250
Brushless Trolling Motor With Overload And Reverse Polarity Protection
P150 gives 70 lbs on 12V, P250 gives 110 lbs on 24V. Infinitely variable speed control, a stainless steel shaft and an aluminium 7-level bracket, for boats up to 6.5 m and 1100 kg.
70–110lbs Thrust
12/24VSupply
50 dbNoise Level
2 yrWarranty
CE / RoHS Two Years Warranty
Product Overview
What The P150 & P250 Is Built To Do
The P150 & P250 sits in the brushless half of the Hightime range at 70 lbs & 110 lbs of thrust on 12V / 24V DC. Every unit ships with the telescopic tiller, mount bracket and weedless propeller fitted, so the only item to source locally is the deep cycle battery.
P150 gives 70 lbs on 12V, P250 gives 110 lbs on 24V. Infinitely variable speed control, a stainless steel shaft and an aluminium 7-level bracket, for boats up to 6.5 m and 1100 kg.
| Motor head | All aluminium alloy |
|---|---|
| Shaft | Stainless steel |
| Mount bracket | Aluminium |
| Propeller | Weedless machete, 3-blade |
| Corrosion protection | Anti-corrosion system for seawater or saltwater use |
Materials as published for this series. Shaft material is selectable where two options are listed.
Key Benefits
Why Buyers Specify This Series
70 lbs & 110 lbs Of Thrust
Published maximum thrust for this series, with the current draw and output for every model listed in the specification table so you can size cable and battery correctly.
50 db Running Noise
Quoted at 50 db across the Hightime range, so the motor can be run on a fish-holding bank without pushing fish off the mark.
Weedless Machete Propeller
A 3-blade machete propeller that sheds weed and line instead of collecting it around the hub.
Anti-Corrosion System
Fitted for seawater or saltwater use, so the same motor can work coastal marks and freshwater.
Telescopic Tiller
An adjustable telescopic tiller, 390 mm extended on this series, so long trolling sessions are comfortable from a seated position.
Two Years Warranty
Two years manufacturer warranty on every unit, the same term across all eight Hightime series.
Problems It Solves
What Goes Wrong On The Water And What Fixes It
Problem
Petrol outboards spook fish on a shallow approach
The P150 & P250 runs at a quoted 50 db, quiet enough to hold position on a mark without moving fish.
Problem
Weed and line jam the propeller mid-session
The weedless machete propeller is designed to shed weed rather than wrap it.
Problem
Nobody knows how much battery is left
Battery power and speed status are shown on the tiller through an LED indicator and voltage meter.
Problem
Salt shortens the life of the mount and motor can
An anti-corrosion system for seawater or saltwater use is fitted as standard to this series.
Who It Is For
Application Scenarios
Distributors, tackle retailers, boat and tender builders and rental fleets buy this series for the water below.
RIBs, tenders and dinghies
Inflatable Boats And Tenders
A 7-level lock bracket clamps to a standard tender transom, and the 31 inch shaft suits the freeboard of most RIBs and inflatables…
Lakes, reservoirs and riversFreshwater Fishing
Quiet approach speed, long trolling hours from one battery and a propeller that sheds weed instead of collecting it.…
Technical Features
Feature List As Published
- Battery power and speed status is checked easily with an LED indicator and voltage meter
- Voltage: 12V DC / 24V DC
- Overload protection / reverse connection protection
- Thrust power: 70 lbs / 110 lbs
- Infinitely variable speed control
- An adjustable telescopic tiller with a handle designed to let anglers troll for hours without fatigue
- Adjustable head
- Aluminium shaft / stainless steel shaft
- All aluminium alloy motor head
- Aluminium mount bracket, easy to fit
- Weedless 3-blade machete propeller
- Anti-corrosion system for seawater or saltwater use
- CE / RoHS
- Two years manufacturer warranty
Tiller head and mount detail on the P150 & P250.
Specifications
P150 & P250 Technical Data
| Specification | P150 | P250 |
|---|---|---|
| Item No. | P150 | P250 |
| Max thrust (lbs/kg) | 70 lbs / 31.7 kg | 110 lbs / 49.8 kg |
| AMP (rated / max) | 5A – 66A | 5A – 60A |
| Output (rated / max) | 60W – 800W | 120W – 1450W |
| Voltage | DC 12V | DC 24V |
| Decibel level | 50 db | |
| Battery type | 100AH deep cycle battery (battery not included) | |
| Transom mount | 7-level aluminium lock bracket | |
| Control handle | Extended length 390 mm | |
| Speed (FWD / REV) | Infinitely variable speed control | |
| Shaft type | Stainless steel | |
| Shaft length (inch/mm) | 31 inch / 788 mm | |
| Propeller | 3-blade propeller (black) | |
| N.W. / carton | 10.1 kg | 10.5 kg |
| G.W. / carton | 11.5 kg | 12 kg |
| Package size | 37 x 110 x 20 cm | |
| Qty / carton | 1 pc | |
| Qty / 20 ft container | 273 pcs | |
| Max boat length | 6 m | 6.5 m |
| Max boat load | 700 kg | 1100 kg |
| Max speed | 10 km/h | 12 km/h |
The P150 rated output is printed as 8000W on the original factory sheet, which does not agree with the 5A – 66A current band next to it. It is shown here as 800W and should be confirmed in writing before you publish it in a catalogue.
Customisation
Options And Own Brand Supply
Shaft And Bracket
Aluminium or stainless steel shaft where both are listed for this series, with the standard 7-level lock bracket.
Own Brand
Head decals, tiller markings, manual and carton artwork to your brand. See the OEM programme.
Packing
One motor per carton as standard. Master carton, pallet plan and labelling can be set to your warehouse requirement.
Comparison
How It Compares With Other Hightime Series
| Specification | P150 & P250 | T Series | DT Series |
|---|---|---|---|
| Motor type | Brushless | Brush | Brush |
| Max thrust | 70 lbs & 110 lbs | 25 lbs & 35 lbs | 45 / 55 / 65 lbs |
| Voltage | 12V / 24V DC | 12V DC | 12V DC |
| Speed control | Infinitely variable speed control | 5 step FWD / 2 step REV | 5 forward / 3 reverse |
| Shaft | Stainless steel | Aluminium | Aluminium / stainless steel |
Full data for every series is on the product overview page.
Use Guide
Getting The P150 & P250 Onto The Water
Check The Transom
Measure transom height and confirm the 31 inch / 788 mm shaft gives the prop the depth it needs.
Clamp And Square
Fit the lock bracket to the transom, square the shaft and tighten both clamp screws evenly.
Wire The Battery
Connect to a 12V / 24V DC deep cycle battery with cable sized for the maximum current in the table above.
Set Depth And Run
Drop the shaft until the propeller is fully submerged, lock the collar and start on the lowest speed step.
FAQ
P150 & P250 Questions Buyers Ask
The points that come up most often before a first order of this series.
What Boat Size Does The P150 & P250 Suit
The published maximum boat length and load are listed in the specification table above. Match the loaded weight of the boat, not the bare hull weight, and add thrust if you fish in wind or current.
What Battery Does The P150 & P250 Need
The motor is supplied without a battery. The factory reference is a 100AH deep cycle battery at 12V / 24V DC. Size the bank from the rated and maximum current shown in the table, not from the peak figure alone.
Can We Order The P150 & P250 Under Our Own Brand
Yes. Hightime has accepted OEM orders since the company started trading. Head decals, tiller markings, carton artwork and manual can be produced to your brand. See the OEM and ODM page for what we need from you.
What Is The Warranty On This Series
Two years manufacturer warranty, the same across every Hightime series.
Is The P150 & P250 Suitable For Saltwater
Yes. An anti-corrosion system for seawater or saltwater use is fitted to this series. Rinse the motor with fresh water after every saltwater session; the routine is set out in our saltwater care guide.
How Are These Motors Packed For Export
One motor per carton. Carton size, net and gross weight and container loading are in the specification table.
