Wearable Android 10 Wristband PDA (WP201), front product view

Industrial PDA

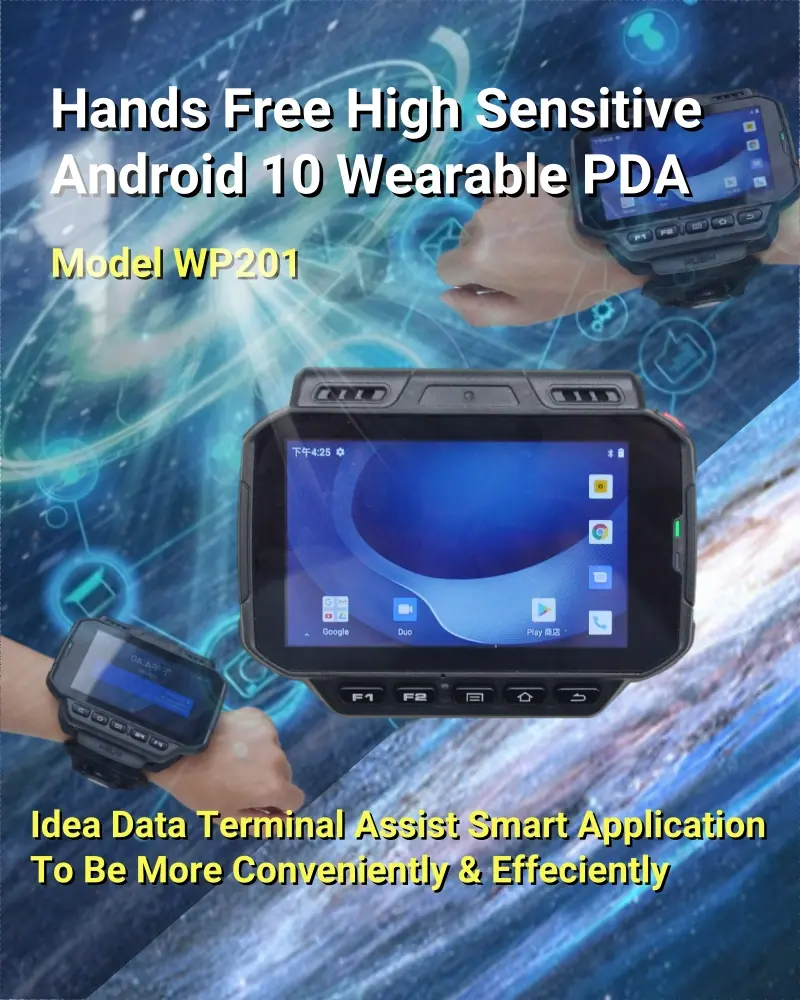

Wearable Android 10 Wristband PDA (WP201)

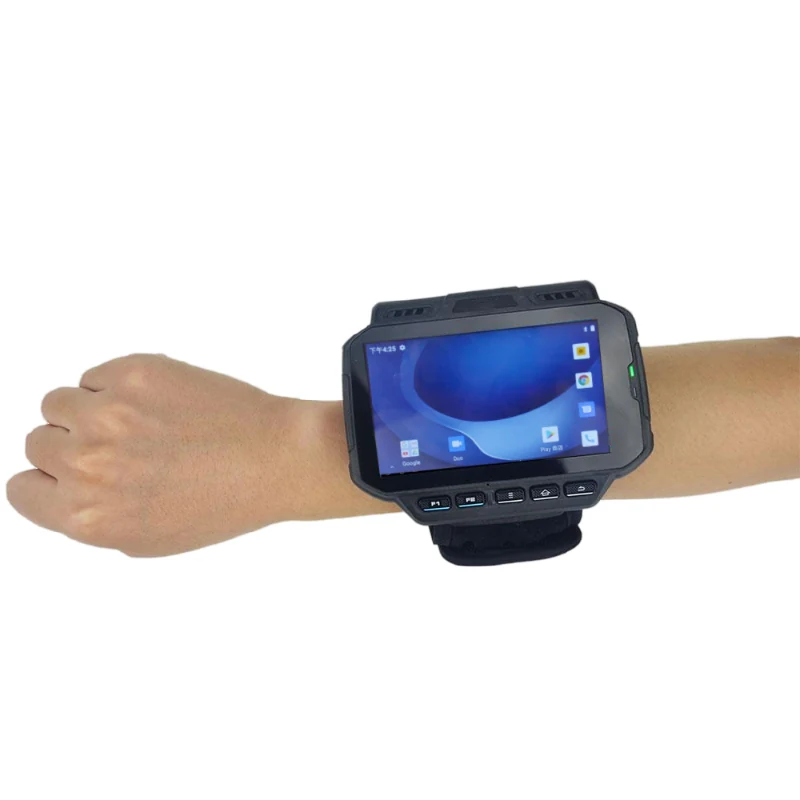

A 4-inch mobile computer worn on the wrist, so both hands stay on the goods.

Industrial PDA
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • High sensitive 4" touch screen
  • Portable, wearable and convenient
  • Android 10, Octa-core
  • 32GB + 3GB
  • LTE 4G,3G,2G,WIFI, bluetooth 5.0
  • Support GPS,AGPS, BDS navigation
  • IP65 protection grade
  • Widely used in Smart hospital, medical, heathcare, manufacturing, transportation, warehouse & inventory, express & courier, supermarket, park management, police administration etc.

Overview

What this model is for

Handheld terminals force a pick-up/put-down cycle on every carton. Worn on the forearm, this Android 10 octa-core terminal keeps the screen in view and the hands free, which matters most where operators lift with both arms — parcel sortation, hospital trolleys, supermarket replenishment.

It is a full mobile computer rather than an accessory: 3GB RAM with 32GB storage, a 4-inch touch screen, IP65 sealing, 4G LTE plus WiFi and Bluetooth 5.0, and GPS/AGPS/BDS navigation for route and zone tracking.

What it fixes

  • Operators put terminals down to lift a carton and then lose them — this one is strapped on.
  • Wrist devices that only mirror a phone cannot run your WMS; this runs Android apps natively.
  • Dust and splash kill unsealed consumer wearables in a transport environment.

Who buys it

Parcel and express sortation, hospital logistics, supermarket replenishment, manufacturing line-side, park and facility management.

Typical positions

  • Parcel sort and load verification
  • Line-side kitting
  • Shelf replenishment
  • Field service check-in

Why it holds up

Four things that decide whether this works in your position

Hands-free by design

The terminal rides on the wrist instead of occupying a hand, so lifting and scanning stop competing.

IP65 sealed

Rated against dust and water jets for transport docks, wash-down areas and outdoor rounds.

Full Android 10 apps

Runs your existing WMS or courier client — this is a mobile computer, not a dumb scanner.

4G plus dual connectivity

LTE for the road, WiFi for the building, Bluetooth 5.0 for printers and peripherals.

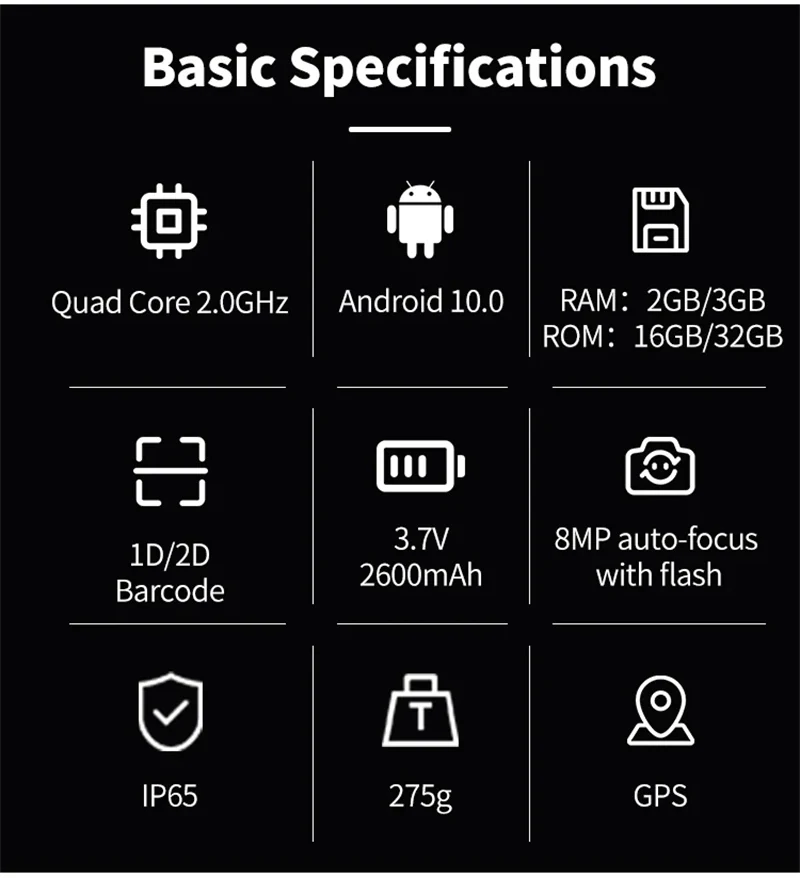

Specifications

Published specification

Specifications as published by the manufacturer for this model.
O.S.Android 10
ProcessorOcta-core 2.0 GHz Quad-core 2.0GHz (optional)
MemoryRAM: 3GB, ROM: 32GB
Extended memoryMicro SD card, Up to 128 GB
Dimensions118mm×91mm×18mm
Weight275g

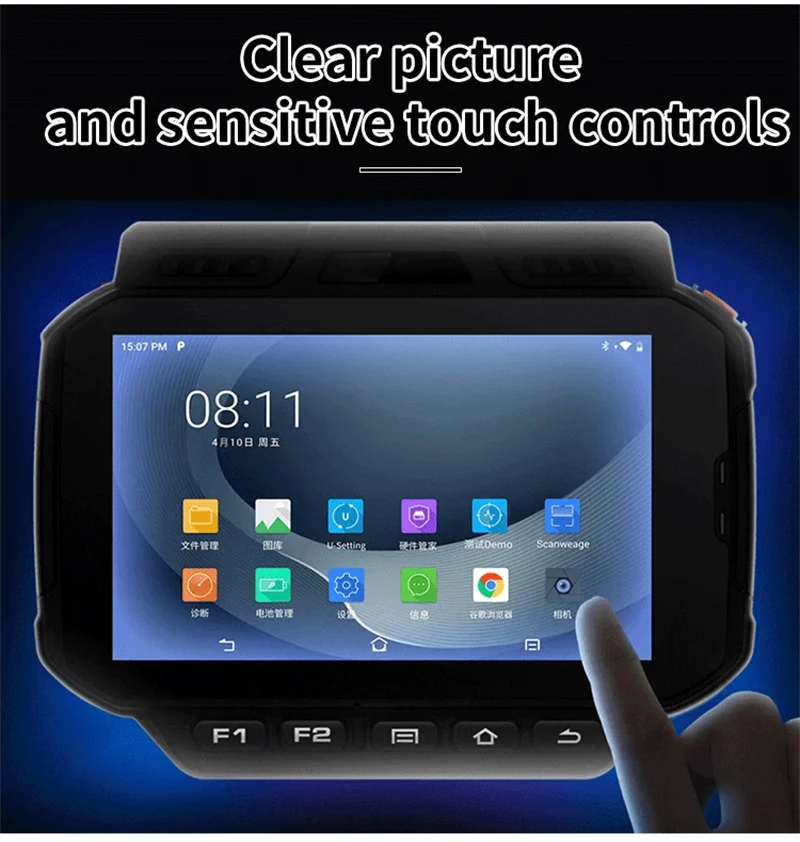

Display4.0 inch display (480×800)
Touch ScreenUltra sensitive capacitive touch panel, support multi-touch, works with gloves and wet fingers

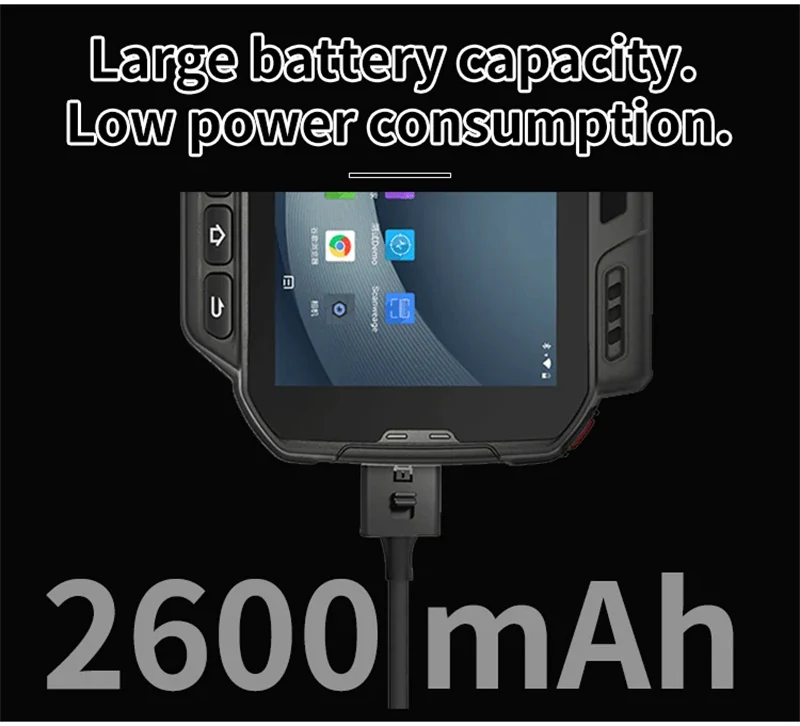

Main batteryCapacity: 3.8V 2600mAh
Charging timeLess than 4 hours
ButtonsPower，Menu, Home, Back, F1, F2
CameraRear 8MP
SlotsMicro-SIM*1
AudioMicrophone, Speaker
InterfacesUSB Type-C, Pogo pin
PositioningGPS, A-GPS, BEIDOU, GLONASS, Galileo
WWAN4G, 3G, 2G
BluetoothBT 5.0 + BR/EDR + BLE
Wi-Fi2.4G/5G, IEEE 802.11a/b/g/n/ac Roaming: 802.11r
Temperature-10°C~50°C
Storage-40°C～70°C
Humidity5%RH～95%RH (No condensation)

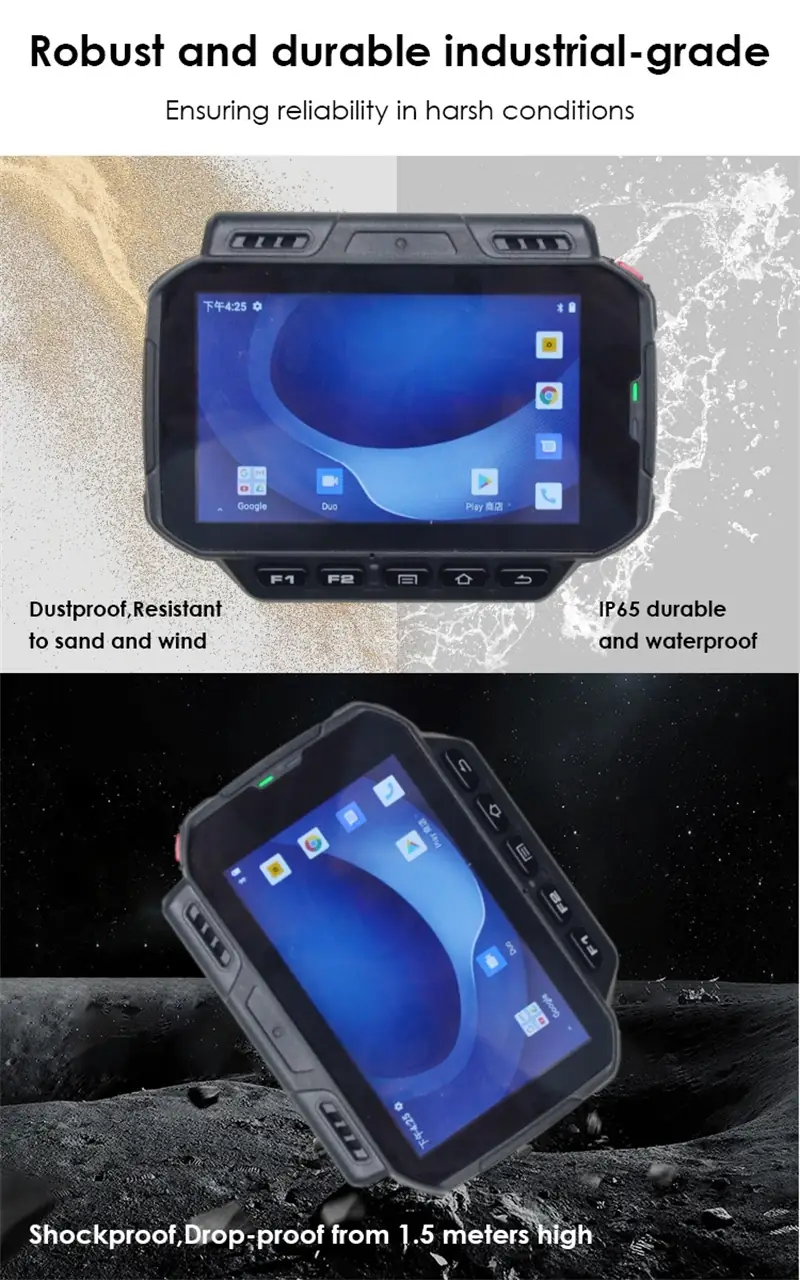

Drop SpecificationMultiple 5 ft./1.5 m drop to concrete at room temperature
SealingIP65

Questions

About the Wearable Android 10 Wristband PDA (WP201)

Which codes does the Wearable Android 10 Wristband PDA (WP201) read?
It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
Does the Wearable Android 10 Wristband PDA (WP201) need a driver installed?
The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.
Can the Wearable Android 10 Wristband PDA (WP201) be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the Wearable Android 10 Wristband PDA (WP201)?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the Wearable Android 10 Wristband PDA (WP201)?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.

Compare

Related models

Quote the Wearable Android 10 Wristband PDA (WP201)

Tell us the quantity, the destination country and the host operating system, and we will come back with a price, a lead time and the certificate documents that exist for this model.
