  4. GJY F7 Android 14 GMS Rugged Mobile Computer
GJY F7 Android 14 GMS Rugged Mobile Computer, front product view

Industrial PDA

GJY F7 Android 14 GMS Rugged Mobile Computer

GMS-certified Android 14 with an optional Zebra or Honeywell scan engine.

Industrial PDAModel GJYF7
Quote on WhatsApp Email for a quotation

Manufacturer feature list

  • Latest Android 14 with GMS cerfified
  • 32GB + 2GB (64GB + 4GB optional)
  • Professional barcode scan engine and zebra/honeywell scan engine optional
  • 5000mAh large capacity battery
  • LTE 4G,3G,2G,WIFI, bluetooth 5.0, NFC approval
  • 4inch touch screen with keyboard
  • Support GPS,AGPS, Glonass, BDS navigation
  • IP67 protection grade

Overview

What this model is for

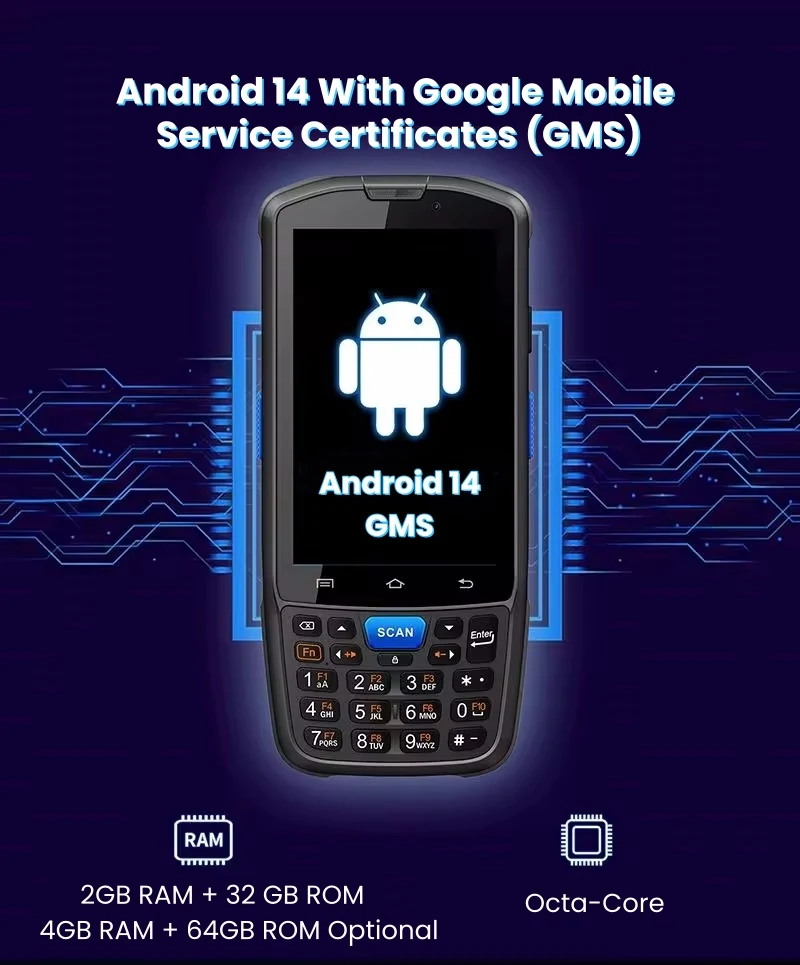

Android 14 with Google Mobile Services certification is what lets an enterprise deploy through Google's management tooling rather than sideloading. The GJY F7 carries that certification in an IP67 rugged body with a 4-inch touch screen and a physical keyboard.

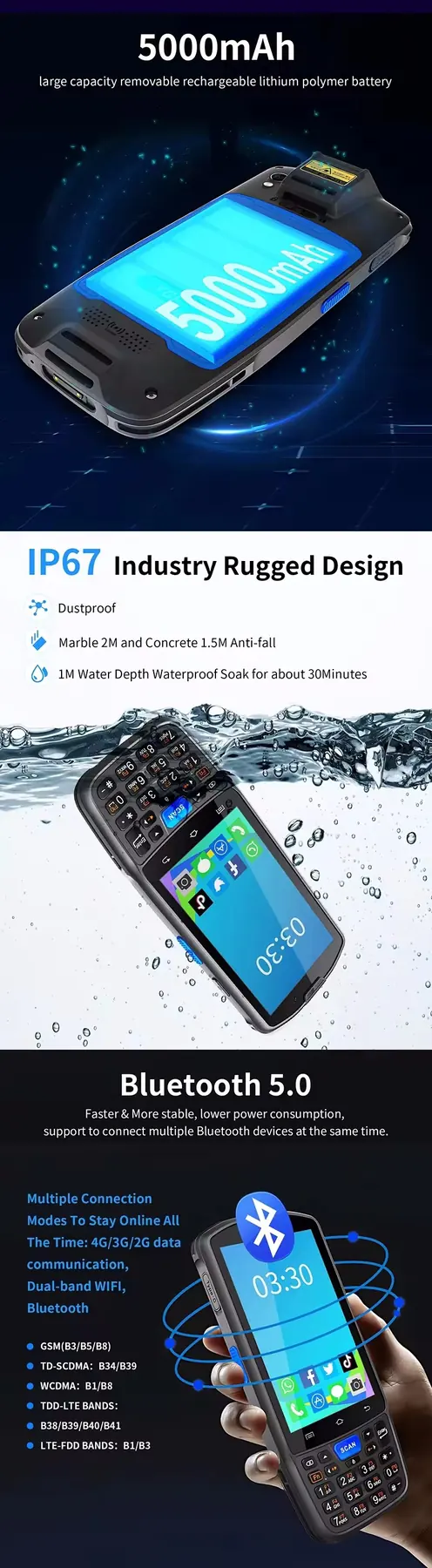

The scan engine is a choice, not a fixed part: the professional in-house engine, or a Zebra or Honeywell engine where a customer's existing estate or decoding requirement demands it. It ships with 32GB storage and 2GB RAM, optionally 64GB and 4GB, a 5000mAh battery, 4G LTE, WiFi, Bluetooth 5.0, NFC and GPS/AGPS/Glonass/BDS positioning.

What it fixes

  • Non-GMS terminals cannot be enrolled in standard Android enterprise management.
  • Replacing a Zebra fleet means matching its decode behaviour or retraining everyone.
  • Touch-only terminals are slow for gloved numeric entry.

Who buys it

Enterprise logistics, retail chains, field service organisations and integrators replacing an ageing branded fleet.

Typical positions

  • Managed enterprise rollout
  • Mixed-fleet replacement
  • Field service work orders
  • Warehouse operations

Why it holds up

Four things that decide whether this works in your position

GMS certified Android 14

Enrol and manage through standard Android enterprise tooling.

Zebra or Honeywell engine optional

Match the decoding behaviour of an existing fleet.

IP67 with keyboard

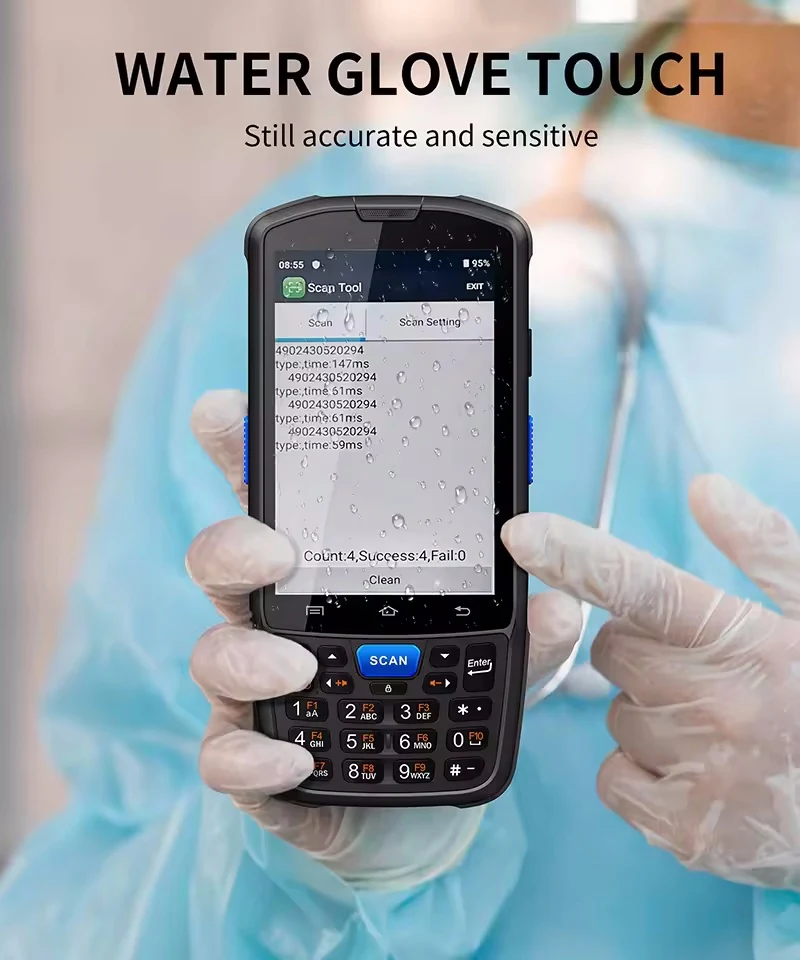

Physical keys for gloved and eyes-up data entry.

5000mAh plus NFC

Full shift power with contactless card reading on board.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
ModelGJYF7
Product NameAndroid 14 GMS Keyboard 4' Touch Screen IP67 Mobile Computer With Zebra Scan Engine 64GB ROM + 4GB RAM GPS NFC OTG WIFI Bluetooth
ModelGJYF7
ProcessorMT6762V/WB(Octa-core，4*A53 2.0GHz)
Operating SystemAndroid 14
Memory32 GB ROM+2 GB RAM(Standard) (64GB + 4GB optional)
Expansion SlotMicro SD card (Up to 64GB SDHC)
Display4.0"，WVGA，800*480, IPS
Touch PanelCapacitive touch panel
Front CameraN/A
Rear Camera5MP, AF, with flash LED
Touch GlasTempered glass
Keypad22 physical keyboard keys on the front 1 power key, 2 scan keys on the side;
Battery Capacity5000mAh removable lithium polymer battery
Fast charge5V/2A
Speaker3413 big speaker
PromptVibration prompt /LED prompt/audio prompt
VibrationBuilt-in vibration motor
SensorG-sensor
Wireless WAN (Network frequency）GSM(B3/B5/B8)TD-SCDMA: B34/B39 WCDMA: B1/B8 TDD-LTE Bands: B38/B39/B40/B41 LTE-FDD Bands: B1/B3 Optional for other special Band
Wireless WAN (Data Service）GSM/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE
Wireless LANWi-Fi 802.11 a/b/g/n/ac/k/v/r(Dual bands: 2.4GHz+5GHz)
BluetoothBluetooth 5.0
GPSSupport GPS/AGPS/Glonass/BDS
Scan engineProfessional scanner SE6100-2D (developed together with Zebra)
Optical resolution1280*800 Pixes
Scan precision≥3mil , Code 39/128
Scan AnglesTilt:360°，Pitch:±45°，Skew:±60°
Laser Safety GradeClass II
Frequency13.56 MHz
Reading DistanceWithin 2cm
ProtocolISO14443A/ISO14443B
Special featureSupport contactless CPU card, support 2 generation ID card read
Operating Temp.-20~55°

Questions

About the GJY F7 Android 14 GMS Rugged Mobile Computer

Which codes does the GJY F7 Android 14 GMS Rugged Mobile Computer read?

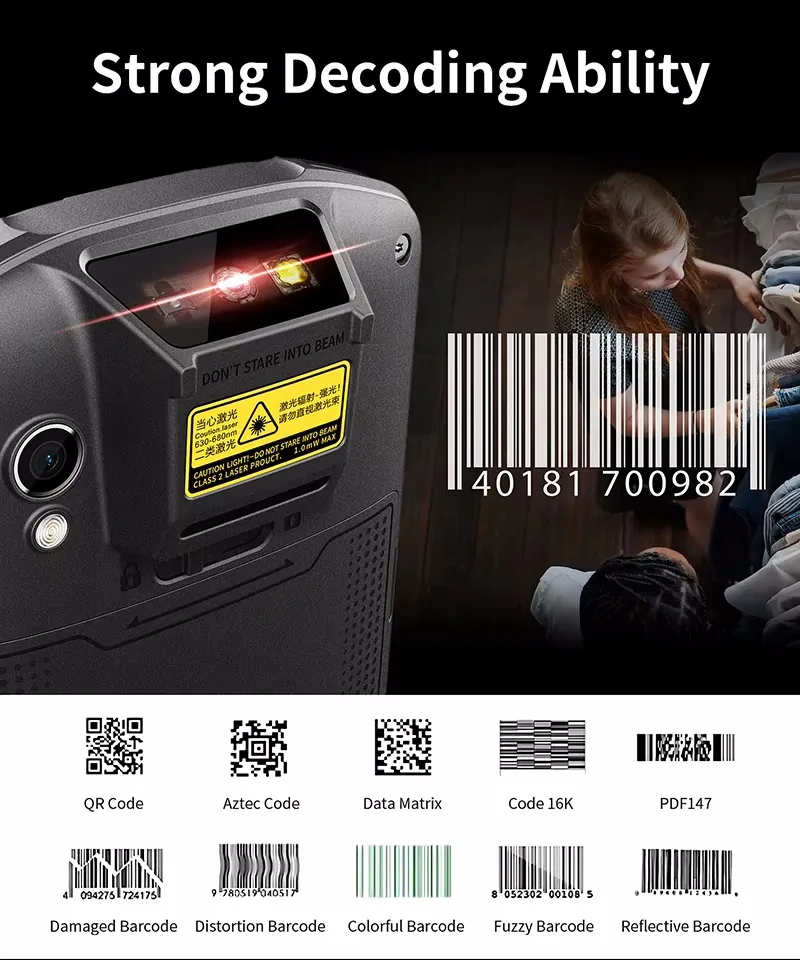

It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.
Does the GJY F7 Android 14 GMS Rugged Mobile Computer need a driver installed?
The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.
Can the GJY F7 Android 14 GMS Rugged Mobile Computer be supplied under our own brand?
Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.
What is the lead time and warranty on the GJY F7 Android 14 GMS Rugged Mobile Computer?
Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.
Which documents can you provide for the GJY F7 Android 14 GMS Rugged Mobile Computer?
CE, RoHS, MSDS and UN38.3 approvals are stated for the product range. Request the certificate document for this specific model before relying on it in a tender, and we will send what exists for it.

Compare

Related models

Quote the GJY F7 Android 14 GMS Rugged Mobile Computer

Tell us the quantity, the destination country and the host operating system, and we will come back with a price, a lead time and the certificate documents that exist for this model.
