PF1602 Embedded Desktop MRZ OCR Reader

Passport and ID Reader

PF1602 Embedded Desktop MRZ OCR Reader

A global-shutter 1.3MP imager that reads both barcodes and ICAO 9303 MRZ, built to embed.

Passport and ID ReaderModel PF1602

Quote on WhatsApp Email for a quotation

Manufacturer feature list

OCR MRZ Readable, support ICAO 9303 documents such as passport, ID Card, Visa etc.
1D, 2D and QR code Area Imaging Scanner
Sensor: CMOS global shutter
Image Pixels:1,300,000(1280pixels * 1080pixels)
Fast Decoding Speed: 120CM/S
Reading Precision: ≥4mil/0.1mm (PCS90%,CODE 39)
Plug & Play, no need driver and user friendly
Workable at harsh environment: -20°C to 50°C, esepcially suitable for cold chain warehouse
Automatic sleep and wake-up
Low power consumption

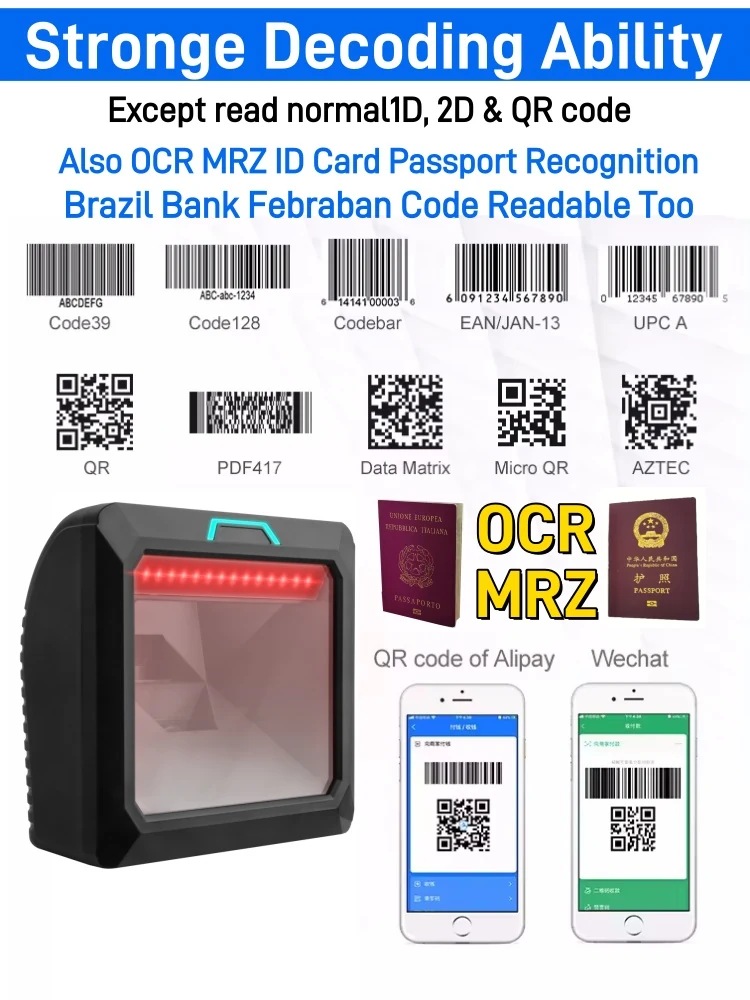

Strong decodeing ability:

Overview

What this model is for

The PF1602 is a fixed-mount area imager designed to be dropped into a kiosk or sat on a counter and left alone. It reads mainstream 1D and 2D codes and performs OCR on the MRZ of ICAO 9303 documents — passport, ID card and visa — from the same window.

Its CMOS global shutter at 1,300,000 pixels (1280 x 1080) removes the motion smear that rolling-shutter modules produce on a swiped document, with a quoted decoding speed of 120cm/s and reading precision of 4 mil / 0.1mm (PCS90%, Code 39). It is plug and play with no driver, sleeps and wakes automatically, and is rated from -20°C to 50°C, which covers cold-chain warehouse use.

What it fixes

Rolling-shutter modules fail on anything that moves across the window.
Separate MRZ and barcode readers double the kiosk bill of materials.
Driver installation across a kiosk fleet is an ongoing support cost.

Who buys it

Kiosk and self-service manufacturers, access control integrators, cold-chain warehouses, banks and retail.

Typical positions

Self-service kiosk embedding
Cold-store fixed scanning point
Counter identity plus product scanning
Gate machine integration

Why it holds up

Four things that decide whether this works in your position

Global shutter

Reads a document or label in motion without smear.

Barcode and MRZ on one window

One module covers goods scanning and identity checks.

Driver-free deployment

Plug and play across hosts, which matters for fleets of kiosks.

-20°C to 50°C

Specified for cold-chain warehouses as well as indoor counters.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
Model	PF1602
Image sensor	1
Scan rate	120CM/S
Reading precision	≥4mil/0.1mm (PCS90%
1D symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISBN, ISSN, Code 128, GS1-128, ISBT, Code 39, Code 32, Code 93, Code 11, Codabar (NW-7), Interleaved 2 of 5,Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Standard 2 of 5(IATA 2 of 5),NEC 2of 5, MSI, Telepen, Trioptic, BC412, Febraban, Coupon.
2D symbologies	QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode,Aztec, HanXin Code, Pharma Code (One-Track), Codablock A, Codablock F,Dot Code, Grid Matrix, etc.

Questions

About the PF1602 Embedded Desktop MRZ OCR Reader

Which codes does the PF1602 Embedded Desktop MRZ OCR Reader read?

It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.

Does the PF1602 Embedded Desktop MRZ OCR Reader need a driver installed?

The plug-and-play models in this range present to the host without a driver, which is what makes a multi-site rollout practical. Confirm the host OS with us and we will state exactly what is required for this model.

Can the PF1602 Embedded Desktop MRZ OCR Reader be supplied under our own brand?

Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.

What is the lead time and warranty on the PF1602 Embedded Desktop MRZ OCR Reader?

Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.

Which documents can you provide for the PF1602 Embedded Desktop MRZ OCR Reader?
