EPP202-MRZ Full Page Passport OCR Scanner

Passport and ID Reader

EPP202-MRZ Full Page Passport OCR Scanner

Full-page imaging plus MRZ extraction, with the SDK exposing the full configuration API.

Passport and ID ReaderModel EPP202-MRZ

Quote on WhatsApp Email for a quotation

Manufacturer feature list

400 DPI high resolution imaging
Scanning window 92mm x 125mm
Multiple wavelength illumination Visible IR – UV
OCR data capture
Complete access to OCR data and images captured via Software Development Kit (SDK)
Near IR B900, 860nm
White visible, 430-680nm
UV A, 365nm
Sensor: 1 Megapixels, CMOS, RGB 24 bit color system
Standard 400 DPI image resolution
USB 2.0 high speed compatible
Flexible software interface allows host application to select which illumination sources to use, image type, image compression, photo extraction, LED control
Simple high level API for quick program development
SDK provides full configuration API

Overview

What this model is for

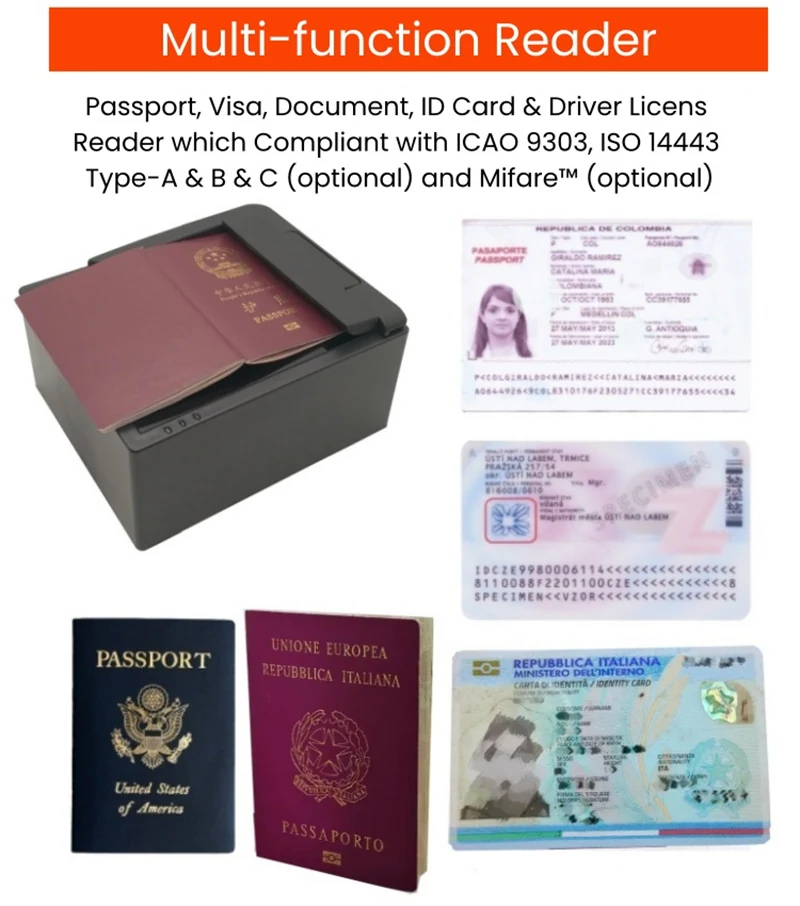

The EPP202-MRZ configuration is aimed at integrators who need the whole data page and the parsed MRZ from one device, and who intend to build the capture behaviour themselves rather than accept a fixed workflow.

It images at 400 DPI across a 92mm x 125mm window using white visible (430-680nm), near infrared B900 (860nm) and UV A (365nm) illumination, on an RGB 24-bit 1-megapixel CMOS sensor over USB 2.0 high speed. The SDK provides a full configuration API covering illumination source selection, image type, compression, photo extraction and LED control.

What it fixes

Fixed-workflow readers cannot be adapted to a national verification rule.
Separate photo extraction steps add latency to enrolment.
MRZ text alone is not enough evidence for a regulated record.

Who buys it

System integrators, border and immigration projects, banking KYC platforms, kiosk and access control vendors.

Typical positions

KYC enrolment terminals
Border inspection desks
Self-service registration kiosks
Visa application capture

Why it holds up

Four things that decide whether this works in your position

Full configuration API

Every capture parameter is under the host application's control.

Page image and MRZ together

One placement produces both the evidence image and the parsed data.

Multi-wavelength imaging

Visible, IR and UV channels available per capture.

Photo extraction

The portrait is returned as a separate image for record systems.

Specifications

Published specification

Specifications as published by the manufacturer for this model.
Model	EPP202-MRZ
Connection	USB wired

Questions

About the EPP202-MRZ Full Page Passport OCR Scanner

Which codes does the EPP202-MRZ Full Page Passport OCR Scanner read?

It reads the mainstream 1D families together with 2D codes including QR, PDF417 and Data Matrix. Send a photograph or a sample of the exact label you need to read and we will confirm against this model before you order.

How does the EPP202-MRZ Full Page Passport OCR Scanner connect to a host?

Supported connection modes are: USB wired. Tell us the host operating system and whether a radio is permitted at that position, and we will advise which mode to order.

Can the EPP202-MRZ Full Page Passport OCR Scanner be supplied under our own brand?

Yes. OEM and ODM are supported with experienced engineers and an in-house production line, and for some products the software can be customised as well as the hardware. Mini and mix orders are accepted, so a specification can be validated in a pilot first.

What is the lead time and warranty on the EPP202-MRZ Full Page Passport OCR Scanner?

Samples of stock items are dispatched in 1 to 2 working days after payment is received. OEM and bulk order lead times are quoted per project. Warranty is 12 months after delivery; during that period damage caused by non-human factors is repaired free of charge.

Which documents can you provide for the EPP202-MRZ Full Page Passport OCR Scanner?
