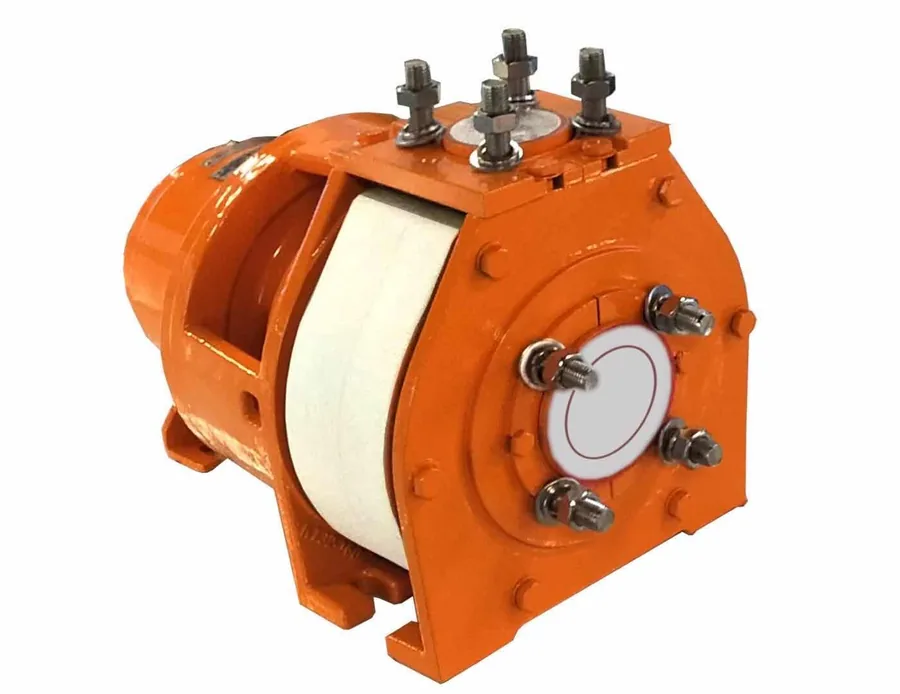

Horizontal single-stage, back-pull-out, PP / PE / UHMW-PE
The KCP series is a horizontal single stage water pump with a back pull out construction. The wetted parts are thermoplastic — PP, PE or UHMW-PE — and the pump handles a solid content of approximately 10 per cent.
It is offered with a closed or a semi-open impeller and mounted either on a welded base frame or on a cast iron base plate. Bearings are grease lubricated and the shaft seal is a single type.
PP, PE and UHMW-PE are available where a plastic wetted part is preferred over metal.
A solid content limit value of approximately 10 per cent.
The impeller is selected to suit the liquid rather than fixed by the frame.
The rotating assembly is withdrawn without disturbing the casing or the pipework.
No oil system, no oil level to check and no oil to change.
A welded base frame or a cast iron base plate depending on the installation.
Duty where the liquid carries around 10 per cent solids.
Continuous operation with a liquid temperature up to 80°C.
| Problem | How the KCP Series Answers It |
|---|---|
| A Metal Wetted Part Is Not Wanted | PP, PE and UHMW-PE are offered as the wetted materials. |
| The Liquid Carries Solids | The series is rated for a solid content of approximately 10 per cent. |
| A Large Discharge Is Needed | The discharge nozzle goes up to DN 250 with a drive rating up to 200 kW. |
| Oil Lubrication Adds Maintenance | Bearings are grease lubricated. |
| Type | Horizontal, single-stage |
|---|---|
| Construction | Back-pull-out design |
| Impeller | Closed or semi-open |
| Sealings | Single type |
| Bearing Lubrication | Grease |
| Installation Versions | Base frame welded or cast iron base plate |
| Ambient Temperature | 0°C to 60°C |
| Operation Temperature | Up to 80°C |
| Solid Content Limit Value | approx. 10 % |
| Materials | PP, PE, UHMW-PE |
| Pump Capacity | up to 300 m³/h |
|---|---|
| Total Differential Head | up to 60 m |
| Operating Temperature [t] | -20°C up to +80°C |
| Operating Pressure [p] | up to 10 bar |
| Diameter of Discharge Nozzle | DN 25 up to DN 250 |
| Drive Rating [P] | up to 200 kW |
Polypropylene, the standard thermoplastic wetted material.
Polyethylene.
Ultra high molecular weight polyethylene, the most wear resistant of the three.
Casings and impellers are machined in house, staged through the parts store and assembled into complete sets. Finished pumps are coupled up on the test bench with the suction and discharge lines connected before they are packed.
Casings and impellers in the specified material.
Machining bays under overhead travelling cranes.
Machined parts and hardware held ready for assembly.
Rotating element, casing, coupling and motor on the baseplate.
The set is run on the test bench before packing.
The options below are the ones listed for this series. Tell us the liquid, the temperature, the duty point and the flange standard on site and we will confirm the build.
| Series | Standard or Type | Summary |
|---|---|---|
| CN Series | ANSI/ASME B73.1 | Pump is for water application |
| CI Series | ISO 2858 | Material: Cast Iron, Carbon Steel, SS304 |
| KCP Series (this product) | Horizontal Single Stage | Horizontal single-stage, back-pull-out, PP / PE / UHMW-PE |
| DE Series | DN 25 – DN 400 | Size DN 25-400 mm, Flow Q ≤ 600 m³/h |
| FA Series | BS EN733 / DIN24255 | Flow 2-1100 m³/h, Head 2-152 m, BS EN733 / DIN24255 |
| VNP Series | Vertical Single Stage | Vertical sump pump for water and waste water. Pump material is PP. |
Flow, head, liquid, temperature and supply frequency decide the size. Give the normal duty and the maximum duty if they differ.
The wetted material is chosen for the liquid, not for the pump. Check the materials listed above against what you are pumping.
See the installation, commissioning, operation and maintenance notes in the service section before the pump arrives on site.
Pump is for water application
Material: Cast Iron, Carbon Steel, SS304
Size DN 25-400 mm, Flow Q ≤ 600 m³/h
PP, PE and UHMW-PE.
Capacity up to 300 m³/h and total differential head up to 60 m.
DN 250. The range starts at DN 25.
A solid content limit value of approximately 10 per cent.
-20°C up to +80°C, with an ambient temperature of 0°C to 60°C.
Up to 10 bar.
Up to 200 kW.
Both are available. The choice depends on the liquid and the solid load.
Send the duty point and the liquid and we will confirm the size, the materials and the delivery.
