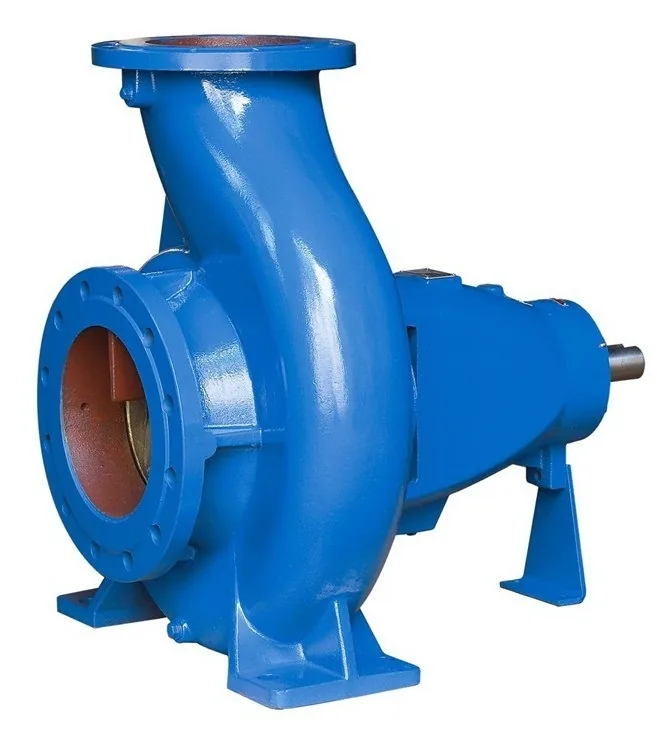

The FA series is built to BS EN 733 / DIN 24255, the European dimensional standard for single stage end suction pumps rated to 10 bar. Because the standard fixes the flange positions and shaft height, an FA pump replaces any other EN 733 pump of the same size on the existing foundation.
Sub category on the original catalogue: FA Centrifugal Pump.
Flow 2-1100 m³/h, Head 2-152 m, BS EN733 / DIN24255
Every figure below is taken directly from the product data sheets.
| Series | Item | Value |
|---|---|---|
| FA Series | Flow Rate (Q) | 2-1100 m³/h |
| FA Series | Head (H) | 2-152 m |
| FA Series | Speed | 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ) |
| FA Series | Temperature | -10 Celsius to 105 Celsius |
| FA Series | Working Pressure | 1.2 MPa standard, 1.6 MPa on request |
| FA Series | Size | DN32 – 250 |
Sites where every pump has to sit inside the same dimensional envelope so spares and baseplates stay common.
Teams replacing a worn unit without re-grouting the base or re-routing the pipework.
Contractors buying against a pump schedule that names the standard, the size and the duty point.
It holds FA Horizontal Water Centrifugal Pump in DIN 24255.
Send us the series name and the duty point by email and we will return the selection and the data for the size you need.
Where the series follows a published dimensional standard, a pump of the same size exchanges with any other pump built to the same standard.
It depends on the series. The materials listed for each product are shown on its own page.
Tell us the flow, head, liquid and temperature and we will select the size from this category.
