5,000 m² Biopharmaceutical Cold Chain Logistics Center — GSP & FDA Compliant
A 5,000 m² GSP- and FDA-compliant biopharmaceutical cold chain logistics center built by HOWCOOL in Shanghai — multi-temperature zones from +15℃ to -35℃, AGV robotic handling and 24-hour temperature monitoring, delivered in 80 days.
- 5,000 m² / multi-zone
- -35℃ to +15℃
- 80 days
- 2025
Background And Requirement
HOWCOOL built this 5,000 m² biopharmaceutical cold chain logistics center in Shanghai for a specialist pharmaceutical cold-chain operator. The client is a professional provider of comprehensive pharmaceutical cold-chain solutions, serving clinical supply chains, new-drug R&D, life sciences, in-vitro diagnostics and biomedicine, and focused on global door-to-door pharmaceutical supply-chain services.
The center complies with GSP and FDA regulations and meets the acceptance requirements of international customers. It is divided into multiple functional zones covering four temperature bands — 10–15℃, 2–8℃, -18 to -25℃ and -30 to -35℃ — with humidity held between 35% and 75% to suit different classes of drugs, vaccines and biological samples.
Internal logistics use AGV (automated guided vehicle) robotic transport, and every temperature and humidity parameter is monitored in real time, 24 hours a day, through a whole-process temperature-monitoring system — giving full traceability and audit-ready records for regulated pharmaceutical storage.
Acting as general contractor, HOWCOOL completed the entire project within 80 days, from civil interface to commissioning and handover, and it now operates as a pharmaceutical cold chain logistics center serving the Shanghai region.
HOWCOOL has delivered refrigeration projects for the top 5 players in China's biopharmaceutical cold-chain logistics sector, and built pharmaceutical cold-chain centers across nearly 40 first- and second-tier Chinese cities. We have served close to 2,000 well-known pharmaceutical companies — including Fortune 500 pharmaceutical manufacturers — and drug cold storage for nearly 300 hospitals nationwide.
Project Facts
| Location | Shanghai, China |
|---|---|
| Capacity | 5,000 m² / multi-zone |
| Temperature | -35℃ to +15℃ |
| Programme | 80 days |
| Completed | 2025 |
| Sector | Pharmaceutical |
A pharmaceutical-grade multi-temperature facility with four temperature bands (10–15℃, 2–8℃, -18 to -25℃, -30 to -35℃) and 35–75% humidity control, AGV internal logistics and whole-process 24-hour monitoring — built to GSP, FDA and international acceptance standards.
How The Project Was Delivered
- 01
Design & GSP/FDA Compliance
Multi-zone pharmaceutical layout designed to GSP, FDA and international acceptance standards, defining the four temperature bands, humidity control and validation requirements.
- 02
Insulated Envelope & Rooms
Steel structure and polyurethane panels forming the segregated temperature rooms, with pharmaceutical-grade insulated doors, airlocks and cleanable finishes.
- 03
Refrigeration & Environmental Control
Independent refrigeration systems per zone with humidity control (35–75%), redundant units and even air distribution for tight, uniform temperature.
- 04
Automation & Monitoring
AGV robotic material handling and a whole-process 24-hour temperature-and-humidity monitoring system with alarms and audit-ready data logging.
- 05
Validation & Handover — 80 Days
Mapping and validation of every zone against the acceptance criteria, operator training and handover — the complete project delivered in 80 days.
What Was Supplied
- Independent refrigeration systems per temperature zone
- Multi-band temperature control: +15℃ down to -35℃
- Humidity control system (35–75% RH)
- Pharmaceutical-grade insulated cold-store doors and airlocks
- Polyurethane insulation panels with cleanable finishes
- AGV (automated guided vehicle) internal logistics
- Whole-process 24-hour temperature & humidity monitoring
- Real-time alarms and audit-ready data logging
Results At Handover
Facility Area
Multi-temperature biopharmaceutical cold chain logistics center in Shanghai.
Delivery Time
Complete project delivered as general contractor, from build to handover.
Pharma Clients Served
Including Fortune 500 pharmaceutical manufacturers and ~300 hospitals nationwide.
Temperature & Humidity Zones
| Zone | Temperature | Typical Use |
|---|---|---|
| Controlled room temperature | 10℃ to 15℃ | Room-temperature pharmaceuticals |
| Cold chain | 2℃ to 8℃ | Vaccines, biologics, reagents |
| Frozen | -18℃ to -25℃ | Frozen drugs and samples |
| Deep freeze | -30℃ to -35℃ | Ultra-low-temperature storage |
| Humidity | 35% to 75% RH | Controlled across all zones |

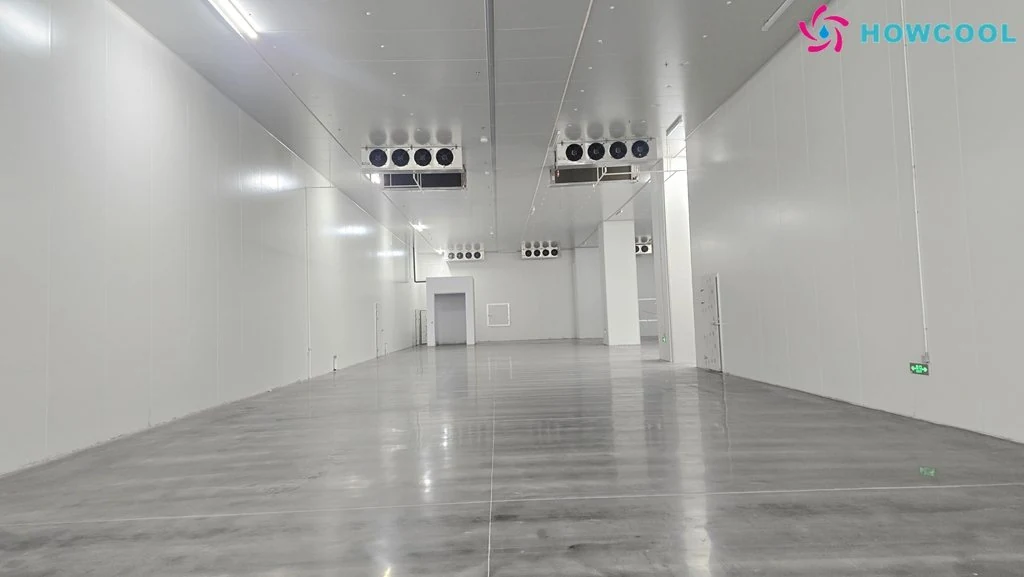

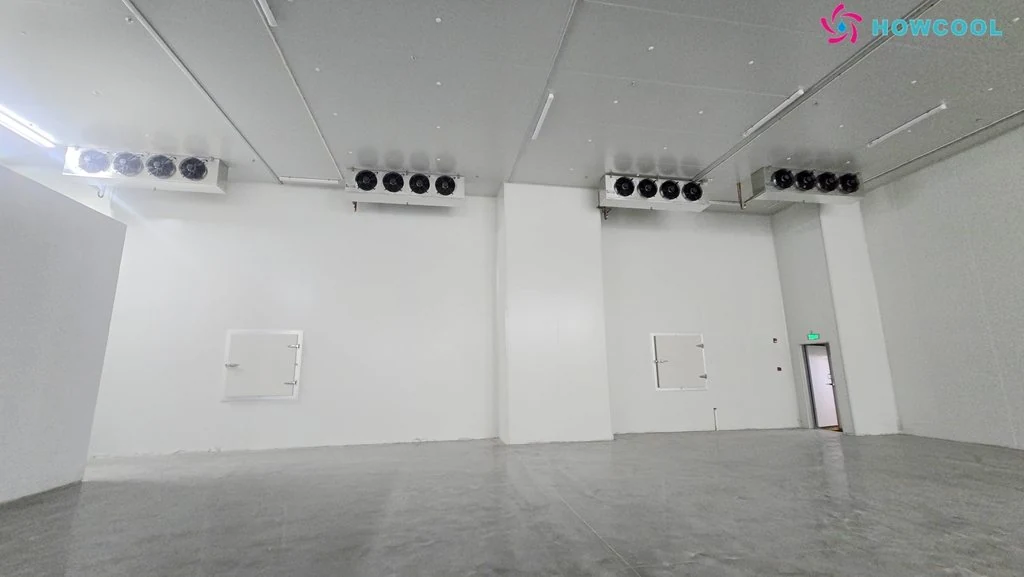

Photographs From Site
Questions About This Project
How large is the 5,000 m² Biopharmaceutical Cold Chain Logistics Center project?
5,000 m² / multi-zone, located in Shanghai, China.
What temperature does the facility operate at?
-35℃ to +15℃.
How long did the project take?
80 days, completed 2025.
What equipment was supplied?
Key items included independent refrigeration systems per temperature zone; multi-band temperature control: +15℃ down to -35℃; humidity control system (35–75% rh). Full equipment lists are issued with the design pack.
Can Howcool deliver a similar facility for us?
Yes. Send your storage volume or tonnage, target temperature, product type and site location, and our engineers will return a preliminary design and budget estimate within 48 hours.
