9 Inch Combination Headlight,High Low Beam
The 9 Inch Combination Headlight,High Low Beam is a 9 inch 82W LED lamp from the Dantech LED Head Lights range, supplied with a turn signal beam and rated IP68.
- 82W
- 1,920 lm
- IP68
- 9-32V DC
- ECE R10
- ECE R112
- ECE R87
- ECE R6
- DOT
- CE
- RoHS
What This Lamp Is Built to Do
It runs on 9-32V DC, produces 1,920 lm of effective output and is listed with ECE R10, ECE R112, ECE R87, ECE R6, DOT, CE, RoHS.
High and low beam headlamp units, including heated lenses for snow and ice duty.
Key Benefits
- 1,920 lm of effective output from a 82W draw, so the figure on the sheet is what reaches the work area rather than what the bare LED chips produce
- Sealed to IP68, which keeps field dust and wash-down water out of the driver compartment
- A 9-32V DC input window means the same part number covers more than one machine voltage in your fleet
- Listed with ECE R10, ECE R112, ECE R87, ECE R6, DOT, CE, RoHS, so the paperwork is ready when the shipment is inspected
- Available with a turn signal beam, matched to the working distance rather than to a wattage figure

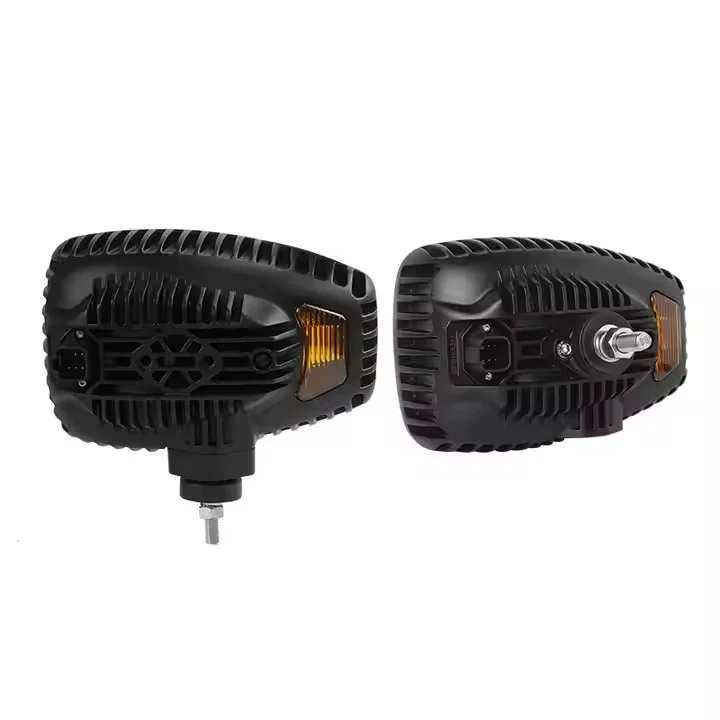

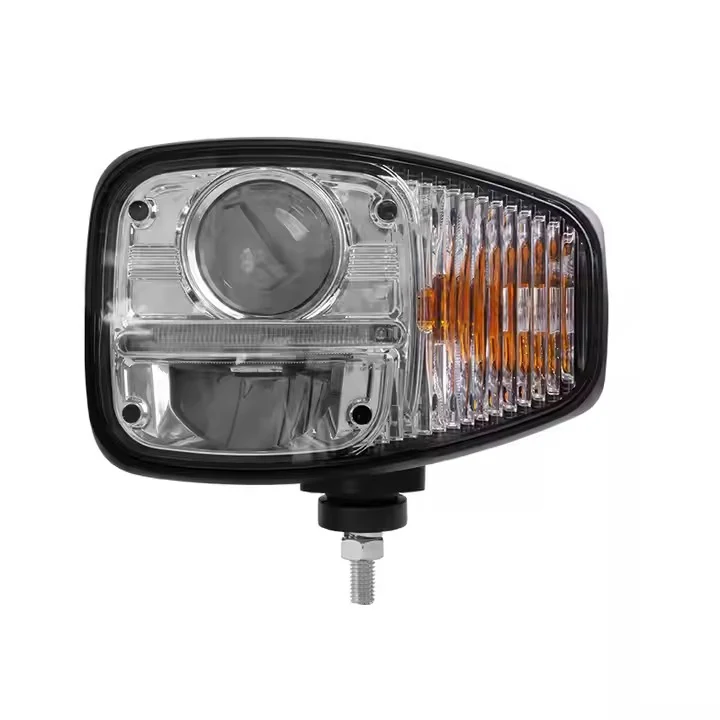

Photography of the 9 Inch Combination Headlight,High Low Beam supplied by the factory.
Application Scenarios
- Snow plough and gritter headlamp replacement
- Tractor headlamp upgrade for road transfer
- Municipal and utility vehicle front lighting
- Off-highway machine headlamp fitment
Who It Is For
- Snow plough and municipal fleet operators
- Tractor and agricultural machinery OEMs
- Truck and bus upfitters
- Distributors supplying headlamp replacements
Why Buyers Replace the Lamp That Is Already Fitted
A headlamp that ices over is worse than no headlamp, and a retrofit unit that does not hold the beam pattern will not pass inspection.
Water and dust entering the housing after a season in the field. This model is sealed to IP68.
Auxiliary lighting that disturbs cab electronics. This model is listed with ECE R10, ECE R112, ECE R87, ECE R6.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 82W.
Construction
- UV-stable polyester powder coated housing that resists chalking after long outdoor exposure
- Die-cast aluminium housing that carries LED junction heat away from the board
- Impact resistant polycarbonate lens instead of glass, so stone strike does not shatter it
- Over-voltage protection on the driver stage
- Over-temperature protection that throttles drive current before the LEDs degrade
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Model No | DT-9102 |
|---|---|
| Power | 82W |
| Raw Lumens | 2,400 LM |
| Effective Lumens | 1,920LM |
| Operating Voltage | 9 - 32V DC |
| Operating Temperature | 40 deg~+85 deg C |
| Colour Temperature | 6000k |
| Beam Pattern | high+low+DRL+turn Signal |
| Rated Lifespan | 50,000 hours lifespan |
| Ingress Protection | IP68 |
| Certificates | R10, R112, R6, R87, CE, ROHS, DOT |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
This model is recorded with ECE R10, ECE R112, ECE R87, ECE R6, DOT, CE, RoHS.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 82W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan |
|---|---|
| Unbranded LED lamp with no approval line | Carries ECE R10, ECE R112, ECE R87, ECE R6, DOT, CE, RoHS, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
Other Models in the Head Lights Range
9inch LED Heated Snow Plow Headlights IP68 Heated LED Anti-icing LED Combination Headlight
127W · 7200 lm · IP68
View specification →
130W 10400LM high/low beam Led Head light tractor light agricultural light
130W · 10,400 lm · IP68
View specification →
180W LED Agricultural Light High/Low Beam for replacement 86514346 86514347 86514348 86514349
180W · 9600 lm · IP68
View specification →Sectors That Use This Lamp
Agricultural Machinery
Tractor, harvester and sprayer lighting that survives a full season of vibration, dust and wash-down.
Read the application notes →Trucks and Trailers
Work, scene and signal lighting for tippers, box bodies, trailers and service vehicles.
Read the application notes →Construction Machinery
Work lighting for excavators, loaders, rollers and cranes running double shifts on site.
Read the application notes →Guides Worth Reading Before You Order
Questions About This Model
What supply voltage does the 9 Inch Combination Headlight,High Low Beam need?
Is the lumen figure raw or effective output?
Which approvals does this model carry?
Can this lamp be washed down?
Can this model be supplied under our own brand?
What is the lead time and the warranty period?
Request Pricing on the 9 Inch Combination Headlight,High Low Beam
Send the quantity and the mounting position and we come back with a price, the lead time and the certificate references held for this model.
