180W LED Agricultural Light High/Low Beam for replacement 86514346 86514347 86514348 86514349
The 180W LED Agricultural Light High/Low Beam for replacement 86514346 86514347 86514348 86514349 is a 180W LED lamp from the Dantech LED Agricultural Lights range, supplied with a high and low beam and rated IP68.
- 180W
- 9600 lm
- IP68
- 12-24V
- ECE R10
- CE
- RoHS
What This Lamp Is Built to Do
It runs on 12-24V, produces 9600 lm of effective output and is listed with ECE R10, CE, RoHS.
Tractor, sprayer and harvester lamps built for long seasonal shifts and constant vibration.
Key Benefits
- 9600 lm of effective output from a 180W draw, so the figure on the sheet is what reaches the work area rather than what the bare LED chips produce
- Sealed to IP68, which keeps field dust and wash-down water out of the driver compartment
- A 12-24V input window means the same part number covers more than one machine voltage in your fleet
- Listed with ECE R10, CE, RoHS, so the paperwork is ready when the shipment is inspected
- Available with a high and low beam, matched to the working distance rather than to a wattage figure

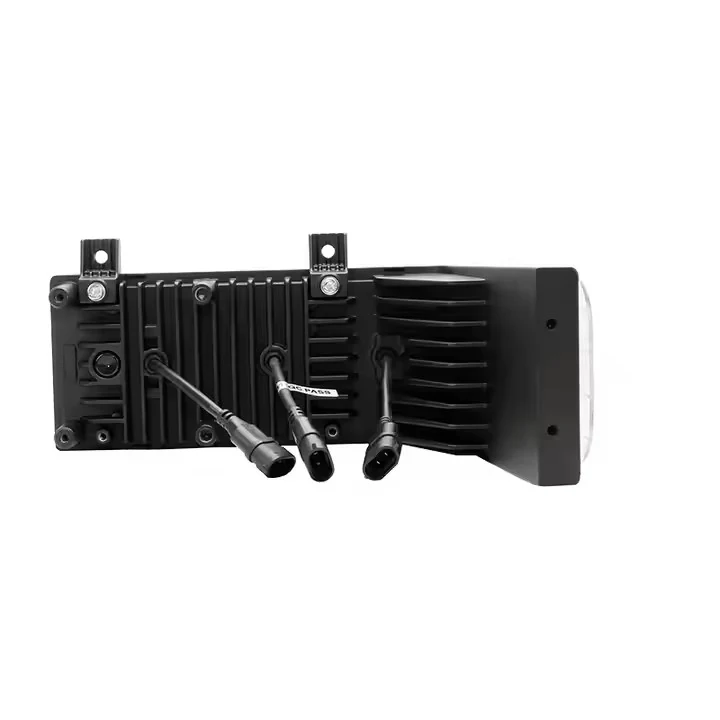

Photography of the 180W LED Agricultural Light High/Low Beam for replacement 86514346 86514347 86514348 86514349 supplied by the factory.
Application Scenarios
- Cab roof and fender lighting on tractors
- Header and auger lighting on combine harvesters
- Boom lighting on self-propelled sprayers
- Yard and loading lighting on telehandlers
Who It Is For
- Tractor and harvester OEMs
- Agricultural dealers supplying replacement lamps
- Contractors running machines through night shifts
- Cab and roof-bar builders
Why Buyers Replace the Lamp That Is Already Fitted
Harvest and spraying windows run into the night, and the original lamp positions on a tractor are exactly where vibration and dust are worst. A lamp that survives on a truck will not always survive there.
Water and dust entering the housing after a season in the field. This model is sealed to IP68.
Auxiliary lighting that disturbs cab electronics. This model is listed with ECE R10.
Halogen lamps in this position draw current the machine cannot spare. This lamp draws 180W.
Construction
- Die-cast aluminium housing that doubles as the heat sink
- Polycarbonate lens rather than glass, for stone strike resistance
Materials
Die-cast aluminium housing with a UV stable polyester powder coat, and a polycarbonate lens rather than glass. The housing is the heat sink, which is why the material matters as much as the LED specification.
Specifications
Taken from the specification sheet for this model. Where a value is not published for this model it is left out rather than estimated.
| Model No | DT-9180 |
|---|---|
| Power | 180W |
| Raw Lumens | high beam:120W 9600lm, low beam:60W, 4800lm |
| Operating Voltage | 12 V- 24V |
| Operating Temperature | 40 deg~+85 deg C |
| Colour Temperature | 6000k |
| Beam Pattern | high/low beam |
| Rated Lifespan | 50,000 hours lifespan |
| Ingress Protection | IP68 |
| Certificates | R10, CE,ROHS |
How the Lamp Is Made and What Is Checked
Die casting of
Die casting of the aluminium housing
SMT assembly and
SMT assembly and reflow of the LED board
Optic and lens
Optic and lens fitting with sealed bonding
Potting, sealing and
Potting, sealing and connector fitting
Electrical test, beam
Electrical test, beam check and packing
Quality Control
- Incoming inspection of LEDs, drivers and housings
- In-line electrical test after board assembly
- Sealing check before the lamp leaves the line
- Final beam and function check on every unit
- Quality system certified to ISO 9001:2015 and IATF 16949
Certification
This model is recorded with ECE R10, CE, RoHS.
At factory level the company states certification under the ISO 9001:2015 and IATF 16949 quality management systems, together with TUV certification.
Customisation Options
- Beam pattern selection where the model offers more than one option
- Cable length, connector type and harness termination
- Housing and lens marking for private label programmes
- Carton print and retail packaging artwork
- Mounting bracket variations on request
Use Guide
- Check the machine system voltage against the operating voltage line before wiring
- Fuse the lamp circuit at the supply and switch multiple lamps through a relay
- Mount so the housing can shed heat and is not packed hard against a panel
- Route the cable so it hangs below the gland rather than feeding water in
- Aim the beam at the working distance, then lock the bracket
How This Compares With the Alternatives
| Halogen lamp of similar output | Draws 180W where a halogen of comparable usable output draws considerably more, and is rated at 50,000 hours lifespan |
|---|---|
| Unbranded LED lamp with no approval line | Carries ECE R10, CE, RoHS, so it can be shipped and inspected without argument |
| Plastic bodied work lamp | Die-cast aluminium housing carries LED heat away instead of trapping it, which is what determines service life |
