Disc Cotton Buffs

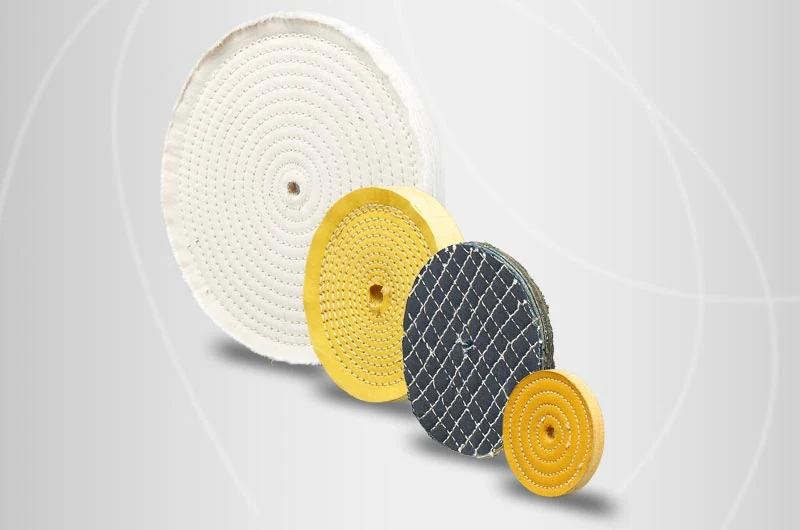

Disc Cotton Buffs are circular polishing wheels made from pure cotton or flannel, used in manual, automatic, or semi-automatic polishing machines. They are available in outer diameters from 100 mm to 700 mm and thicknesses from 5 mm to 25 mm. The cloth can be untreated or treated in pink, yellow,...
Product Overview
Disc Cotton Buffs are circular polishing wheels made from pure cotton or flannel, used in manual, automatic, or semi-automatic polishing machines. They are available in outer diameters from 100 mm to 700 mm and thicknesses from 5 mm to 25 mm. The cloth can be untreated or treated in pink, yellow, orange, or blue for different hardness levels. These buffs are produced using the SG01M spiral stitch sewing machine, the CRA-700 edge trimming machine, and the Jewelry Buffs Edge Fuzzing Napping Machine for finishing.
Key Benefits
- One operator can produce consistent disc buffs using automated sewing and trimming machines
- Supports a wide range of diameters from 100 mm to 700 mm and thicknesses from 5 mm to 25 mm
- Cloth hardness can be adjusted via treatment color to match polishing requirements
- Sewing and trimming machines reduce labor and material waste compared to hand assembly
- Integrated edge fuzzing and napping improve surface finish and polishing performance
Application Scenarios
- A polishing shop replacing hand-sewn disc buffs with machine-produced versions
- A manufacturer adding disc cotton buffs to a product line for metal, wood, or jewellery polishing
- A workshop upgrading from manual sewing to semi-automated production for higher output
- A distributor producing branded disc buffs in-house to reduce reliance on external suppliers
Who It Is For
- Polishing and buffing wheel manufacturers
- Metal finishing and jewellery polishing workshops
- Woodworking and furniture polishing lines
- Distributors of polishing consumables seeking in-house production
Problems It Solves
- Manual sewing of disc cotton buffs leads to inconsistent stitch tension and uneven wear
- Hand trimming results in irregular edges and inconsistent thickness across batches
- Lack of edge fuzzing or napping reduces polishing efficiency and surface quality
- Producing disc buffs in-house avoids long lead times and high freight costs from overseas suppliers
- Inconsistent cloth treatment levels cause variation in polishing performance between batches
Technical Features
- SG01M Spiral Stitch Sewing Machine with low cost design for continuous disc buff production
- CRA-700 Buffs Trim/Edge Cutting Machine ensures clean, uniform edge profiles
- Jewelry Buffs Edge Fuzzing Napping Machine adds surface texture for better polishing contact
- Sewing machine supports spiral stitching for even ply distribution and durability
- Edge trimming machine uses adjustable blades to match diameter and thickness
- Fuzzing napping machine applies controlled brushing to create a soft, non-abrasive surface
Specifications
| Model | Disc Cotton Buffs |
|---|---|
| Outer Diameter Range | 100 mm to 700 mm |
| Thickness Range | 5 mm to 25 mm |
| Cloth Treatment Options | No treatment, pink, yellow, orange, blue |
| Sewing Machine Model | SG01M Spiral Stitch Sewing Machine |
| Trimming Machine Model | CRA-700 Buffs Trim/Edge Cutting Machine |
| Fuzzing Machine Model | Jewelry Buffs Edge Fuzzing Napping Machine |
| Production Type | Manual, automatic, semi-automatic polishing machines |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Pure cotton fabric
- Flannel fabric
- Treated cotton in pink, yellow, orange, blue for different hardness levels
Manufacturing And Process
Step 1
Cut pure cotton or flannel fabric into circular layers based on the target diameter and thickness
Step 2
Load the fabric layers into the SG01M Spiral Stitch Sewing Machine for continuous spiral stitching
Step 3
Remove the sewn disc from the machine and transfer to the CRA-700 Edge Trimming Machine
Step 4
Trim the outer edge to a consistent diameter and smooth profile
Step 5
Pass the trimmed disc through the Jewelry Buffs Edge Fuzzing Napping Machine for surface texture
Step 6
Inspect the finished disc cotton buff for uniformity and readiness for use
Quality Control
- Spiral stitching tension checked during production to ensure even ply distribution
- Edge trimming blades calibrated to maintain consistent thickness across all sizes
- Fuzzing napping machine speed and pressure adjusted per fabric type and hardness
- Sample buffs tested for stitch strength and surface texture before full production
- Final inspection for edge smoothness, ply alignment, and treatment consistency
Customization Options
- Cloth treatment color selected based on the intended polishing application
- Sewing machine speed and stitch pattern adjusted for fabric thickness and type
- Trimming blade set configured for specific diameter bands
- Fuzzing napping machine settings tailored to the desired surface finish
- Machine line can be quoted with or without the fuzzing napping step
Compared With The Alternatives
| Hand Sewn Disc Cotton Buffs | Hand sewing is slower, inconsistent in stitch tension, and harder to scale; machine production ensures repeatable quality and higher output |
|---|---|
| Standard Flat Pile Buffs | Disc cotton buffs have a spiral structure for better durability and heat dissipation; flat pile buffs are simpler but less suited for high-pressure polishing |
| Corrugated or Airway Buffs | Disc cotton buffs are solid and smooth, not ventilated; they are used for fine polishing, not high-speed or high-heat applications |
Use Guide
- Ensure fabric is cut to the correct circular shape before sewing; misaligned cuts cause uneven stitching
- Select the correct treatment color based on the required hardness for the polishing task
- Adjust sewing machine speed when switching between thin flannel and thick cotton
- Check trimming blades regularly to avoid burrs or uneven edges on finished buffs
- Use the fuzzing napping machine after trimming to improve polishing contact and reduce dust
Disc Cotton Buffs FAQ
What is the range of diameters and thicknesses available?
Outer diameters from 100 mm to 700 mm, thicknesses from 5 mm to 25 mm.
What types of fabric can be used?
Pure cotton and flannel, with or without treatment in pink, yellow, orange, or blue.
What machines are needed to produce these buffs?
SG01M Spiral Stitch Sewing Machine, CRA-700 Edge Trimming Machine, and Jewelry Buffs Edge Fuzzing Napping Machine.
Can the machine handle different cloth hardness levels?
Yes, the treatment color determines hardness; pink is softer, blue is harder, and untreated is medium.
What is the lead time for the machines?
5 to 15 workdays if in stock, otherwise 15 to 60 workdays depending on model and quantity.
What are the payment terms?
Orders up to 10000 USD are 100% in advance; above 10000 USD is 30% T/T deposit with the balance before shipment.
Can I test my own fabric before buying the machines?
Yes, free sample testing is available. You cover freight and provide the fabric you plan to use.
Get A Price On The Disc Cotton Buffs
Send the quantity, the diameters and the material you run. We answer with price, lead time and packing within 24 hours.
