Sisal Rope Buffs

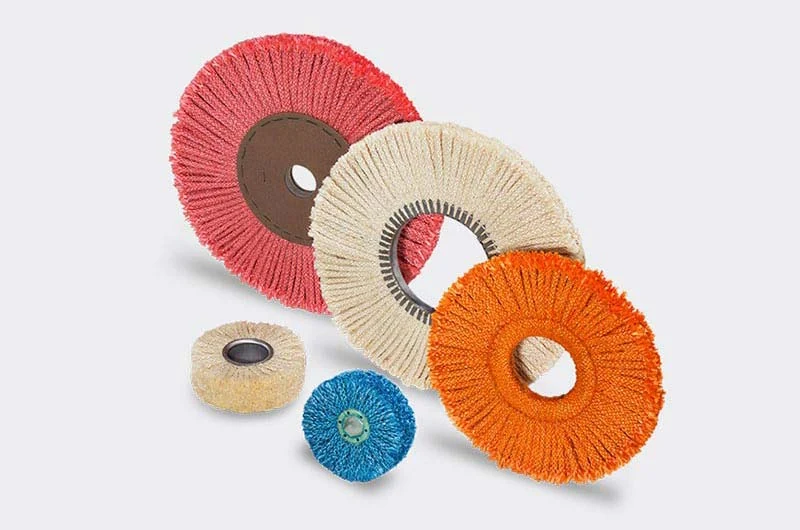

Sisal Rope Buffs are used for irregular surface first sanding and grinding, particularly in polishing stainless steel cookware, tanks, and tableware such as forks, spoons, and knives. The buffing wheel has an outer diameter range of 70 mm to 500 mm and an inner diameter of iron teeth from 55 mm to...
Product Overview
Sisal Rope Buffs are used for irregular surface first sanding and grinding, particularly in polishing stainless steel cookware, tanks, and tableware such as forks, spoons, and knives. The buffing wheel has an outer diameter range of 70 mm to 500 mm and an inner diameter of iron teeth from 55 mm to 230 mm. Available in small hexagon sizes of 19 / 6, 24 / 6, and 32 / 6, with options for various hardness treatments or no treatment. A dedicated Sisal Rope Buffs Forming Machine is required to produce these wheels efficiently.
Key Benefits
- Automates the forming of sisal rope buffs, replacing manual assembly steps
- Supports outer diameters from 70 mm to 500 mm and inner diameters from 55 mm to 230 mm
- Handles small hexagon iron teeth sizes of 19 / 6, 24 / 6, and 32 / 6
- Offers flexibility with various hardness treatments or no treatment on the sisal rope
- One operator can run the forming machine, reducing labor dependency
- Enables consistent rope wrapping and tension control across production batches
Application Scenarios
- A cookware manufacturer needing to polish irregular surfaces on stainless steel cutlery and dinnerware
- A metal finishing shop producing custom sisal rope buffs for tank or vessel polishing
- A polishing line upgrading from hand-wound sisal ropes to machine-formed wheels
- A distributor adding sisal rope buffs to their product range with in-house production
Who It Is For
- Stainless steel cookware and tableware manufacturers
- Metal finishing shops handling irregular surface polishing
- Polishing workshops producing buffs for kitchenware or sanitary ware
- Distributors of abrasive products seeking to manufacture their own sisal rope buffs
Problems It Solves
- Manual sisal rope winding leads to inconsistent tension and uneven wear during polishing
- Hand assembly limits output and increases labor cost per unit
- Inconsistent rope spacing affects polishing performance and finish quality
- Lack of standardization in hand-wound buffs makes batch-to-batch quality unreliable
- No machine-based forming option forces reliance on external suppliers with long lead times
Technical Features
- Hydraulic system for consistent pressure during rope wrapping
- Adjustable tension control for different sisal rope hardness and diameter
- Indexing mechanism to position the iron tooth center accurately
- Clamping system to secure the iron tooth and maintain alignment during forming
- Control panel with adjustable speed settings for different rope types and production rates
- Built-in cutter to trim excess rope after forming
Specifications
| Model | Sisal Rope Buffs Forming Machine |
|---|---|
| Outer Diameter Range | 70 mm to 500 mm |
| Inner Diameter of Iron Teeth | 55 mm to 230 mm |
| Small Hexagon Sizes | 19 / 6, 24 / 6, 32 / 6 |
| Hardness Treatment | Various hardness levels or no treatment |
| Power | 6 kW |
Values taken from the manufacturer data for this model. Anything not listed is confirmed on request before order.
Materials
- Sisal rope in various diameters and hardness levels
- Iron teeth with small hexagon shapes: 19 / 6, 24 / 6, 32 / 6
- Iron teeth with round or hexagon hole centers
Manufacturing And Process
Step 1
Prepare the sisal rope and select the appropriate iron tooth center
Step 2
Load the iron tooth onto the machine’s centering fixture
Step 3
Set the outer diameter and tension parameters on the control panel
Step 4
The machine wraps the sisal rope around the iron tooth with consistent tension
Step 5
The rope is cut to length after completing the wrap
Step 6
The formed wheel is unloaded and sent to the next step, such as pressing or finishing
Quality Control
- Tension control maintained during wrapping to ensure even rope distribution
- Sample wheels tested before shipment to verify consistency
- Free sample testing available using the buyer’s own sisal rope and iron teeth
- Installation and operation training provided to ensure correct setup and first run
Customization Options
- Voltage and phase configured for the destination market
- Clamp and tension settings adjusted for specific sisal rope types
- Tooling supplied for the iron tooth sizes the buyer uses
- Machine can be quoted as part of a full production line including pressing and trimming
Compared With The Alternatives
| Manual Sisal Rope Wrapping | Hand wrapping is slower, inconsistent in tension, and requires multiple workers per shift |
|---|---|
| CRA-800 Bias Airway Buffs Forming Machine | The CRA-800 forms ventilated airway wheels with folded fabric; not suitable for sisal rope construction |
| CRA-300 Iris Machine | The CRA-300 forms small iris wheels for jewellery; not designed for rope-based buff construction |
Use Guide
- Ensure the sisal rope is free of knots and consistent in diameter before loading
- Select the correct iron tooth size and clamp set based on the target wheel dimensions
- Adjust the tension setting according to the hardness of the sisal rope used
- Run a test batch and inspect the rope spacing and wrapping tightness before full production
- Contact us on WhatsApp for the English operation video if the operator is new to this machine
Sisal Rope Buffs FAQ
What is the outer diameter range for sisal rope buffs?
70 mm to 500 mm (12 inches to 24 inches).
What inner diameter sizes of iron teeth are supported?
55 mm to 230 mm (3 inches to 9 inches).
What small hexagon sizes are available?
19 / 6, 24 / 6, and 32 / 6.
Can the machine handle different hardness levels of sisal rope?
Yes, it supports various hardness treatments or no treatment.
How many operators are needed?
One operator can run the machine continuously.
What is the lead time for delivery?
5 to 15 workdays if in stock, otherwise 15 to 60 workdays depending on quantity and model.
Can you test my own sisal rope before purchase?
Yes, free sample testing is available. You cover freight and provide the material.
Get A Price On The Sisal Rope Buffs
Send the quantity, the diameters and the material you run. We answer with price, lead time and packing within 24 hours.
