Concrete Mixer Trucks

Wholesale 10m3 Concrete Mixer Truck for Sale - Engine WD615.69/WD615.87

The HF9 front axle carries 9000kg, the HC16 rear axle handles 16000kg, and the unit has a 25000kg gross weight with a 3750mm wheelbase. It is a new unit with a 12-month warranty, designed for construction sites in Africa, the Middle East and Southeast Asia where reliable spare parts and fast delivery are critical.

Condition New
Warranty 12Months
Cab L2000
Color White
Transmission HW15710

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10249

White 6x4 concrete mixer truck with 10m3 drum parked on a yard, front three-quarter view

Key Benefits

What This Unit Does Well

WD615.69 and WD615.87 engines are the most common in Chinese concrete mixers, so filters, injectors and oil are widely available in regional markets
HW15710 transmission is a proven 10-speed unit with strong gear ratios for both loaded and empty runs on rough terrain
HC16 double-reduction rear axle provides high torque for heavy drum loads and consistent performance on steep grades
10m3 drum capacity matches standard batching plant output and reduces the number of trips needed per project
3750mm wheelbase improves stability when the drum is rotating and loaded, reducing tipping risk on uneven ground
12.00R20 radial tyres are standard in heavy-duty construction fleets and offer better wear and puncture resistance than bias-ply

Application Scenarios

Where It Is Used

Transporting ready-mix concrete from a central batching plant to a road construction site with unpaved access roads
Delivering concrete to remote infrastructure projects where fuel and spare parts are not stocked locally
Working on large-scale housing or industrial site builds with multiple delivery points and tight schedules
Operating in hot climates where air-conditioned cabs are needed for driver comfort during long shifts

Fit

Who It Is For

Construction contractors running multiple projects with tight delivery windows and no local maintenance support
Fleet managers replacing older mixers with a model that shares engine and transmission parts with other trucks in their fleet
Machinery dealers stocking mixers for resale in African and Middle Eastern markets where parts availability is a key concern
Government or engineering procurement teams sourcing reliable, low-maintenance mixers for public infrastructure projects

Buyer Pain

Problems It Solves

Mixers that break down due to incompatible or hard-to-source injectors and filters from European or Japanese suppliers
Long lead times for spare parts when a mixer fails in a remote location with no local service network
Underpowered units that struggle to rotate the drum under full load on steep inclines or in high temperatures
Uncertainty over axle load ratings and chassis codes when applying for import permits or vehicle registration

Engineering

Technical Features

WD615.69 or WD615.87 water-cooled six-cylinder inline diesel engine with turbocharging
Direct injection fuel system with rated output of 290HP or 336HP at 2200 rpm
HW15710 manual transmission with ten forward gears and two reverse gears
ZF8098 steering box with 20.5° approach and 22° departure angle for off-road capability
HF9 front axle with 9000kg maximum load capacity, HC16 rear axle with double reduction gearing
10m3 drum with rotating mechanism driven by hydraulic system, mounted on a 3750mm wheelbase chassis
Single sleeper cab (L2000) with factory air conditioning, white paint finish
12.00R20 radial tyres on steel rims, 25000kg gross vehicle weight rating

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Wholesale 10m3 Concrete Mixer Truck for Sale - Engine WD615.69/WD615.87
Condition	New
Warranty	12Months
Cab	L2000
Color	White
Transmission	HW15710
Dimension(LWH)	893524903875
Weight	25000kg
Certification	ISO9001,ISO/TS16949,CCC,
Tire	12.00R20Radialtyre
Power(W)	290HP/336HP
Engine	WD615.69/WD615.87
Drive Wheel	6x4
Dimensions L x W x H unloaded	8935 x 2490 x 3875 mm
Wheelbase	3750 mm
Curb Weight	12890 kg
Gross Vehicle Weight	25000 kg
Engine Model	WD615.69 / WD615.87
Horsepower	290 HP / 336 HP
Rated Power	213/2200 KW/rpm
Steering System	ZF8098
Front Axle	HF9, Max loading 9000 kg
Rear Axle	HC16, Double reduction, speed ratio 5.73 / 4.8
Tyre	12.00R20 Radial
Drum Volume	10 m3
Max Speed	75 km/h
Approach Angle	20.5° (30°/33°)

Materials

Materials and Build

Welded steel ladder frame chassis in the ZZ1251 series
Steel cab shell with factory paint finish, white by default
Cast steel HF9 front and HC16 rear axle housings
12.00R20 radial tyres on steel rims
Stainless steel drum with rotating drive system and hydraulic motor

Process

How an Order Is Handled

You send the project location, site access conditions and delivery schedule
You confirm the final specification sheet, including cab, colour and tyre count before deposit
Unit is prepared, photographed and video recorded before loading
We book RoRo or container shipment and issue the export documents your customs needs

Quality Control

Checks Before Loading

Chassis, engine and transmission numbers are photographed and matched to the specification sheet you approved
Engine start, gear engagement and drum rotation are recorded on video before loading
Paint, glass and cab trim are checked for transport damage at the loading port
Loading and lashing photos are sent before the vessel departs

Customisation

What Can Be Changed

Cab colour other than the default white
Sleeper layout, single or double bunk
Left hand or right hand drive as your registration requires
Tyre brand and spare wheel count
Additional tool box or fifth wheel height change

Honest Comparison

How It Compares With the Alternatives

5m3 mixer truck	The 10m3 drum reduces the number of trips per project but requires more space for turning and parking on site
4x2 mixer truck	The 6x4 drive provides better traction and axle load capacity on soft or uneven ground, but uses more fuel when running empty

Use Guide

Using It Well

Order the drum bearing set and hydraulic pump seal kit with the truck to avoid delays in the first service

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

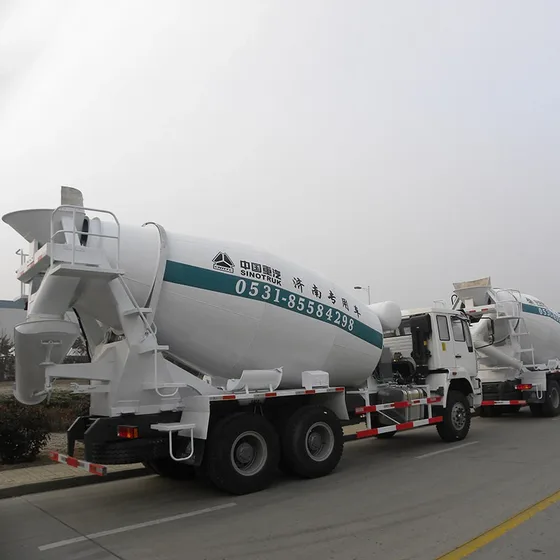

Rear view of the mixer truck with drum rotation mechanism and mud flaps

Cab interior with single sleeper bunk and air conditioning controls

Wholesale 10m3 Concrete Mixer Truck for Sale - photo 4

Source Specification

Manufacturer Text We Hold for This Listing

Wholesale 10m3 concrete mixer truck for sale Now we have 10 units 6x4 mixer truck and dump truck ready for shipment, which were produced in 2014, price is very good. Wholesale 10m3 concrete mixer truck for sale Product Description Product specification: Vehicle model ZZ1251M32 41W ZZ1251N32 41A ZZ1251M36 41W ZZ1251N36 41W ZZ1251M38 41W ZZ1251N38 41W Cab L2000 Medium length cab, single bed with air condition Engine model WD615.87 WD615.69 WD615.87 WD615.69 WD615.87 WD615.69 Max. output 290HP 336HP 290HP 336HP 290HP 336HP Rated engine power 213/2200 247/2200 213/2200 247/2200 213/2200 247/2200 (KW/r/min) Transmission HW15710 Steering ZF8098 Steering box Front Axle HF9,Max.loading:9000kg Rear Axle HC16 Double reduction(central reduction+wheel reduction), speed ratio:5.73, 4.8 Gross weight(kg) 25000 25000 25000 25000 25000 25000 Kerb weight(kg) 11580/8100 11580/8100 12780/8310 12780/8310 128

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
