Concrete Mixer Trucks

Good Quality Heavy Duty ZZ1257M3241 Concrete Mixer Truck

A 6x4 concrete mixer truck model ZZ1257M3241 with a WD615.87 or WD615.69 six-cylinder diesel engine rated at 290HP or 336HP, paired with the HW15710 ten-speed manual transmission. It features a HOWO70 cab without a bed and factory air conditioning, with a 3200mm wheelbase and overall dimensions of 7747 x 2496 x 3048 mm. This configuration is used in construction fleets across Africa, Southeast Asia and the Middle East where reliable parts and consistent performance are required for daily batching and site delivery.

Condition New
Warranty 12Months
Cab HOWO70(NObed)withAirco
Color White,green
Transmission HW15710(10forward,2rev

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10233

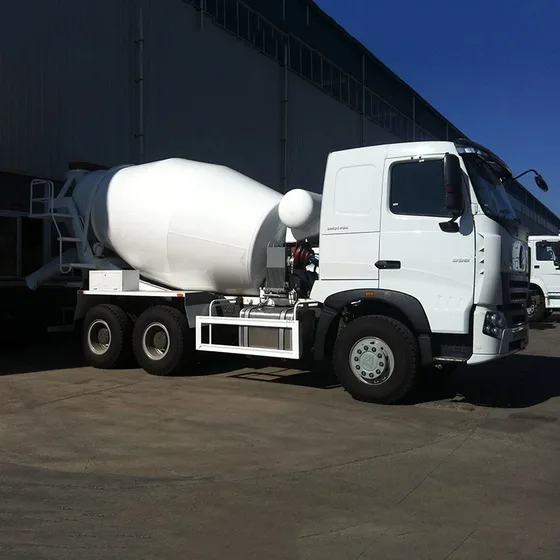

White ZZ1257M3241 concrete mixer truck parked on a yard, front three-quarter view

Key Benefits

What This Unit Does Well

WD615.87 and WD615.69 engines are widely available in spare parts networks across Africa and the Middle East, reducing downtime
HW15710 ten-speed gearbox offers usable ratios for both loaded hauls and empty return trips on uneven terrain
7 or 8 cubic metre drum volume matches standard batching plant output for mid-sized construction projects
12.00R20 radial tyres are standard on most Chinese heavy-duty trucks, so replacements are easy to source
3200mm wheelbase improves manoeuvrability in tight construction yards and access roads
Air-conditioned HOWO70 cab supports driver comfort during long shifts in hot climates

Application Scenarios

Where It Is Used

Daily concrete delivery from a batching plant to a road construction site with unpaved access roads
Urban infrastructure work where the truck must navigate narrow streets and tight turning radii
Remote site transport where fuel and spare parts are not available locally and maintenance must be planned
Contractor fleets that need to standardize on one engine and transmission family across multiple vehicle types

Fit

Who It Is For

Construction contractors managing multiple site deliveries with limited maintenance staff
Fleet owners replacing older mixers and seeking a model with proven engine and transmission availability
Machinery dealers stocking concrete mixers for resale in African and Southeast Asian markets
Government procurement teams requiring vehicles that meet ISO9001 and CCC certification standards

Buyer Pain

Problems It Solves

Mixed fleets where every mixer uses a different engine model and requires unique injector and filter parts
Downtime caused by long lead times for spare parts from European or OEM suppliers
Trucks that cannot maintain speed on loaded gradients due to underpowered engines or mismatched gear ratios
Uncertainty over exact drum volume and discharge slope when quoting for project bids

Engineering

Technical Features

WD615.87 or WD615.69 water-cooled six-cylinder in-line diesel engine with turbocharging
Direct injection fuel system with rated output of 290HP or 336HP at 2200 rpm
HW15710 manual transmission with ten forward gears and two reverse gears
PMB 6SP reducer with Italy ARK PV089 hydraulic pump and Italy ARK MF090 motor
ZF8098 steering system with front axle HF9 and rear axle HC16 in 6x4 drive layout
11.42 or 13.5 cubic metre geometric drum volume with 7 or 8 cubic metre agitating capacity
15 or 14 degree drum discharge slope for efficient material release
HOWO70 cab without a bed, factory air conditioning, and 3200mm wheelbase

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Good Quality Heavy Duty ZZ1257M3241 Concrete Mixer Truck
Condition	New
Warranty	12Months
Cab	HOWO70(NObed)withAircondition
Color	White,green
Transmission	HW15710(10forward,2reverse)
Dimension(LWH)	774724963048
Weight	25000kg
Certification	ISO9001,ISO/TS16949,CCC,
Tire	12.00R20(Radial)
Power(W)	290HP/336HP
Engine	WD615.87/WD615.69
Model	ZZ1257M3241
Drive Type	6x4
Dimensions L x W x H	7747 x 2496 x 3048 mm
Wheelbase	3200 mm
Gross Vehicle Weight	25000 kg
Kerb Weight	10250 kg / 10150 kg
Engine Model	WD615.87 / WD615.69
Horsepower	290 HP / 336 HP
Rated Power	213 kW / 247 kW at 2200 rpm
Front Axle	HF9
Rear Axle	HC16
Axle Load Capacity	Front: 9000 kg, Rear: 16000 kg
Drum Volume	7 m3 / 8 m3
Geometric Volume	11.42 m3 / 13.5 m3
Discharge Slope	15° / 14°

Materials

Materials and Build

Welded steel ladder frame chassis in the ZZ1257 series
Steel cab shell with factory paint finish, white or green by default
Cast steel HF9 front and HC16 rear axle housings
12.00R20 radial tyres on steel rims
Stainless steel drum with internal agitator blades and hydraulic drive system

Process

How an Order Is Handled

You send the project location, typical haul distance, and drum volume requirement
We confirm availability of the ZZ1257M3241 model with your preferred engine and drum size
You confirm the final specification sheet including cab colour, tyre count, and delivery date
Unit is prepared, photographed, and video recorded before loading
We book RoRo or container shipment and issue the export documents your customs needs

Quality Control

Checks Before Loading

Chassis, engine, and transmission numbers are photographed and matched to the specification sheet you approved
Engine start, gear engagement, and drum rotation are recorded on video before loading
Paint, glass, and cab trim are checked for transport damage at the loading port
Loading and lashing photos are sent before the vessel departs

Customisation

What Can Be Changed

Cab colour other than the default white or green
Tyre brand and spare wheel count
Additional tool box or fifth wheel height adjustment
Drum volume selection between 7m3 and 8m3
Left hand or right hand drive as your registration requires

Honest Comparison

How It Compares With the Alternatives

4x2 concrete mixer	The 6x4 carries more on the rear axle for loaded gradients but uses more fuel when running empty

Use Guide

Using It Well

Keep the hydraulic pump and motor seals lubricated to prevent leaks during long hauls
Order the drum seal kit and hydraulic hoses with the truck so the first service does not wait on shipping

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

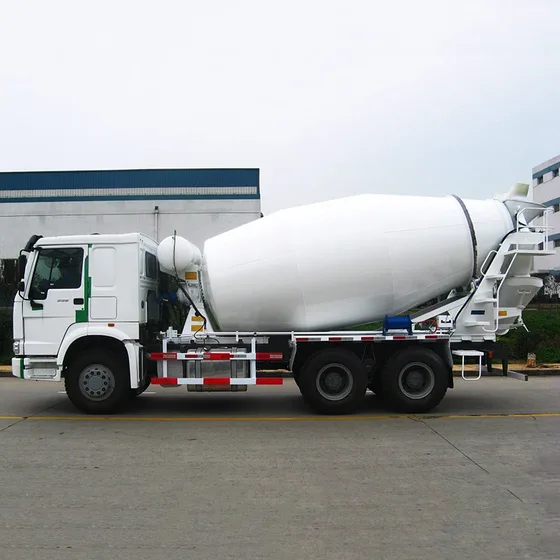

Side view of the concrete mixer truck showing the 3200mm wheelbase and 12.00R20 tyres

Rear view of the mixer truck with drum discharge slope and mud flaps

Cab interior of the HOWO70 model with air conditioning controls and no bed

WD615.87 six-cylinder diesel engine in the chassis

Drum agitator and hydraulic drive system detail of the concrete mixer

Source Specification

Manufacturer Text We Hold for This Listing

Good quality heavy duty ZZ1257M3241 concrete mixer truck Now we have 10 units 6x4 tractor truck and dump truck ready for shipment, which were produced in 2015, price is very good. Good quality heavy duty ZZ1257M3241 concrete mixer truck Product Description Product specification: Model Driving type Engine output Drum volume M 3 ZZ1257M3241 6X4 290hp 7 /8 MAIN SPECIFICATIONS Model ZZ1257M3241 Steering ZF8098 Engine chinese Brand Gross Vehicle Weight 25000kg WD615.87 /WD615.69 Kerb Weight 10250kg /10150kg Maximum Output 290HP /336HP Tyres 12.00R20(Radial) Rated engine power (KW/r/min) 213/2200 / 247/2200 Reducer PMB 6SP Pump Italy ARK PV089 Transmission HW15710(10forward,2reverse) Motor Italy ARK MF090 Front Axle HF9 Geometric volume M3 11.42 / 13.5 Max.loading:9000kg Agitating capacity 7 /8 Rear Axle HC16 Ratio:5.73 Discharging remain ration <0.2 Max.loading:16000kg Cab HOWO70 (NO bed) Max

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
