Truck Cranes

Small New Mobile Type Truck Crane

A 25-ton mobile truck crane model QY25K-II built on a Dongfeng chassis, with a 39.5m main boom and 8.3m fly jib, capable of lifting 25 tonnes at 7.6m radius. The unit features an octagonal lifting arm, self-developed load-sensitive hydraulic system, digital torque limiter, and dual-mode engine for fuel efficiency. It is designed for construction sites with limited access where mobility and lifting capacity are both critical.

Condition New
Warranty 12months,12Months
Weight 31750kg
Feature TruckCrane
Span 7.6m

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 11531-2

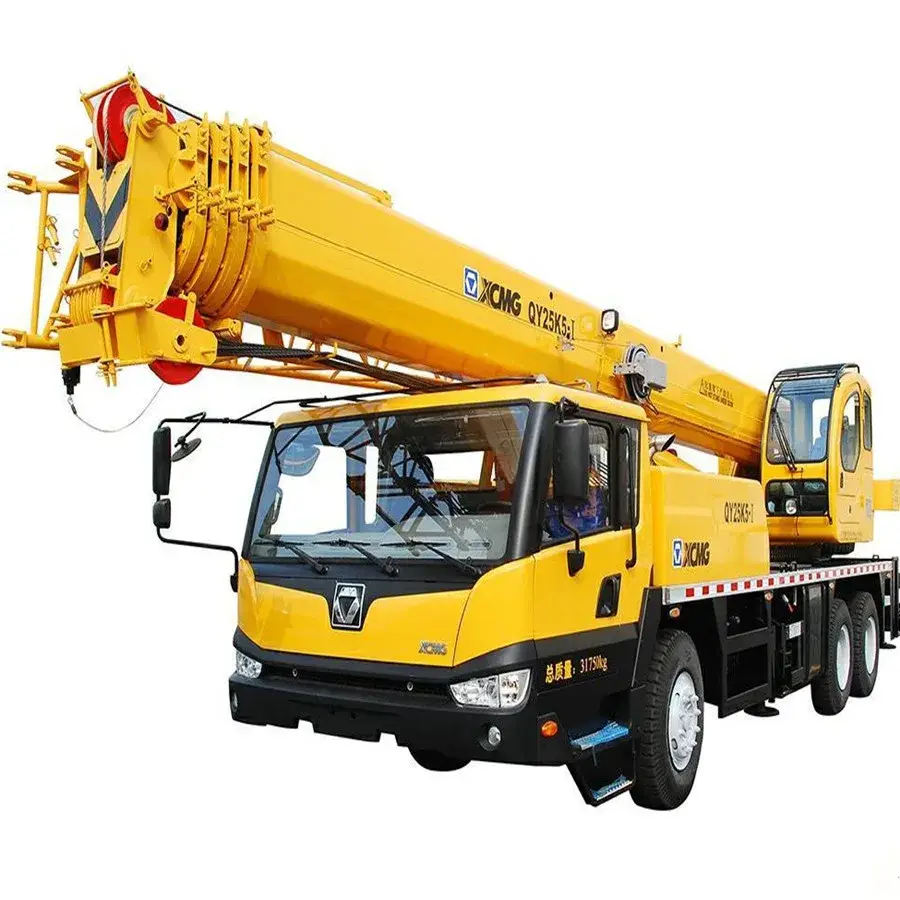

Front three-quarter view of a 25-ton mobile truck crane QY25K-II on a yard, showing the octagonal lifting arm and cab

Key Benefits

What This Unit Does Well

Octagonal lifting arm provides higher structural strength and reduced deformation under heavy load
Self-developed load-sensitive hydraulic system ensures smooth operation and energy savings
Digital torque limiter with bus technology reduces interference and improves reliability
Dual-mode engine allows lower fuel consumption during idle or light-duty work
Single-cylinder bolt expansion technology enhances stability and safety during boom extension
39.5m main boom and 8.3m fly jib extend reach to 47.8m for high-level lifting tasks
31750kg curb weight balances mobility and stability on uneven terrain
ISO9001:2008 certification confirms documented quality control in manufacturing

Application Scenarios

Where It Is Used

Lifting steel beams and precast panels at mid-rise construction sites with narrow access roads
Installing rooftop HVAC units on commercial buildings where crane access is restricted
Supporting bridge component assembly in remote areas without dedicated crane transport
Moving heavy machinery between temporary work zones on large infrastructure projects

Fit

Who It Is For

Construction contractors managing multiple site locations with tight access
Engineering teams requiring a crane that can operate on unpaved or soft ground
Machinery dealers stocking mobile cranes for resale in Southeast Asia and Africa
Government procurement teams sourcing equipment for road and bridge projects

Buyer Pain

Problems It Solves

High fuel costs from inefficient engines during idle or partial-load operations
Boom collapse or instability during extension due to weak expansion mechanisms
Lack of spare parts or technical support for foreign-made cranes in remote markets
Inconsistent performance from cranes with analog torque limiters prone to failure

Engineering

Technical Features

Octagonal lifting arm with inserted arm head and embedded sliding block for smooth extension
Self-developed load-sensitive hydraulic system with digital control and energy-saving function
Single-cylinder bolt expansion technology for improved active safety during extension
Digital torque limiter using bus technology with low failure rate and strong interference resistance
Main structural parts manufactured with automatic welding for zero-defect welds
Dual-mode engine operation to reduce fuel use during low-load phases
39.5m main boom and 8.3m fly jib extend total reach to 47.8m
Maximum lifting height of 46.6m at full extension with 25-ton capacity at 7.6m radius
Chassis based on Dongfeng platform with 31750kg curb weight and 12300mm overall length

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of Small New Mobile Type Truck Crane
Condition	New
Warranty	12months,12Months
Weight	31750kg
Feature	TruckCrane
Span	7.6m
Certification	ISO9001:2008,ISO9001:2008
Model	25tonmobiletruckcraneQY25K-II
Application	Construction
Rated Loading Capacity	25 Ton
Max. Lifting Load	25 Ton
Rated Lifting Moment	961 KN.m
Max. Lifting Height	46.6 m
Main Arm Length	39.5 m
Fly Jib Length	8.3 m
Fully Extended Boom + Fly Jib	47.8 m
Base Boom Length	10.4 m
Curb Weight	31750 kg
Overall Length	12300 mm
Overall Width	2500 mm
Overall Height	3350 mm
Engine Model	SC9DF290Q4; SC8DK280Q4; D10.29A-40
Net Power	213 kW / 2200 rpm
Net Torque	1200 N.m / 1400 rpm
Place of Origin	Jiangsu, China (Mainland)
Crane Condition	New
T Rated Lifting Moment	961KN.m Max.

Materials

Materials and Build

Steel frame and lifting arm with high-strength alloy steel construction
Automatic welded joints on main structural components with zero defect verification
Hydraulic cylinders and hoses rated for high-pressure operation in continuous lifting
Rubber bushings and seals in boom joints for vibration damping and wear resistance
Dongfeng chassis with steel ladder frame and load-bearing suspension system

Process

How an Order Is Handled

You send the site access details, lifting height requirement, and typical load weight
We match the QY25K-II configuration to your site constraints and confirm availability
You review the final spec sheet, including engine model, boom length, and warranty terms
Unit is prepared, tested, and photographed with video of boom extension and engine start
We book RoRo or container shipment based on your port and delivery timeline

Quality Control

Checks Before Loading

Chassis, engine, and boom serial numbers are cross-checked against the specification sheet
Full boom extension and retraction cycle is recorded on video with load test data
Hydraulic system pressure and torque limiter function are verified before loading
Paint, glass, and cab integrity are inspected at the loading yard for transport damage

Customisation

What Can Be Changed

Engine model selection from SC9DF290Q4, SC8DK280Q4, or D10.29A-40
Boom length adjustment within standard QY25K-II range (39.5m main arm, 8.3m fly jib)
Cab colour or interior trim change from standard configuration
Additional tool box or storage compartment on the chassis side
Mounting brackets for site-specific accessories like lights or cameras

Honest Comparison

How It Compares With the Alternatives

Fixed crane on a trailer	The truck crane moves between sites without disassembly but has lower maximum height and reach
Crane with analog torque limiter	Digital bus-based limiter reduces false alarms and improves safety during high-load lifts

Use Guide

Using It Well

Inspect boom joints and pin connections monthly for wear or misalignment
Use only the recommended engine oil and hydraulic fluid grades to avoid system damage
Store the crane with boom fully retracted and secured to prevent wind load damage

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

Source Specification

Manufacturer Text We Hold for This Listing

Small New Mobile Type Truck Crane Product Description Product Application QY25K5 truck crane is the technical crystallization of our company's design and manufacture of automobile crane for many years 1. Overall lead in lifting performance and driving performance. 2. Octagonal lifting arm, with super heavy lifting capacity. 3. Inserted arm head, extended embedded sliding block, small lifting deformation and smooth expansion. 4. Self-developed load sensitive system with smooth operation and efficient energy saving. 5. A new hydraulic motor for the starting point of large torque, which guarantees that the rise will not decline twice. 6. Proprietary single cylinder bolt expansion technology to improve the active safety of the expansion system. 7. The torque limiter using digital bus technology has strong anti-interference ability and low failure rate. 8. The main structural parts adopt auto

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
