Cargo Trucks
China Road Street Cleaning Sweeper Truck
A 4x2 Sinotruk HOWO street cleaning sweeper truck with a CHAOCHAI CY4102BZQ 120HP four-cylinder diesel engine, WLY6T100 six-speed manual gearbox, and a 3360mm wheelbase. It features a 1880mm extended cab with single sleeper, air conditioning, FM radio with USB, and a 70° hydraulically tiltable front section. The unit carries a 3500L dustbin and 800L water tank, designed for urban and municipal cleaning in markets where spare parts and service are critical. It is configured for right-hand drive and built for operation in regions with limited access to European or OEM service networks.
- Condition New
- Truck Model Sinotruk HOWO Street S
- Drive Wheel 4x2
- Dimensions L x W x H unloaded 6050 x 2200 x 2600 mm
- Wheelbase 3360 mm
Stock number held for this listing: 10048
Key Benefits
What This Unit Does Well
- CHAOCHAI CY4102BZQ engine is widely available in China, so filters, injectors and oil are easy to source locally
- WLY6T100 manual gearbox has a proven track record in light-duty sweepers, reducing repair complexity
- 3360mm wheelbase improves stability when the truck is turning with a full water tank
- 1880mm extended cab with sleeper allows for shift rotation on long cleaning routes
- 70° hydraulically tiltable front section gives access to the engine and radiator for maintenance without lifting the cab
- 3500L dustbin and 800L water tank support a full day of cleaning in medium-sized urban zones
Application Scenarios
Where It Is Used
- Daily street sweeping in a city with narrow roads and frequent traffic stops
- Cleaning of industrial zones with high dust and debris accumulation
- Municipal cleaning operations where the truck must operate for 8 hours with minimal downtime
- Urban routes where access to a dedicated service garage is limited and parts must be stocked locally
Fit
Who It Is For
- Municipal authorities procuring cleaning fleets for city operations in Africa and Southeast Asia
- Contractors managing public works projects requiring temporary cleaning support
- Machinery dealers stocking sweepers for resale in markets with limited OEM support
- Fleet managers replacing older sweepers and seeking a model with predictable spare parts availability
Buyer Pain
Problems It Solves
- Downtime caused by long lead times for OEM filters and injectors from Europe or Japan
- Trucks that are too large or underpowered for narrow urban streets and frequent stops
- Lack of sleeper accommodation on long cleaning shifts, leading to driver fatigue
- Inadequate water or dust capacity requiring multiple refills during a shift
- No access to technical support or spare parts after the initial warranty period
Engineering
Technical Features
- CHAOCHAI CY4102BZQ four-cylinder in-line diesel engine with water cooling, turbocharging and intercooling
- 4-stroke direct injection fuel system with EURO II emission standard
- WLY6T100 manual transmission with six forward gears and one reverse
- Hydraulic steering system with power assist for easier handling at low speed
- 7.00R16 radial steel tires on steel rims, seven pieces including one spare
- 1880mm extended cab with single sleeper, air conditioning, FM radio with USB
- 70° hydraulically tiltable front section for engine access
- 3500L capacity dustbin and 800L water tank for extended cleaning cycles
- 4x2 drive layout with front axle capacity 3000kg and rear axle 5000kg
Specification
Specification Table for This Listing
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Condition | New |
|---|---|
| Truck Model | Sinotruk HOWO Street Sweeper |
| Drive Wheel | 4x2 |
| Dimensions L x W x H unloaded | 6050 x 2200 x 2600 mm |
| Wheelbase | 3360 mm |
| Curb Weight | 4715 kg |
| Front Axle Capacity | 3000 kg |
| Rear Axle Capacity | 5000 kg |
| Engine Brand | CHAOCHAI |
| Engine Model | CY4102BZQ |
| Horsepower | 120 HP |
| Emission | EURO II |
| Fuel Type | Diesel |
| Transmission | WLY6T100, 6 forward / 1 reverse |
| Steering System | Hydraulic with power assist |
| Tyre | 7.00R16 radial steel |
| Tyre Count | 7 pieces including one spare |
| Cab | 1880mm extended, single sleeper, air conditioner |
| Cab Tilting | 70° hydraulically tiltable to front |
| Dustbin Capacity | 3500 L |
| Water Tank Capacity | 800 L |
| Cleaning Efficiency | >90% |
| Warranty | 1 year or 60,000 km (whichever comes first) |
| Transmission Type | Manual |
| Place of Origin | Shandong, China (Mainland) |
Materials
Materials and Build
- Welded steel chassis frame with anti-corrosion coating
- Steel cab shell with factory paint finish, white by default
- Cast steel front and rear axle housings
- 7.00R16 radial steel tires on steel rims
- Galvanised steel dustbin and water tank with internal baffles
Process
How an Order Is Handled
- You provide the city size, road type and cleaning frequency you need
- We match the available stock or build to your spec using the CHAOCHAI CY4102BZQ engine and WLY6T100 gearbox
- You confirm the final spec sheet, including cab colour, tyre brand and tank finish before deposit
- Unit is prepared, photographed and video recorded before loading
- We book RoRo or container shipment and issue export documents for customs clearance
Quality Control
Checks Before Loading
- Chassis, engine and gearbox numbers are photographed and matched to the approved spec sheet
- Engine start, gear engagement and hydraulic tilt function are tested and recorded on video
- Paint, glass and cab trim are checked for transport damage at the loading port
- Loading and lashing photos are sent before vessel departure
Customisation
What Can Be Changed
- Cab colour other than white
- Tyre brand and spare wheel count
- Water tank material (galvanised steel or stainless steel)
- Dustbin lining material (rubber or plastic)
- Additional lighting or warning signs for high-visibility operation
Honest Comparison
How It Compares With the Alternatives
| 6x4 sweeper | The 4x2 is lighter and more fuel-efficient on paved roads but has less traction on wet or uneven surfaces |
|---|---|
| EURO V emission sweeper | EURO II avoids urea and AdBlue systems, but cannot be used in markets requiring higher emission standards |
| Automatic transmission sweeper | Manual gearbox reduces purchase cost and maintenance complexity, but requires more driver skill in stop-start traffic |
Use Guide
Using It Well
- Replace fuel and oil filters at intervals recommended for CHAOCHAI CY4102BZQ engines
- Inspect the water tank and dustbin seals weekly to prevent leaks during operation
- Keep spare 7.00R16 tires and a basic tool kit on board for roadside repairs
- Order the clutch kit and hydraulic pump seal set with the truck to avoid delays in the first service
Photographs
More Views of This Unit
Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
Source Specification
Manufacturer Text We Hold for This Listing
china road street cleaning sweeper truck Cabin Driving type: 4x2 RHD 1880mm extended cab, with one sleeper and air conditioner, FM radio with USB 70°hydraulically tillable to the front. Main Dimensions Overall dimensions (L x W x H) 6050x2200x2600 mm Wheel base 3360 mm Weight in KGS Tare Weight 4715 kg Front/Rear axles loading capacity 3000/5000 kg Engine Brand CHAOCHAI CY4102BZQ Type 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement 3.856L Horse Power 120 HP Emission standard Euro II Gearbox WLY6T100 manual gear box with 6 forwards and 1 reverse Steering Hydraulic steering system with power assistant Tire 7.00R16 radial steel tire,7 pieces including one spare tire Tank Volume of dustbin: 3500 liters Volume of water tank: 800 liters Cleaning efficiency: >90% Warranty & After-sale Support Warranty: guarantee the main parts Engi
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
Related Listings
Other Cargo Trucks Buyers Compare With This
Cargo Trucks

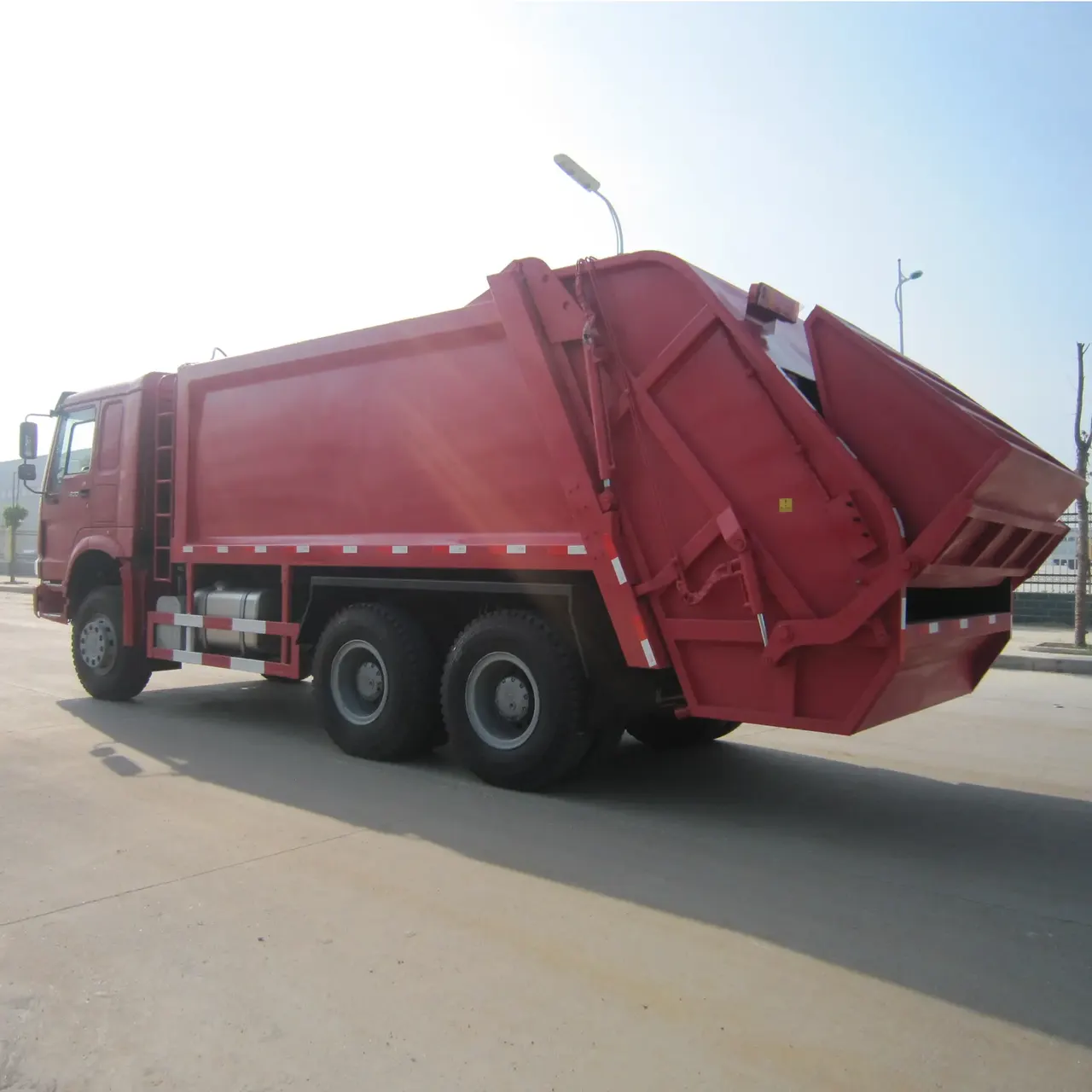

NEW! China Compressed Type Garbage Truck 6x4 16m3 Garbage Compactor Truck
