Cargo Trucks
Sinotruk Powered Platform Hand Truck
A 6x4 Sinotruk powered platform hand truck based on the F3000 cab with a single sleeper, electric windows, and factory air conditioning. It uses the WP10.300E22 300HP six-cylinder turbocharged diesel engine, paired with the RTD11509C manual gearbox, and runs on 12.00R20 tyres with a 400-litre fuel tank. The chassis has a 4375+1400mm wheelbase, 7500kg front axle, and 2x13000kg double-reduction rear axle. It is designed for heavy-duty cargo transport in mining, construction, and port operations where reliable parts and consistent performance are critical.
- Condition New
- Truck Model F3000
- Drive Wheel 6x4
- Dimensions L x W x H unloaded 10350 x 2496 x 3718 mm
- Wheelbase 4375+1400 mm
Stock number held for this listing: 10047
Key Benefits
What This Unit Does Well
- WP10.300E22 300HP engine is widely used across Sinotruk fleets, so filters, injectors, and oil are easy to source locally
- RTD11509C gearbox provides strong torque delivery for loaded hauls on steep grades and long hauls
- 4375+1400mm wheelbase improves stability when carrying heavy loads on uneven terrain
- 400-litre fuel tank supports continuous operation between refuelling points in remote areas
- Single sleeper cab with air conditioning and electric windows supports long shifts in hot climates
Application Scenarios
Where It Is Used
- Heavy cargo transport between a mine site and a processing plant on unpaved access roads
- Container handling at a port with limited paved yard space and frequent loading/unloading cycles
- Bulk material transport in construction zones where road surfaces are uneven and frequent stops are needed
- Long-distance hauls in desert or tropical regions where air conditioning and reliable cooling are essential
Fit
Who It Is For
- Fleet operators replacing older platform trucks with a standardised engine and transmission family
- Contractors needing a reliable platform truck that shares parts with other Sinotruk vehicles in their fleet
- Port operators managing high-volume cargo movement with limited maintenance support on-site
- Logistics companies sourcing trucks for remote operations where spare parts availability is a key risk
Buyer Pain
Problems It Solves
- Mixed fleets where every truck uses different engine and gearbox parts, increasing spare parts inventory
- Downtime caused by long lead times for diesel engine components from Europe or North America
- Trucks that lack sufficient torque or fuel capacity for sustained hauls in mining or construction zones
- Uncertainty over axle load ratings and chassis codes when applying for import permits or road access
Engineering
Technical Features
- WP10.300E22 water-cooled four-stroke six-cylinder in-line diesel engine with turbocharging and intercooling
- RTD11509C manual transmission with multiple forward gears and reverse
- ZF technology steering system for improved handling under load
- 7500kg front axle and 2x13000kg double-reduction rear axle in 6x4 drive layout
- Single sleeper cab with factory air conditioning, electric windows, and standard white paint finish
- 400-litre fuel tank with fuel level indicator and access for refuelling
- 12.00R20 tyres with 10 ply rating and one spare wheel included
Specification
Specification Table for This Listing
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Condition | New |
|---|---|
| Truck Model | F3000 |
| Drive Wheel | 6x4 |
| Dimensions L x W x H unloaded | 10350 x 2496 x 3718 mm |
| Wheelbase | 4375+1400 mm |
| Curb Weight | 10990 kg |
| Engine Model | WP10.300E22 |
| Horsepower | 300 HP |
| Fuel Type | Diesel |
| Fuel Tank Capacity | 400 L |
| Transmission | RTD11509C, manual |
| Steering System | ZF technology |
| Front Axle | 7500kg, Man 7.5T |
| Rear Axle | 2x13000kg, 13T Man double reduction |
| Tyre | 12.00R20 (10+1) |
| Cab | Single sleeper with air conditioner and electric windows |
| Max Driving Speed | 77 km/h |
| Approach Angle | 25° |
| Departure Angle | 13° |
| Front Overhang | 1450 mm |
| Rear Overhang | 1180 mm |
| Maker | WEICHAI |
| Transmission Type | Manual |
| Place of Origin | Shandong, China (Mainland) |
Materials
Materials and Build
- Welded steel ladder frame chassis in the F3000 series
- Steel cab shell with factory paint finish, white by default
- Cast steel front and rear axle housings
- 12.00R20 radial tyres on steel rims with 10 ply rating
- Steel fuel tank with anti-corrosion coating
Process
How an Order Is Handled
- You send the route profile, payload, and terrain type you will operate on
- We match a chassis code and axle ratio against what is available in stock or from the plant
- You confirm the final specification sheet including cab layout, colour, and tyre count before deposit
- Unit is prepared, photographed, and video recorded before loading
- We book RoRo or container shipment and issue the export documents your customs needs
Quality Control
Checks Before Loading
- Chassis, engine, and gearbox numbers are photographed and matched to the specification sheet you approved
- Engine start, gear engagement, and air system are recorded on video before loading
- Paint, glass, and cab trim are checked for transport damage at the loading port
- Loading and lashing photos are sent before the vessel departs
Customisation
What Can Be Changed
- Cab colour other than the default white
- Sleeper layout, single or double bunk
- Left hand or right hand drive as your registration requires
- Tyre brand and spare wheel count
- Additional tool box or fifth wheel height adjustment
Honest Comparison
How It Compares With the Alternatives
| 4x2 platform truck | The 6x4 carries more on the drive axles for loaded gradients but costs more fuel when running empty on good roads |
|---|
Use Guide
Using It Well
- Replace fuel and oil filters on the interval set for WP10 engines, not on a generic schedule
- Keep the air dryer cartridge stocked, humid coastal routes shorten its life
- Order the clutch plate and injector set with the truck so the first service does not wait on shipping

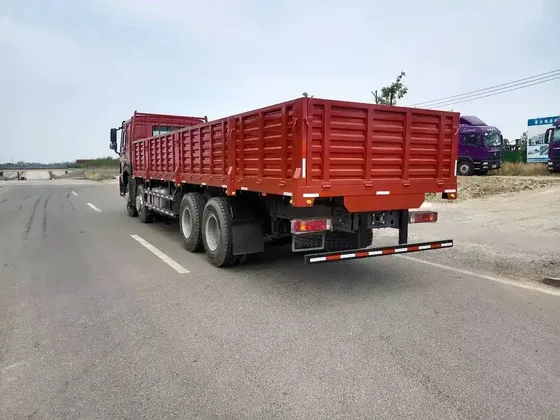

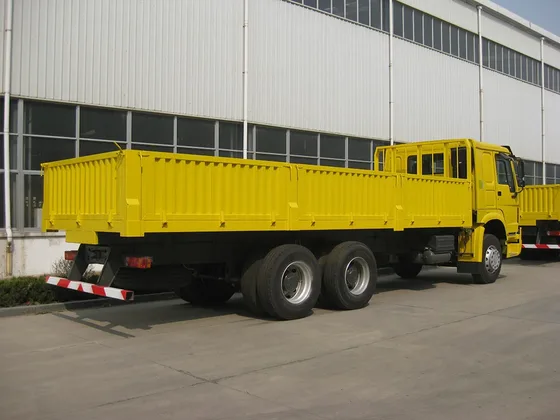

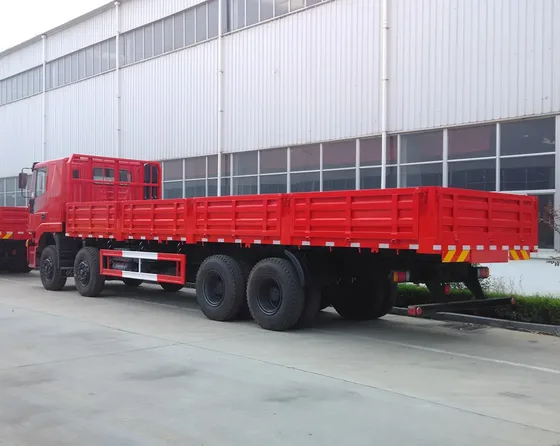

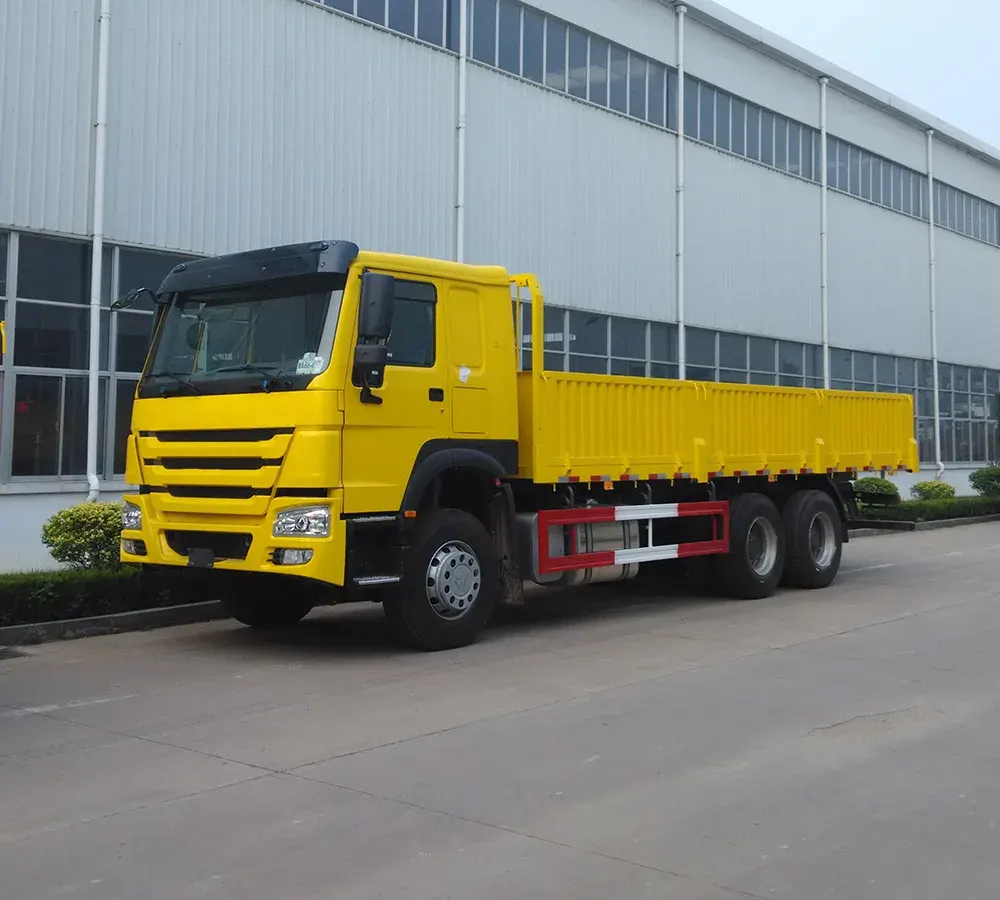

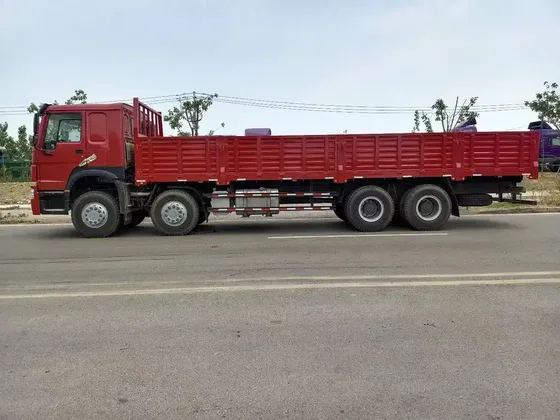

Photographs
More Views of This Unit
Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
Source Specification
Manufacturer Text We Hold for This Listing
Sinotruk powered platform hand truck abin F3000 cab, one sleeper, Electric window, with air conditioner Overall dimension LxWxH mm 10350x2496x3718mm Wheelbase 4375+1400mm Curb Weight Kg 10990 Approach/Departure angle 25/13 Front/Rear overhang mm 1450/1180 Engine Model WP10.300E22 Type l 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling,turbo-charging and inter cooling Maximum output 300Hp/221kw Emission standard Euro-2 emission standard Displacement (ML) 9726 Maker WEICHAI Gearbox RTD11509C Front Axle 7500kg, Man 7.5T Driving Axle 2x13000kg, 13T Man double reduction axle Steering ZF technology Oil Tank 400L Tire 12.00R20 (10+1) Max. Driving Speed Km/h 77
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
