Truck Parts

MC13 13L Diesel Engine for Truck

A 6-cylinder, 13L MC13.48 and MC13.54 diesel engine assembly with electronically controlled common-rail injection, rated at 353kW/480HP and 397kW/540HP, designed for heavy-duty trucks. It features orthostichous, water-cooled, four-stroke operation with intercooling, a bore and stroke of 126x166mm, and a displacement of 12.419L. The engine is available in EURO 3 to EURO 5 emission levels, with a net weight of 975kg and noise level ≤94dB(A). It is used in Sinotruk HOWO trucks and other heavy commercial vehicles.

  • Type EngineAssembly
  • Model Number MC13.48, MC13.54
  • Cylinders 6
  • Bore x Stroke 126 x 166 mm
  • Displacement 12.419 L
Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 10092

Close-up of MC13 diesel engine with valve stem seal sleeve and mounting flanges
Close-up of MC13 diesel engine with valve stem seal sleeve and mounting flanges
Key Benefits

What This Unit Does Well

  • Electronically controlled common-rail injection ensures precise fuel delivery and better combustion efficiency
  • 13L displacement provides high torque output for heavy haulage and sustained gradients
  • Available in both MC13.48 (353kW/480HP) and MC13.54 (397kW/540HP) variants to match different load profiles
  • Intercooled design improves air density and engine efficiency under high load
  • EURO 3 to EURO 5 emission compliance allows use in markets with varying environmental regulations
  • 975kg net weight balances power density and structural integration in truck chassis
Application Scenarios

Where It Is Used

  • Long-haul freight transport in Africa and Central Asia where sustained torque and reliability are critical
  • Mining and quarry operations requiring continuous high-power output under dusty and high-temperature conditions
  • Oil and gas transport fleets operating in remote regions with limited maintenance support
  • Heavy construction projects using dump trucks and haul trucks that need consistent engine performance
Fit

Who It Is For

  • Fleet owners replacing older engines in HOWO or similar trucks with a proven, high-torque powerplant
  • Contractors sourcing engines for truck rebuilds or fleet upgrades where spare parts availability is essential
  • Machinery dealers stocking engines for resale in markets with high demand for heavy-duty trucks
  • Procurement teams sourcing engines that match specific emission standards for import compliance
Buyer Pain

Problems It Solves

  • Inconsistent engine performance from mismatched or non-OEM powerplants in rebuilt trucks
  • Downtime caused by lack of compatible injectors, seals, or control modules for older engine types
  • Uncertainty over emission compliance when importing engines into countries with strict environmental rules
  • Difficulty sourcing high-torque engines that match the original fitment in existing truck chassis
Engineering

Technical Features

  • 6-cylinder, orthostichous, water-cooled, four-stroke, inter-cooled diesel engine
  • Electronically controlled common-rail fuel injection system
  • Cylinder bore x stroke: 126 x 166 mm
  • Displacement: 12.419L
  • Rated power: 353kW / 480HP (MC13.48), 397kW / 540HP (MC13.54)
  • Rated speed: 1900 rpm
  • Maximum torque: 2300 N·m (MC13.48), 2500 N·m (MC13.54)
  • Maximum torque speed: 1050-1350 rpm
  • Minimum specific fuel consumption: 186 g/kW·h
  • Noise level: ≤94 dB(A) at 1m
  • Net weight: 975 kg
  • Emission level: EURO 3 to EURO 5
Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

TypeEngineAssembly
Model NumberMC13.48, MC13.54
Cylinders6
Bore x Stroke126 x 166 mm
Displacement12.419 L
Rated Power353kW / 480HP (MC13.48), 397kW / 540HP (MC13.54)
Rated Speed1900 rpm
Max Torque2300 N·m (MC13.48), 2500 N·m (MC13.54)
Max Torque Speed1050-1350 rpm
Fuel SystemElectronically controlled common-rail
CoolingWater-cooled
Stroke TypeFour-stroke
IntercoolingYes
Emission LevelEURO 3 to EURO 5
Noise Level≤94 dB(A)
Net Weight975 kg
Assembly Model NumberMC13
Materials

Materials and Build

  • Cast iron cylinder block with machined water jacket and oil passages
  • Aluminum alloy cylinder head with integrated intake and exhaust manifolds
  • Steel crankshaft with precision-balanced counterweights
  • Steel connecting rods with high-strength bolts
  • Common-rail fuel system with high-pressure pump and injectors
  • Intercooler core made of aluminum with plastic end tanks
Process

How an Order Is Handled

  • You confirm the model variant (MC13.48 or MC13.54) and emission level required
  • We check stock availability and provide a photo of the engine with serial number and mounting flanges
  • You confirm the final specification and payment terms before shipment
  • Engine is prepared, cleaned, and tested under load before packaging
  • We arrange sea freight or air shipment and provide tracking and export documentation
Quality Control

Checks Before Loading

  • Engine serial number is cross-checked against the specification sheet before shipment
  • All mounting flanges and bolt holes are inspected for damage or deformation
  • Fuel system and injection pump are tested under load to verify pressure and timing
  • Noise level is measured at 1m distance to confirm ≤94dB(A)
  • Packaging includes anti-corrosion film, foam padding, and steel strapping for sea transport
Customisation

What Can Be Changed

  • Engine can be supplied with or without ECU, depending on your fitment requirements
  • Mounting flanges can be adjusted for compatibility with different truck chassis
  • Oil and coolant filters can be included as part of the delivery package
  • Optional installation of a pre-lubrication pump for first-time start-up
Use Guide

Using It Well

  • Inspect all mounting bolts and gaskets before installation to prevent leaks
  • Prime the fuel system with clean diesel before first start-up to avoid air lock
  • Use only OEM-approved oil and coolant types to maintain warranty and performance
  • Check ECU settings and injection timing after installation to match vehicle calibration
Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

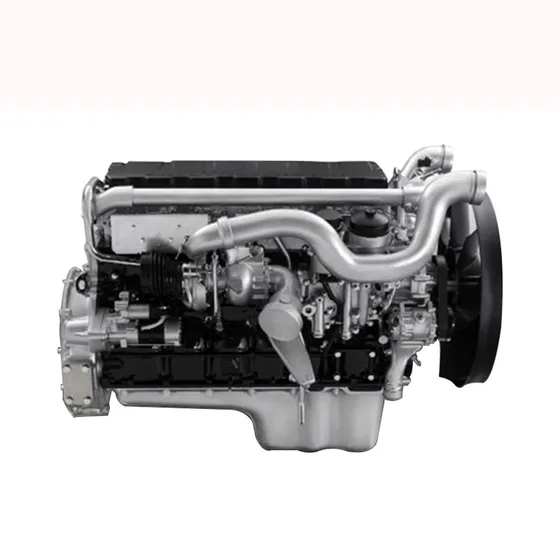

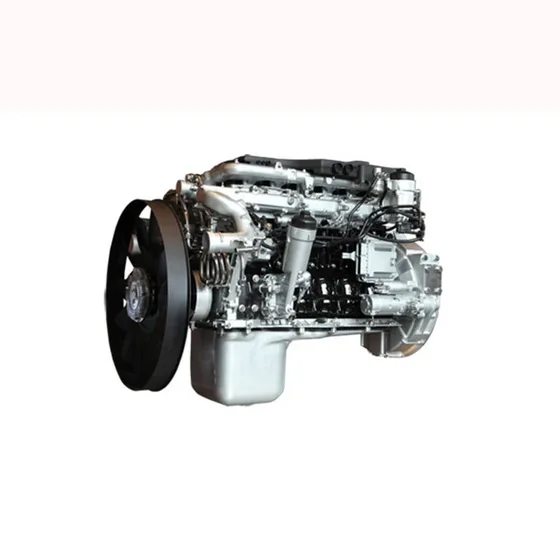

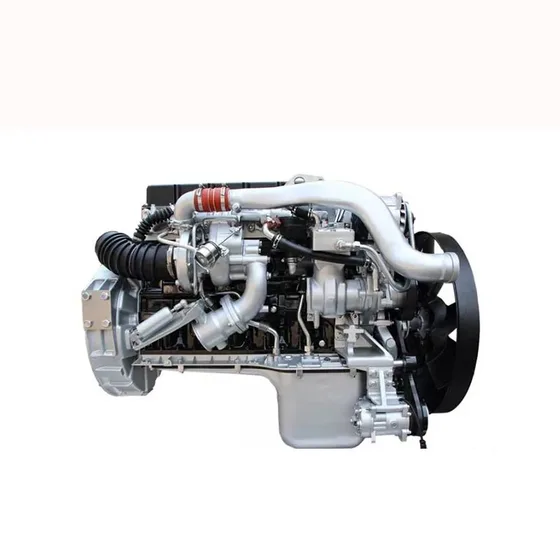

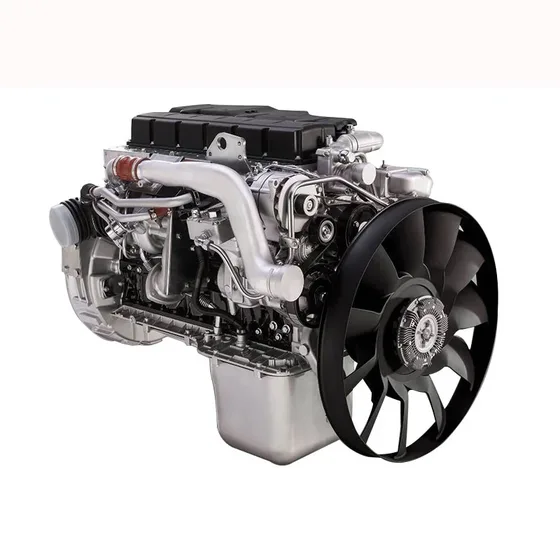

Side view of MC13 engine showing cylinder head and fuel injection pumpFront view of MC13 engine with intake and exhaust manifoldsRear view of MC13 engine with flywheel housing and mounting boltsTop-down view of MC13 engine with ECU and sensor connectors
Source Specification

Manufacturer Text We Hold for This Listing

MC13 13L diesel engine for truck Model MC13.48 MC13.54 Injection system Electronically controlled common-rail Type Orthostichous,water-cooling,four-stroke,inter-cooling Cylinder borexstroke (mmxmm) 126x166 Number of cylinders 6 Valve number in each cylinder 4 Diesel engine capacity L 12.419 Rated power kW/Ps 353/480 397/540 Rated speed r/min 1900 Maximum torque N·m 2300 2500 Maximum torque speed 1050~1350 Minimum specific fuel consumption g/kW•h 186 Noise(1m SPL)db(A) ≤94 Net weight kg 975 Emission level Euro 3-Euro 5

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.

Related Listings

Other Truck Parts Buyers Compare With This

All 4 Truck Parts Full product index

Buyer Questions

Questions About This Unit

Is this engine new or used

All engines are new, factory-built and supplied with original serial numbers. We do not offer used or rebuilt units.

What is the lead time

Stock engines can be shipped within 5-7 business days. Custom orders depend on production schedule and are confirmed in writing with the proforma invoice.

Can you supply spare parts for this engine

Yes. We supply injectors, fuel pumps, seals, gaskets, and ECU modules for the MC13 series. These can be consolidated with the engine order.

Do you ship by container or air

We ship by sea container for bulk orders. Air freight is available for urgent parts, but the engine is too heavy for standard air cargo.

What documents do I get for customs

Commercial invoice, packing list, bill of lading, certificate of origin, and test report are provided. Additional documents can be arranged upon request.
