Electric Cars and Light EVs

4x4 Wheel Drive Forklift Rough Terrain Forklift Truck 3ton 3.5 Ton 5ton 6ton Offroad Forklift

A 4x4 electric forklift truck with 3ton to 6ton capacity, designed for rough terrain and off-road use. Models include CPD10, CPD15, CPD25, and CPD30, with machine weights from 1660kg to 3800kg and lifting heights of 3m. Powered by 60V AC or DC systems, with drive motors ranging from 2500W to 10kW and battery packs of 70A 4 to 10 sets. Equipped with hydraulic assist steering and oil brakes, it operates at speeds up to 13km/h no load and 12km/h full load, with a minimum turning radius up to 2700mm.

Condition New
Steering Right
Color red,green,yellow,
Month 1
Type Sedan

Ask for a Price on WhatsApp Email the Specification

Stock number held for this listing: 11507-1-1-1-2

Red 4x4 electric forklift on a gravel yard, front view with forks raised

Key Benefits

What This Unit Does Well

4x4 drive system provides traction on uneven, muddy or gravel surfaces common in construction and mining sites
Electric powertrain eliminates fuel cost and reduces emissions in enclosed or sensitive environments
AC drive motors offer higher efficiency and longer life compared to older DC systems
Standard 3m lifting height meets most warehouse and loading dock requirements
Hydraulic assist steering reduces operator fatigue during prolonged use
Oil brakes provide consistent stopping power under heavy load and repeated use

Application Scenarios

Where It Is Used

Material handling in open-pit mining operations with unprepared ground and steep gradients
Loading and unloading at remote construction sites without paved access roads
Warehouse operations in industrial yards with loose gravel or uneven concrete floors
Offshore platform or port terminal logistics where diesel engines are restricted
Maintenance depots in remote regions where fuel supply is unreliable or expensive

Fit

Who It Is For

Contractors managing site logistics in rugged terrain with limited road access
Mining companies needing reliable material transfer between pits and processing areas
Port operators handling containers on unpaved or soft ground areas
Government or military logistics teams requiring off-road material handling in remote zones
Fleet managers standardizing on electric forklifts to reduce fuel and maintenance costs

Buyer Pain

Problems It Solves

Downtime caused by diesel forklifts failing on muddy or steep terrain due to poor traction
High fuel and maintenance costs in remote locations where diesel supply is inconsistent
Excessive noise and emissions in enclosed or environmentally sensitive areas
Inconsistent braking performance under heavy load with older mechanical brake systems
Lack of standard lifting height and power in non-4x4 electric forklifts for off-road use

Engineering

Technical Features

4x4 wheel drive system with front and rear axles driven independently
Electric powertrain with 60V rated voltage and AC or DC power units
2500W to 10kW AC drive motors for high torque and consistent performance
Hydraulic assist steering system for reduced effort at low speed
Oil brake system on all models for reliable stopping under load
Lifting height of 3m with full load lifting speed of 180mm/s and no load speed of 280mm/s
Fork length of 1070mm standard across all models
No load driving speed up to 13km/h and full load speed up to 12km/h
Minimum turning radius up to 2700mm depending on model

Specification

Specification Table for This Listing

Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.

Specification of 4x4 Wheel Drive Forklift Rough Terrain Forklift Truck 3ton 3.5 Ton 5ton 6ton Offroad Forklift
Condition	New
Steering	Right
Color	red,green,yellow,
Month	1
Type	Sedan
Year	2013
Fuel	ELECTRIC
Model	eone-S03
Drive	RWD
Capacity	3ton, 3.5ton, 5ton, 6ton
Drive Type	4x4
Power Source	Electric
Rated Voltage	60V
Battery	70A 4sets to 10sets
Drive Motor	2500W AC to 10kW AC
Power Unit	1500W DC to 7.5kW AC
Braking Method	Oil brake
Lifting Height	3m
No Load Lifting Speed	280mm/s
Full Load Lifting Speed	180mm/s
No Load Driving Speed	12km/h to 13km/h
Full Load Driving Speed	11km/h to 12km/h
Minimum Turning Radius	2200mm to 2700mm
Wheelbase	1300mm to 1680mm
Front Wheel Track	1010mm to 1050mm
Rear Wheel Track	930mm to 950mm

Materials

Materials and Build

Steel frame and chassis with welded construction for durability on rough terrain
AC drive motors with sealed windings for dust and moisture resistance
Oil brake system with sealed hydraulic lines to prevent contamination
Hydraulic steering system with high-pressure hoses and fittings
Rubber-tired wheels with reinforced rims for off-road use

Process

How an Order Is Handled

You specify the model, capacity, lifting height, and terrain conditions you will operate in
We confirm availability of the CPD10 to CPD30 model with matching battery and motor specs
You confirm the final configuration including colour, fork length, and tyre size before deposit
Unit is prepared, tested, and photographed before loading for shipment
We book shipping via container or RoRo and issue export documents required by your customs

Quality Control

Checks Before Loading

All components are inspected at raw material, assembly, and final stage
Drive motor, battery, and brake systems tested under load before packing
Final unit tested for lifting, steering, braking, and driving performance
Photos and video of final test and loading are sent before shipment departure

Customisation

What Can Be Changed

Color choice: red, green, or yellow as standard
Fork length adjustment beyond 1070mm upon request
Tyre size change for specific terrain conditions
Battery pack configuration to match site power availability
Optional fifth wheel or attachment mounting points for special tools

Honest Comparison

How It Compares With the Alternatives

2x4 electric forklift	The 4x4 model has better traction and stability on soft or uneven ground but is heavier and uses more battery power
Diesel-powered rough terrain forklift	Electric units have lower operating cost and no emissions but require charging infrastructure and have shorter continuous run time
Higher capacity 8ton forklift	This 6ton model is lighter and more maneuverable, but cannot lift heavier loads than the 8ton variant

Use Guide

Using It Well

Perform a full battery charge before first use and check all connections
Clean undercarriage and wheels after each shift in dusty or muddy environments
Use only approved battery chargers to prevent overcharging and cell damage
Avoid sudden braking on steep grades to prevent rear axle instability

Photographs

More Views of This Unit

Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.

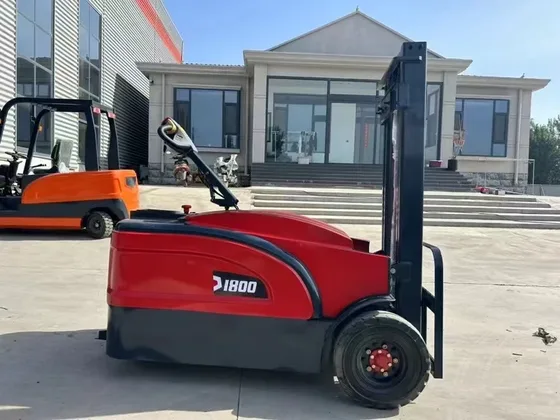

Side view of the forklift showing 4x4 drive wheels and hydraulic steering

Rear view with oil brake system and rear tyre detail

Cab interior with control panel and steering wheel

Fork lift mechanism with 3m lifting height and hydraulic cylinder

Battery pack under the chassis with 70A 10set configuration

Front axle and front tyre detail with 650-10 size

Source Specification

Manufacturer Text We Hold for This Listing

4x4 wheel drive forklift rough terrain forklift truck 3ton 3.5 ton 5ton 6ton offroad forklift Model CPD10 CPD15 CPD25 CPD30 Machine weight 1660kg 2150kg 3600kg 3800kg Machine Size 2000*1120*2150mm 2000*1200*2150mm 2430*1200*2200mm 2500*1200*2200mm Tyre size front 500-8/ rear 400-8 front 650-10/ rear 500-8 front 650-10/ rear 500-8 front 650-10/ rear 500-8 Battery 70A 4sets 70A 5sets 70A 10sets 70A 10sets Drive motor 2500W AC 2500W AC 7500W AC 10kw AC Power unit 1500W DC 4000W AC 7500W AC 7.5kw AC Braking method oil brake oil brake oil brake oil brake Lifting height 3m 3m 3m 3m Rated voltage 60V 60V 60V 60V Wheelbase 1300mm 1380mm 1580mm/1680mm 1680mm Steering method Hydraulic assist Hydraulic assist Hydraulic assist Hydraulic assist No load driving speed 12km/h 13km/h 13km/h 13km/h Full load driving speed 11km/h 12km/h 12km/h 12km/h No load lifting speed 280mm/s 280mm/s 280mm/s 280mm/s Fu

Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
