Concrete Mixer Trucks
8cbm Chinese Truck Concrete Mixer Truck with Cheap Price
- ConditionNew
- Warranty12Months
- CabHOWO70(NObed)withAircondit
Concrete Mixer Trucks
12 Cubic Meters Self Loading Concrete Mixer Truck Dimensions
A 12 cubic meter self-loading concrete mixer truck built on the CLW5313GJBB3 chassis with an 8x4 drive layout, four axles, and a 1800+3600+1350 mm wheelbase. It features a 10CBM effective mixer drum made from 16MnQ345 steel, powered by a 9726ml/338HP diesel engine, and equipped with an Italian-imported hydraulic pump and gearbox. The unit has a 400L water tank and operates at a maximum speed of 80km/h under EURO 3 emission standards. It is designed for long-haul concrete transport where consistent mix quality and reliable discharge are required.
- Truck Model CLW5313GJBB3
- Drive Type 8x4
- Number of Axles 4
- Wheelbase 1800+3600+1350 mm
- Overall Dimensions L x W x H 11975 x 2500 x 4000 mm
Stock number held for this listing: 10042
Key Benefits
What This Unit Does Well
- 10CBM effective drum capacity ensures high output per load without exceeding legal GVW limits
- Italian-imported hydraulic pump and gearbox provide stable rotation and consistent mixing at 0-12 rpm
- 400L water tank supports full discharge cycles and reduces need for on-site water access
- 8x4 drive layout and four axles distribute weight evenly across rough construction site roads
- EURO 3 emission standard avoids AdBlue dependency, suitable for markets without urea infrastructure
- Filling speed of ≥2.8 m3/min and unloading speed of ≥1.2 m3/min maintain tight construction schedules
Application Scenarios
Where It Is Used
- Long-distance transport of ready-mix concrete between a batching plant and a remote construction site on unpaved access roads
- Urban infrastructure work where tight delivery windows demand reliable discharge within 10 minutes
- Projects in regions with limited access to water supply, relying on the 400L onboard tank for full discharge
Fit
Who It Is For
- Construction contractors managing multiple site deliveries with tight timelines
- Municipal or government engineering teams procuring reliable, low-maintenance mixers for public works
- Machinery dealers stocking mixers for resale in Southeast Asia, Africa and the Middle East
- Fleet operators standardizing on one chassis and drum configuration to reduce spare parts complexity
Buyer Pain
Problems It Solves
- Concrete stratification and premature setting during long hauls due to inconsistent drum rotation
- Delays caused by on-site water shortages during discharge, leading to incomplete unloading
- High downtime from hydraulic system failures due to non-robust pumps not rated for continuous mixing
- Inconsistent discharge residue above 0.5% causing material waste and rework on critical pours
- Lack of spare parts availability for imported components in remote or emerging markets
Engineering
Technical Features
- CLW5313GJBB3 chassis with 8x4 drive layout and four axles
- Wheelbase of 1800+3600+1350 mm for stability during mixing and transport
- 10CBM effective mixer drum made from 16MnQ345 steel with 0-12 rpm rotation speed
- Italian-imported hydraulic pump and gearbox for reliable and consistent drum rotation
- 9726ml/338HP diesel engine with EURO 3 emission standard
- 400L water tank with air pressure water supply system for full discharge cycles
- Linkage operation control system for manual drum rotation and discharge
- 11.00-20 18PR tires on 12 wheels plus one spare, suitable for mixed terrain
- Maximum speed of 80km/h for highway transport between batching plants and sites
- Cab with space for up to three passengers, suitable for driver and two assistants
Specification
Specification Table for This Listing
Taken from the supplier specification we hold. Anything not listed here is confirmed in writing before order rather than assumed.
| Truck Model | CLW5313GJBB3 |
|---|---|
| Drive Type | 8x4 |
| Number of Axles | 4 |
| Wheelbase | 1800+3600+1350 mm |
| Overall Dimensions L x W x H | 11975 x 2500 x 4000 mm |
| Tire Specification | 11.00-20 18PR |
| Number of Tires | 12+1 |
| Curb Weight | Not specified |
| Gross Vehicle Weight | Not specified |
| Engine Model | Not specified |
| Engine Displacement | 9726 ml |
| Engine Power | 338 HP |
| Emission Standard | EURO 3 |
| Fuel Type | Diesel |
| Max Speed | 80 km/h |
| Mixer Drum Effective Cubage | 10 CBM |
| Mixer Drum Material | 16MnQ345 |
| Mixer Drum Rotation Speed | 0~12 rpm |
| Filling Speed | ≥ 2.8 m3/min |
| Unloading Speed | ≥ 1.2 m3/min |
| Discharge Residue Rate | ≤ 0.5% |
| Water Tank Volume | 400 L |
| Water Supply System | Air pressure |
| Operating System | Linkage operation |
| Cab Passenger Capacity | 3 |
| Place of Origin | Shandong, China (Mainland) |
Materials
Materials and Build
- 16MnQ345 steel for the mixer drum, resistant to wear and impact during continuous rotation
- Welded steel chassis frame with 8x4 drive configuration for load distribution
- Cast steel axle housings and forged axle shafts for durability under heavy loads
- 11.00-20 18PR radial tires on steel rims, suitable for mixed road and off-road use
- Factory-painted steel cab shell with standard white finish, designed for long-term exposure
Process
How an Order Is Handled
- You provide the project location, haul distance, and typical site access conditions
- We confirm the CLW5313GJBB3 chassis availability and match the drum and hydraulic system to your load profile
- You review the final spec sheet including drum material, water tank size, and cab configuration before deposit
- Unit is prepared, tested for drum rotation and water discharge, and photographed before loading
- We book RoRo or container shipment and issue export documents including commercial invoice and bill of lading
Quality Control
Checks Before Loading
- Drum rotation speed and water discharge are tested and recorded on video before loading
- Hydraulic pump and gearbox are checked for leaks and proper torque during operation
- Tire pressure, wheel nut torque, and suspension components are inspected at the yard
- Chassis number, engine number, and drum serial are photographed and matched to the spec sheet
Customisation
What Can Be Changed
- Drum capacity adjustment within 8m3 to 16m3 range based on project needs
- Cab colour other than standard white
- Left-hand or right-hand drive configuration to match local road rules
- Additional water tank or auxiliary cooling system for hot climates
- Tyre brand and spare wheel count as per site conditions
- Custom linkage or electronic control system for drum operation
Honest Comparison
How It Compares With the Alternatives
| 6x4 mixer truck | The 8x4 layout handles heavier loads on soft ground and reduces axle wear, but uses more fuel on paved roads |
|---|---|
| 10CBM mixer with domestic hydraulic system | The Italian-imported pump offers longer service life and fewer failures under continuous operation |
Use Guide
Using It Well
- Inspect water tank and air pressure lines weekly in humid environments to prevent corrosion
- Keep the drum rotation system lubricated with grease at the drive coupling and gearbox joints
- Order the drum liner, hydraulic pump seal kit, and water pump with the truck to avoid delays in first service

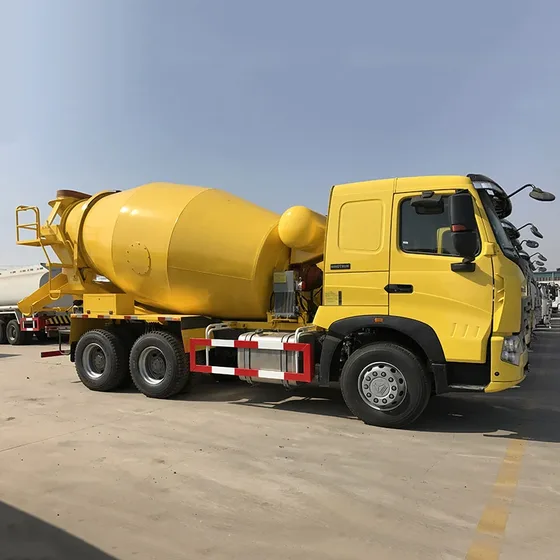

Photographs
More Views of This Unit
Photographs held for this listing. Current yard photographs of the specific unit you shortlist are taken fresh before any balance is paid.
Source Specification
Manufacturer Text We Hold for This Listing
12 cubic meters self loading concrete mixer truck dimensions Product Concrete mixer truck Vehicle model CLW5313GJBB3 Chassis parameters Overall dimensions mm 11975X2500X4000 Wheelbase mm 1800+3600+1350 Drive type 8*4 Number of axles 4 Tire specification 11.00-20 18PR Number of Tires 12+1 Allowable passengers in cab 3 Engine Engine model *********** Type of fuel Diesel Displacement/power ml/hp 9726/338 Max speed Km/h 80 Emission standard(TAS) EURO 3 Mixer Body Effective cubage:10CBM Material: 16MnQ345 Equipment: Motor, hydraulic pump, gear box imported from Italy. Filling speed (M3/min) ≥ 2.8 Unloading speed (M3/min)≥ 1.2 Discharge reside rat( %)≤ 0.5 Mixer drum rotation speed(rpm) 0~12 Water supply system Tank volume: 400L Air pressure water supply Operating system Model:linkage operation The Concrete mixer truck hydraulic pump mainly applies to long-distance mixing transport of concrete
Reproduced from the supplier specification. Figures are confirmed in writing on the proforma invoice before any deposit.
